3�5�5�- MEASURING THREE-PHASE NETWORKS WITH A 3-WIRE CONNECTION, CVM-C11-MC-IN-
485-ICT2 MODEL
Note: Do not connect MC current transformers to ground.
18
Measurement system:
U U U
L1 L2 L3
a b a
b
A B A B
L1
L2
L3
CARGA /LOAD

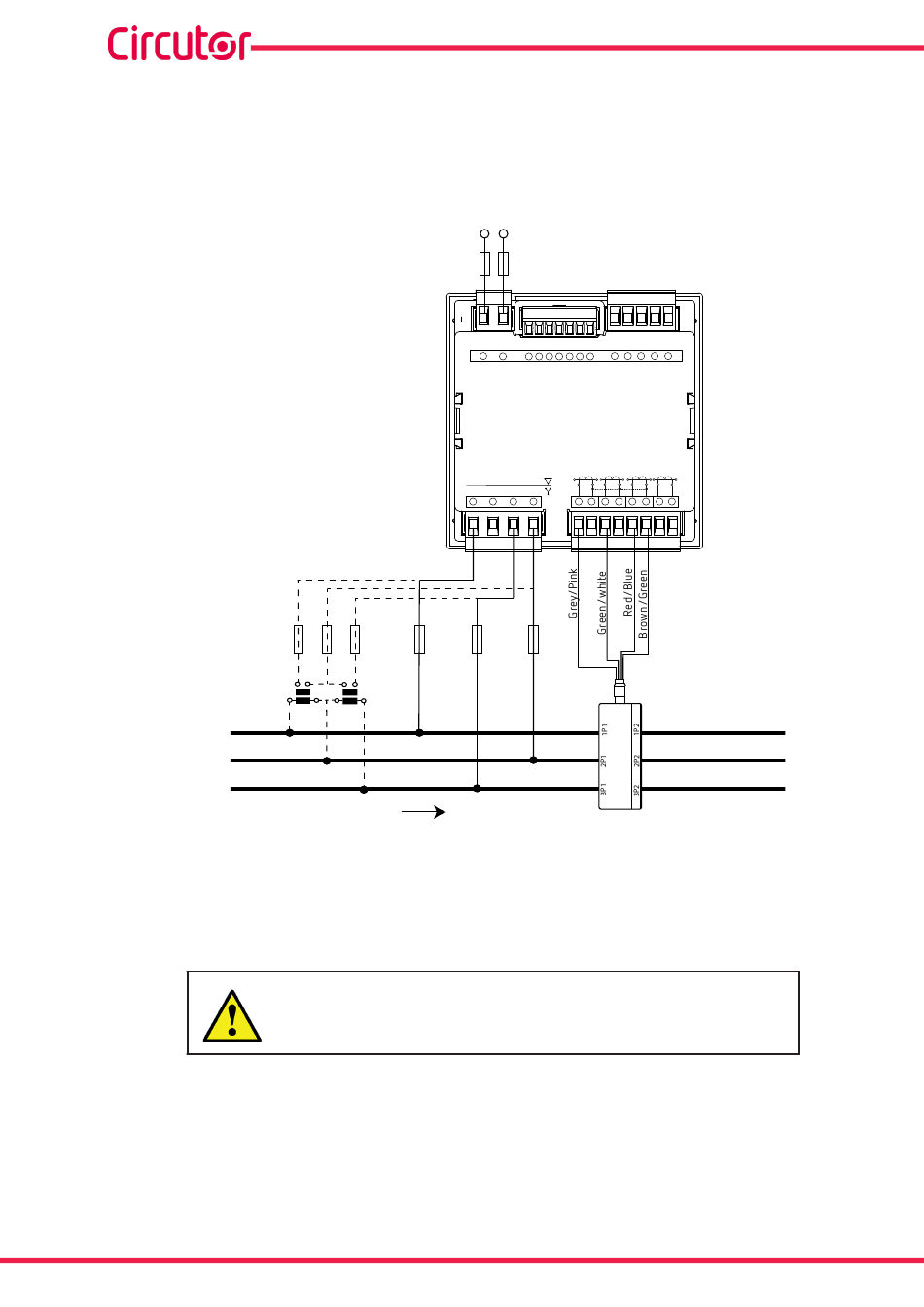

Figure 8: Three-Phase measuring with a 3-wire connection (CVM-C11-MC-IN-485-ICT2)�
The MC transformer secondary value is set to 0.250 A (fixed value).
3-3Ph
