3�4�- DEVICE TERMINALS
3�4�1�- CVM-C11-ITF-IN-485-ICT2 AND CVM-C11-MC-IN-485-ICT2 MODELS

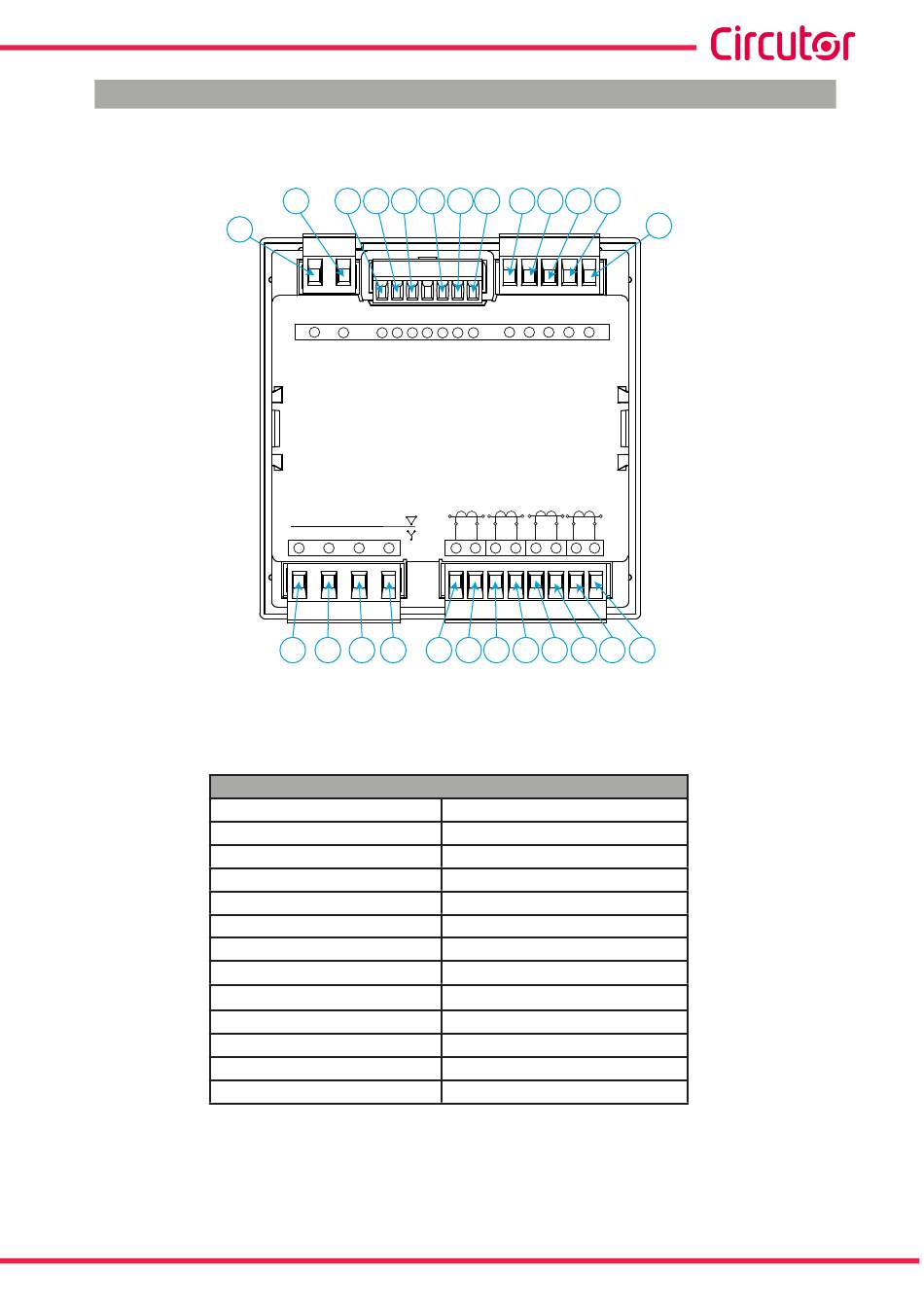

Figure 1: CVM-C11-ITF-IN-485-ICT2 and CVM-C11-MC-IN-485-ICT2 terminals�
Table 4: List of terminals of the CVM-C11-ITF-IN-485-ICT2 and CVM-C11-MC-IN-485-ICT2�
1 : A1(+), Power supply
2 : A2(-), Power supply
3 : ROC, Common relay output
4 : RO1, Relay output 1
5 : RO2, Relay output 2
6 : DOC, Common digital outputs
7 : DO1, Digital output 1
8 : DO2, Digital output 2
9 : DIC, Common digital inputs
10 : DI1, Digital input 1
11 : DI2, Digital input 2
12 : A(+), RS-485
13 : B(-), RS-485
Instruction Manual
2 4
3 5
1
POWER SUPPLY
A2(-)
A1(+) R0C R01 R02
U
U U
L1
L3 L2
U U U N
L1 L2 L3
14 16 17
15
Device terminals
8
6 7 9 10 11 12
OUTPUTS INPUTS RS-485
D0C D01 D02 DIC DI1 DI2 A(+) B(-)
P1 P2 P1 P2 P1 P2 P1
IL2 IN
IL3
IL1
S1
S1 S2 S1 S2 S1 S2
18 19 20 21 22 23 24 25
14 : U Voltage input L1
L1,
15 : U Voltage input L2
L2,
16 : U Voltage input L3
L3,
17 : N, Neutral / U Voltage input L2
L2,
18 : S1 IL1, Current input L1
19 : S2 IL1, Current input L1
20 : S1 IL2, Current input L2
21 : S2 IL2, Current input L2
22 : S1 IL3, Current input L3
23 : S2 IL3, Current input L3
24 : S1 IN, Current input N
25 : S2 IN, Current input N
