CVM-C11

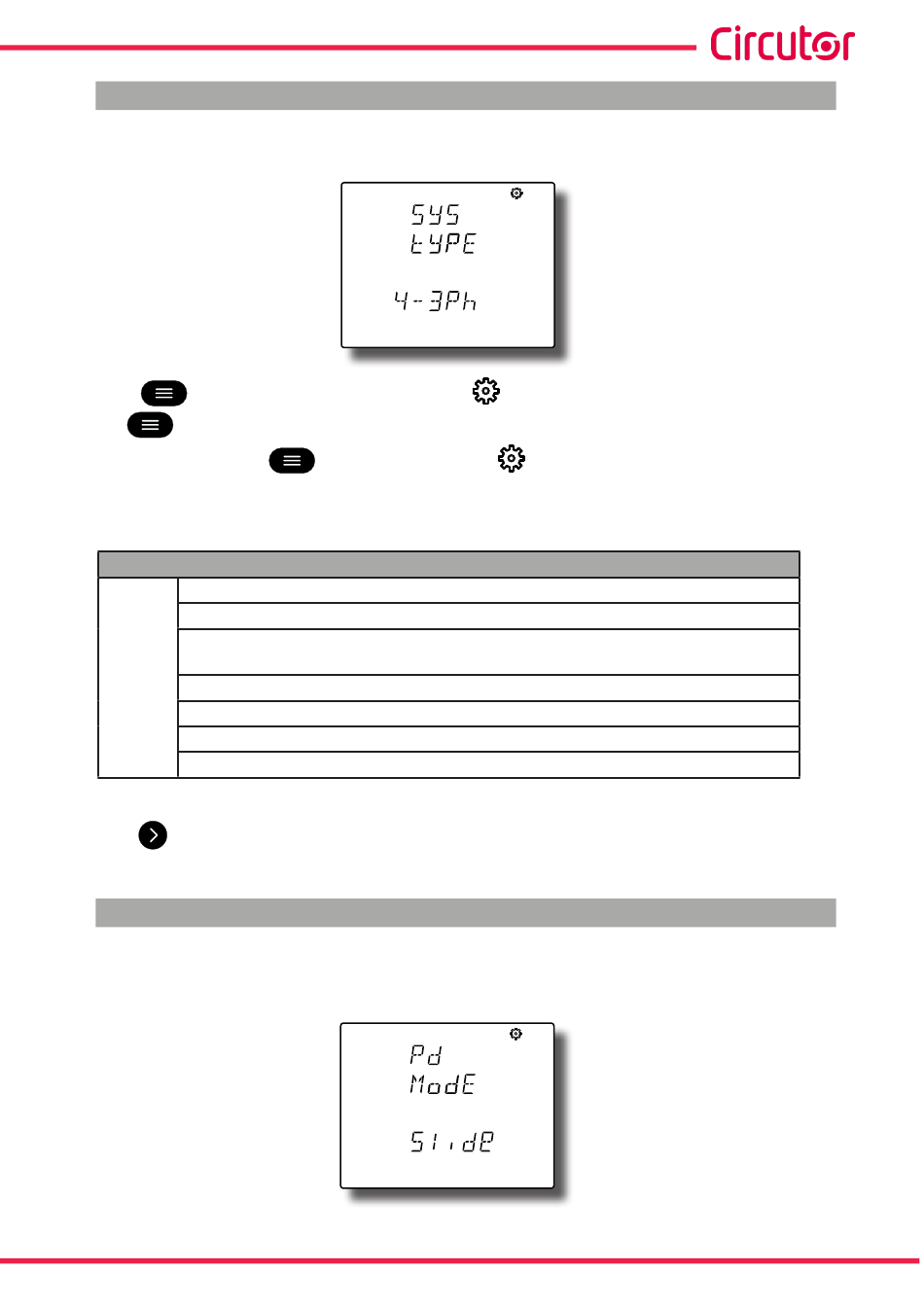

6�9�- TYPE OF INSTALLATION
The type of installation is selected on this screen.
Press key
for 3 seconds to edit the value. The
The key
jumps between the possible options.
To validate the data, press
Configuration values
4-3Ph Three-phase network measurement with a 4-wire connection.
3-3Ph Three-phase network measurement with a 3-wire connection.
3-AroN Three-phase network measurement with a 3-wire connection and transformers
with an ARON connection.
Possible
values
3-2Ph Two-phase network measurement with a 3-wire connection.
2-2Ph Single-phase network measurement, phase to phase, with a 2-wire connection.
2-1Ph Single-phase network measurement, phase to neutral, with a 2-wire connection.
3-3IT Measuring Three-Phase Networks with a 3-wire and earth connection
(7)
Installation available from version C11.1005.230119 of the device.
Press key
to access the next programming step.
6�10�- TYPE OF INTEGRATION OF THE MAXIMUM DEMAND
In this screen, the type of integration to be used for the calculation of the maximum demand is
selected. See
"4.1.2.- MAXIMUM DEMAND"
Instruction Manual
for 3 seconds and the
Table 30:Configuration values: Type of installation�
Type of installation
�
icon appears at the top of the screen.
icon will disappear from the display.
(7)
63
