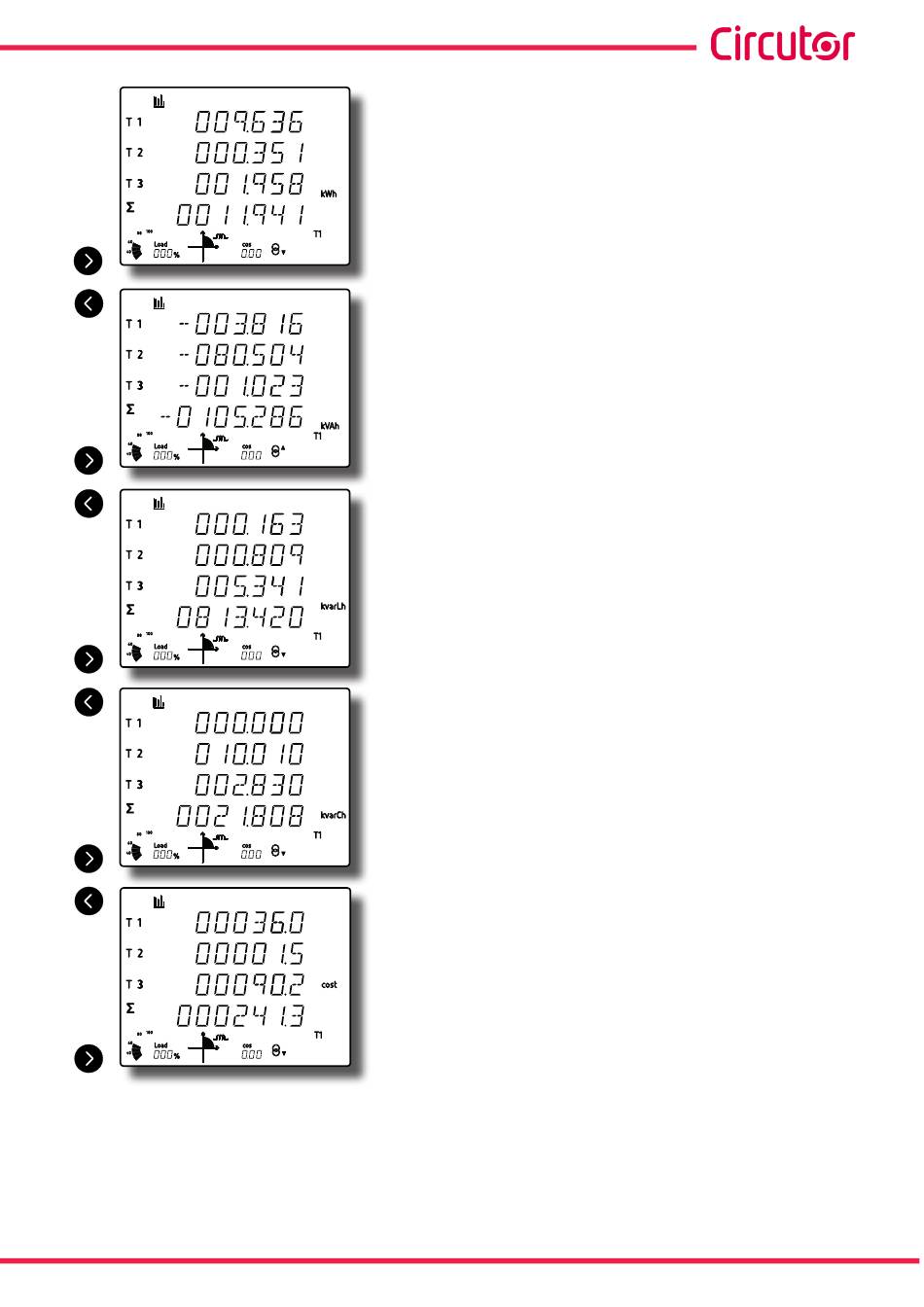

Active Energy Tariff 1
Active Energy Tariff 2
Active Energy Tariff 3
Total Active Energy, ∑
Consumption and generation values only available for the 4 quad-
rant option.
Apparent Energy Tariff 1
Apparent Energy Tariff 2
Apparent Energy Tariff 3
Total Apparent Energy, ∑
Consumption and generation values only available for the 4 quad-
rant option.
Inductive Reactive Energy Tariff 1
Inductive Reactive Energy Tariff 2
Inductive Reactive Energy Tariff 3
Total Inductive Reactive Energy, ∑
Consumption and generation values only available for the 4 quad-
rant option.
Capacitive Reactive Energy Tariff 1
Capacitive Reactive Energy Tariff 2
Capacitive Reactive Energy Tariff 3
Total Capacitive Reactive Energy, ∑
Consumption and generation values only available for the 4 quad-
rant option.
Cost Tariff 1
Cost Tariff 2
Cost Tariff 3
Total Cost, ∑
Consumption and generation values
