VLT® Refrigeration Drive FC 103
Operating Guide

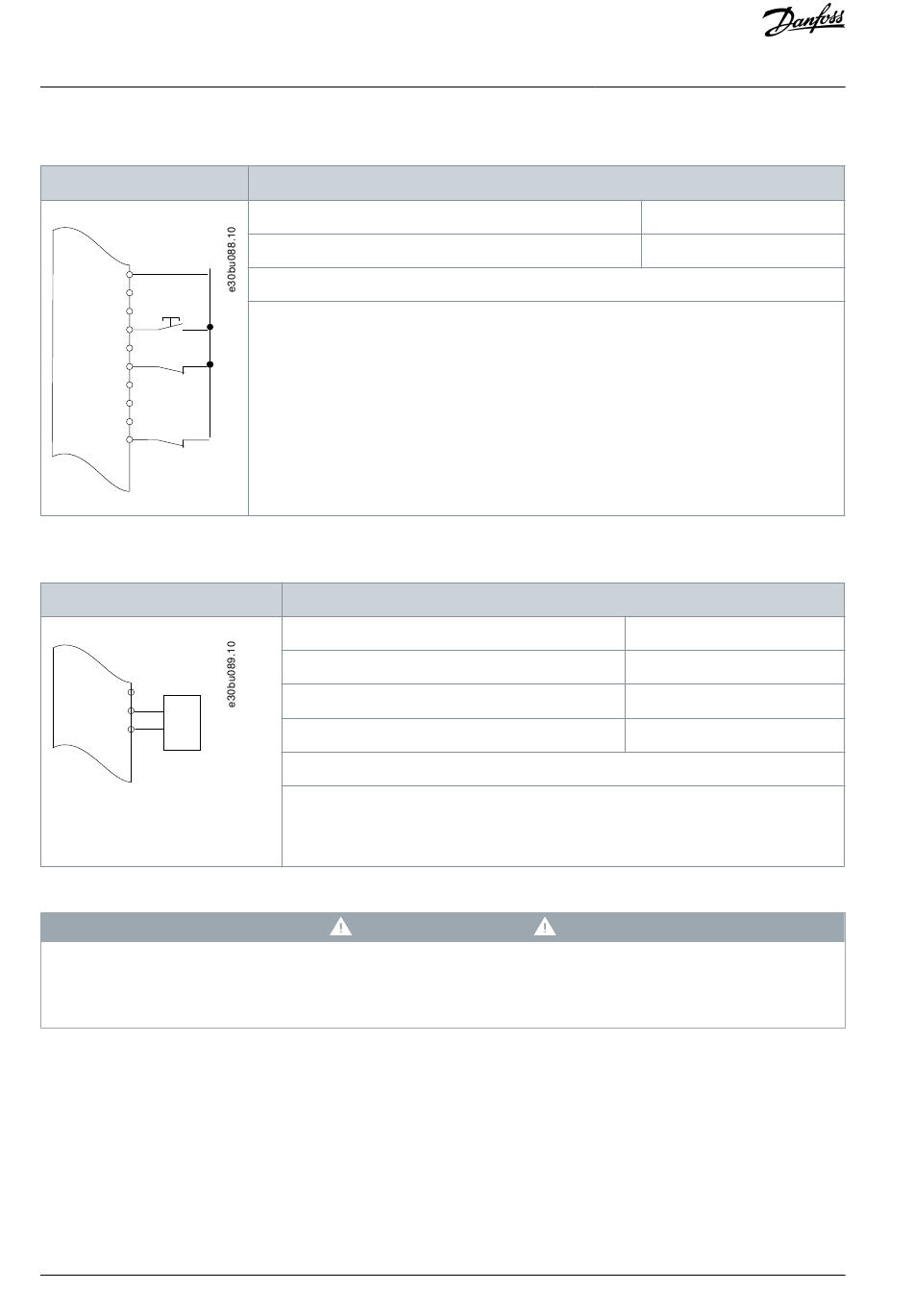

8.1.7 Wiring Configuration: External Alarm Reset

Table 85: Wiring Configuration for External Alarm Reset
+24 V XD2.10
+24 V XD2.11
D IN XD2.12
D IN XD2.13
COM XD2.18
D IN XD2.14
D IN XD2.15
D IN XD2.16
D IN XD2.17
D IN XD2.19

8.1.8 Wiring Configuration: RS485

Table 86: Wiring Configuration for RS485 Network Connection
RS485
XD2.10
+
XD2.11
XD2.12
-

8.1.9 Wiring Configuration: Motor Thermistor

THERMISTOR INSULATION
Risk of personal injury or equipment damage.
-
Use only thermistors with reinforced or double insulation to meet PELV insulation requirements.
112 | Danfoss A/S © 2020.09
Parameter
Function
Parameter 5-11 Terminal 19 Digital Input
*=Default value
Notes/comments:
D IN 37 is an option.
Terminal 19 in the parameter title corresponds to terminal XD2.13 in the control compartment.
Parameter
Function
Parameter 8-30 Protocol
Parameter 8-31 Address
Parameter 8-32 Baud Rate
*=Default value
Notes/comments:
Select protocol, address, and baud rate in the above-mentioned parameters.
D IN 37 is an option.
C A U T I O N
Wiring Configuration Examples
Setting
[1] Reset
Setting
FC*
1*
9600*
AQ357954340588en-000201 / 130R0881
