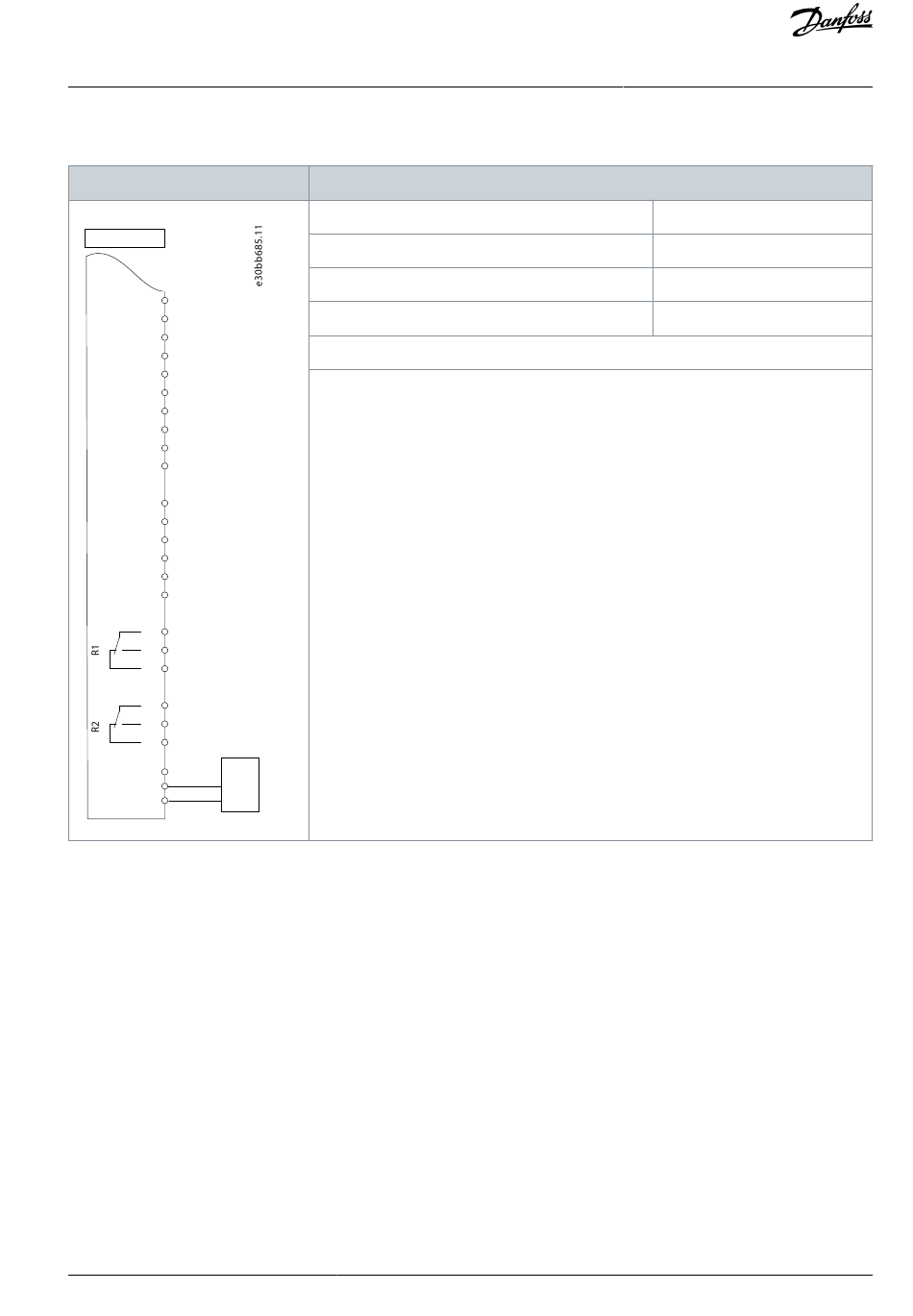

12.1.8 Wiring Configuration: RS485

Table 119: RS485 Network Connection
Drive
+24 V 12
13
+24 V
D IN 18
D IN 19
COM 20
D IN 27
29
D IN
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
06
RS485
61
+
68
69
-
Danfoss A/S © 2020.09
Parameter
Function
Parameter 8-30 Protocol
Parameter 8-31 Address
Parameter 8-32 Baud Rate
*=Default value
Notes/comments:
Select protocol, address, and baud rate in the above-mentioned parameters.
D IN 37 is an option.
Basic I/O Configurations
Setting
FC*
1*
9600*
AJ300847815559en-000101 / 130R0337 | 175
