Checks and Adjustments

Turf Groomer

Raising the Groomer

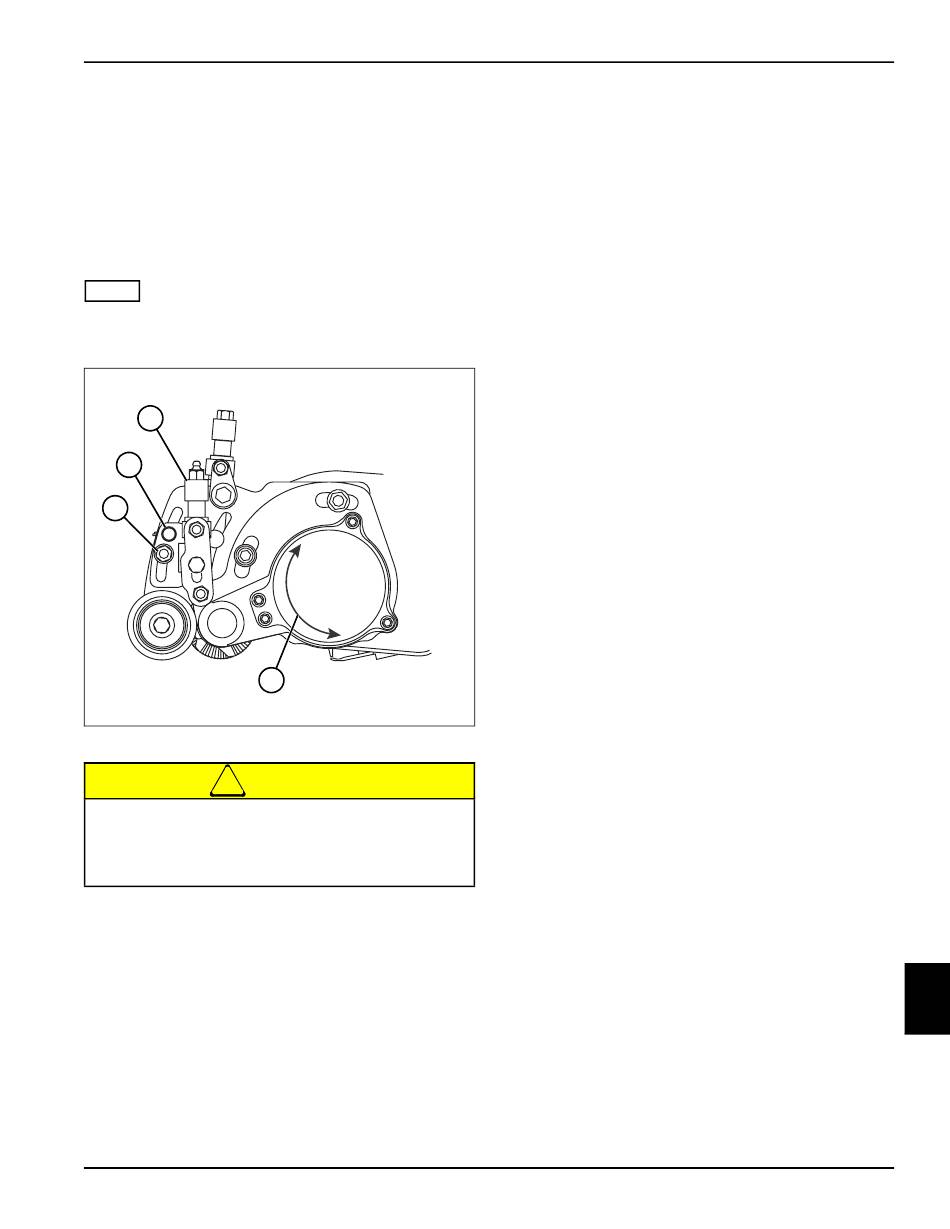

See Figure 10-1.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
NOTE
The groomer is designed to be always on whenever the
reel is turning.
3
2
1
Figure 10-1
!
CAUTION
Do not adjust groomer height by loosening screw
(1) and pivoting groomer assembly (4). Only use
the groomer height knobs (3). (See "Height-of-Cut
Adjustment" on page 10-4.)
2. To raise groomer, loosen screw (1) on both ends of
the reel and pivot the groomer up. Tighten screw (1).
3. To lower groomer to operation position, loosen screw
(1) and fully pivot groomer down until pin (2) is at
bottom of slot. Tighten screw (1).
