POWER TRAIN
7. Install the seal cover (11).

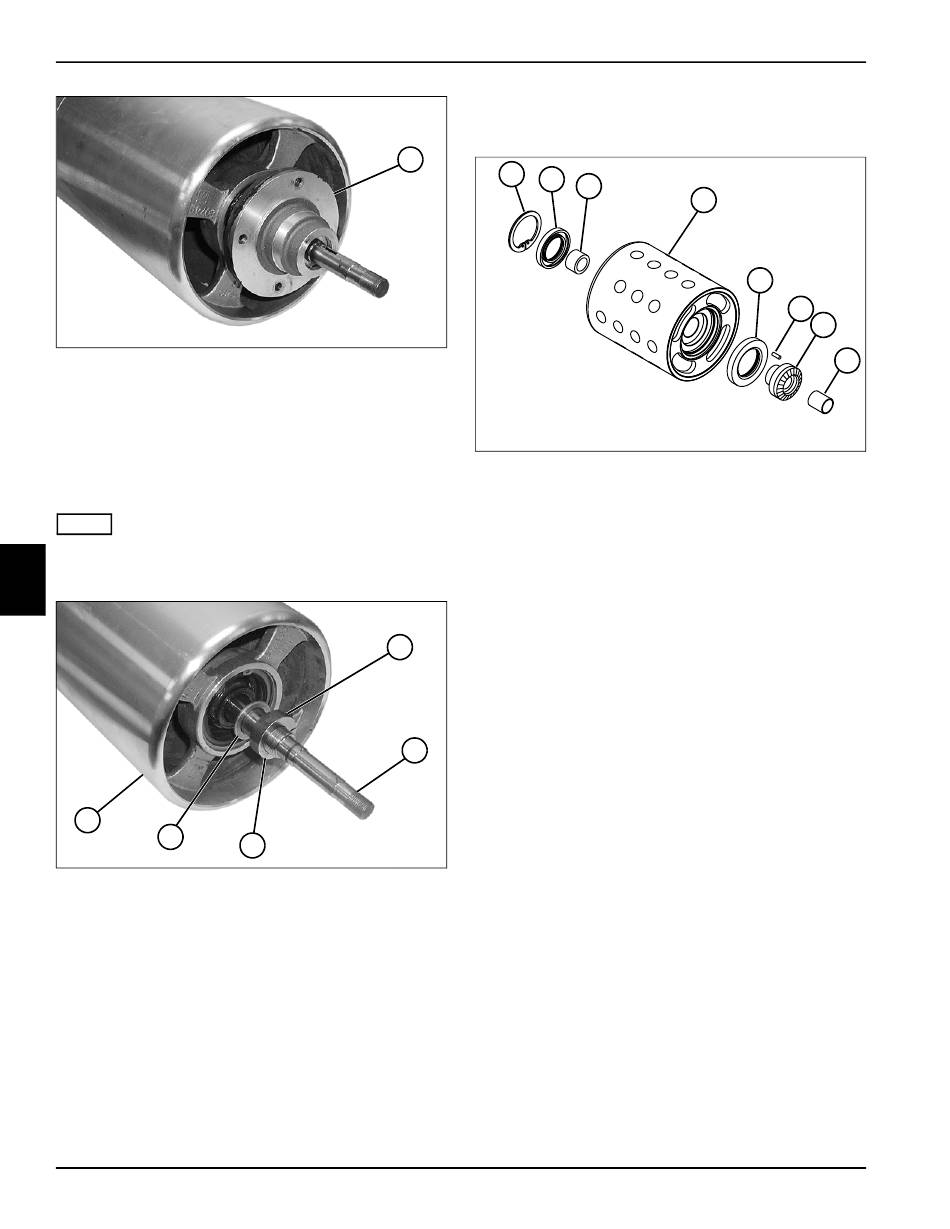

Traction Drum Assembly

Removal and Installation
See Figure 5-40.
NOTE
The right and left traction drum assemblies are removed
5
and installed the same way. Right drum shown.
5
4
1. Loosen the screw (1) and remove locking collar (3)
from the traction drum shaft (2).
2. Remove washer (4).
3. Remove drum assembly (5) from traction drum shaft
(2).
Installation Notes
• Install traction drum by reversing the order of
removal.
• Tighten non-pulley side nut until it just contacts
bearing.
• Tighten pulley nut to 30–35 lb-ft (40.6–47.4 N·m).
5-16
Figure 5-39
3
Figure 5-40
Disassembly and Assembly
See Figure 5-41.
11
1
2
TN0241
1 Retaining Ring
2 Grease Seal
3 Bushing (Press Fit)
4 Roller
1. Remove retaining ring (1), grease seal (2), and
bushing (3) from roller (4).
2. Remove differential gear (7) from roller (4).
3. Inspect bushing (8). Replace as needed.
4. Remove grease seal (5).
1
Assembly Notes
• Assembly is done by reversing the order of
disassembly.
• Install new grease seals (2 and 5).
2
• Apply grease that meets or exceeds NLGI Grade 2
LB specifications to the differential gear teeth (7) and
bushings (3 and 8) before assembly.
TN0245
3
4
5
5 Grease Seal
6 Pin (Press Fit)
7 Differential Gear
8 Bushing (Press Fit)
Figure 5-41
6
7
8
TN0246
4262930-Rev A
