Harness Connector Identification

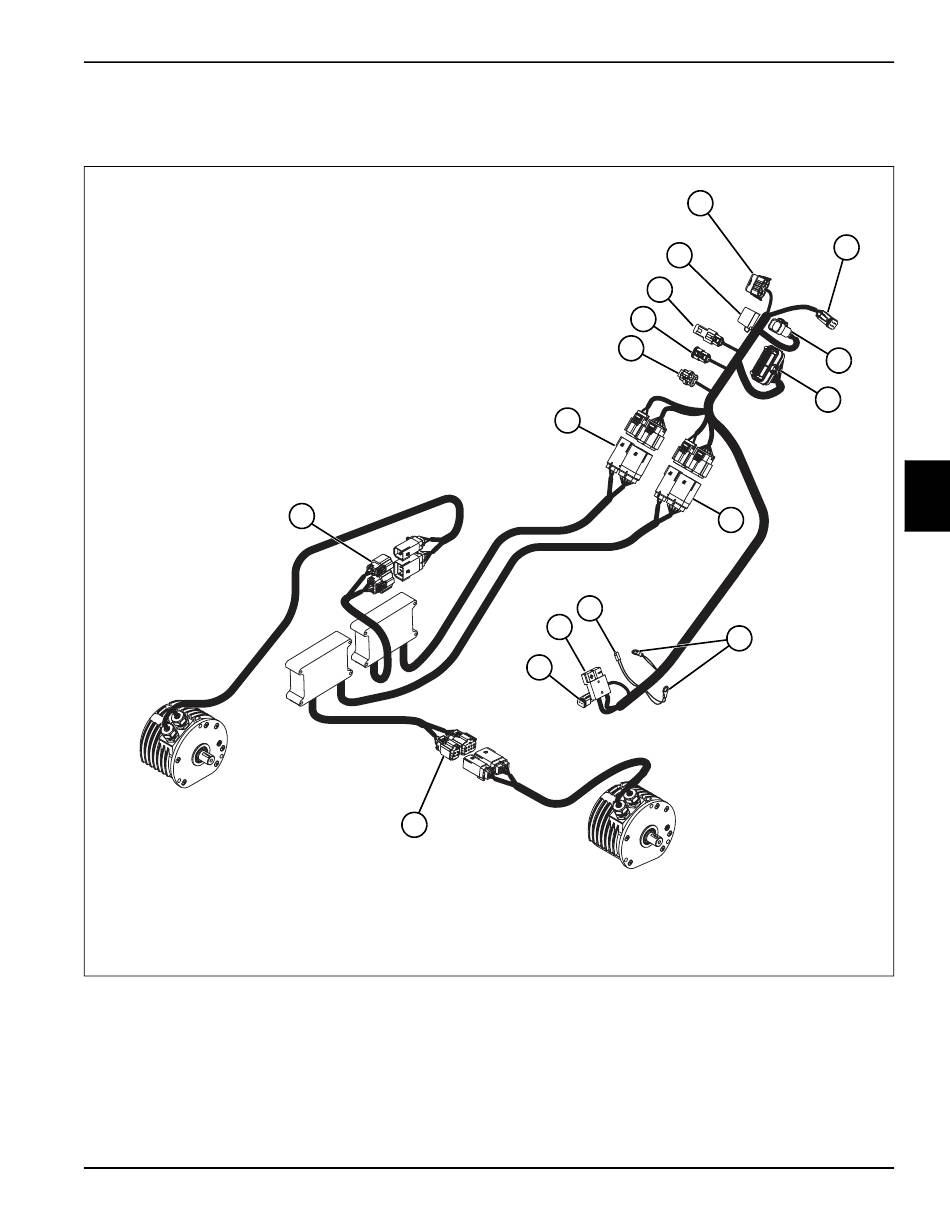

See Figure 4-3.
1 Mow Switch Connector (SW1)
2 Key Switch Connector (SW2)
3 Main Control Unit Connector (J1)
4 Main Control Unit Connector (J2)
5 30A Fuse (F2)
6 CAN Diagnostic Connector (J14)
7 Throttle Potentiometer Connector (J3)
8 Bail Potentiometer Connector (J20)
4262930-Rev A
16
15
9
10
11
12
13
14
15
16
Figure 4-3
5
6
7
8
9
12
13
14
Reel Motor Controller Connectors (J6 and J7)
Traction Motor Controller Connectors (J8 and J9)
Ground Terminals (GC1 and GC2)
Engine On/Off Switch Connector (J22)
Battery Pack/Gen-Set Connector (J23)
Light Kit Connector (J15)
Traction Motor Connectors (J12 and J13)
Reel Motor Connectors (J10 and J11)
ELECTRICAL
1
2
3
4
10
11
