Component Location; Battery Pack Models - Textron JACOBSEN Eclipse 2 Technical/Repair Manual

ELECTRICAL

Component Location

Battery Pack Models

Become familiar with operator controls, machine
components, and correct operating procedures
before beginning repair procedures.
1
4
4-4
!
CAUTION
2
1 Speed Control Paddle
2 Mow Switch
3 Battery Gauge
4 Reel Motor
5 LCD Display and Controls
6 Key Switch
3
8
4
7 Traction Motor
8 Traction Motor Controller
9 Reel Motor Controller
10 Battery Pack
11 30A Fuse

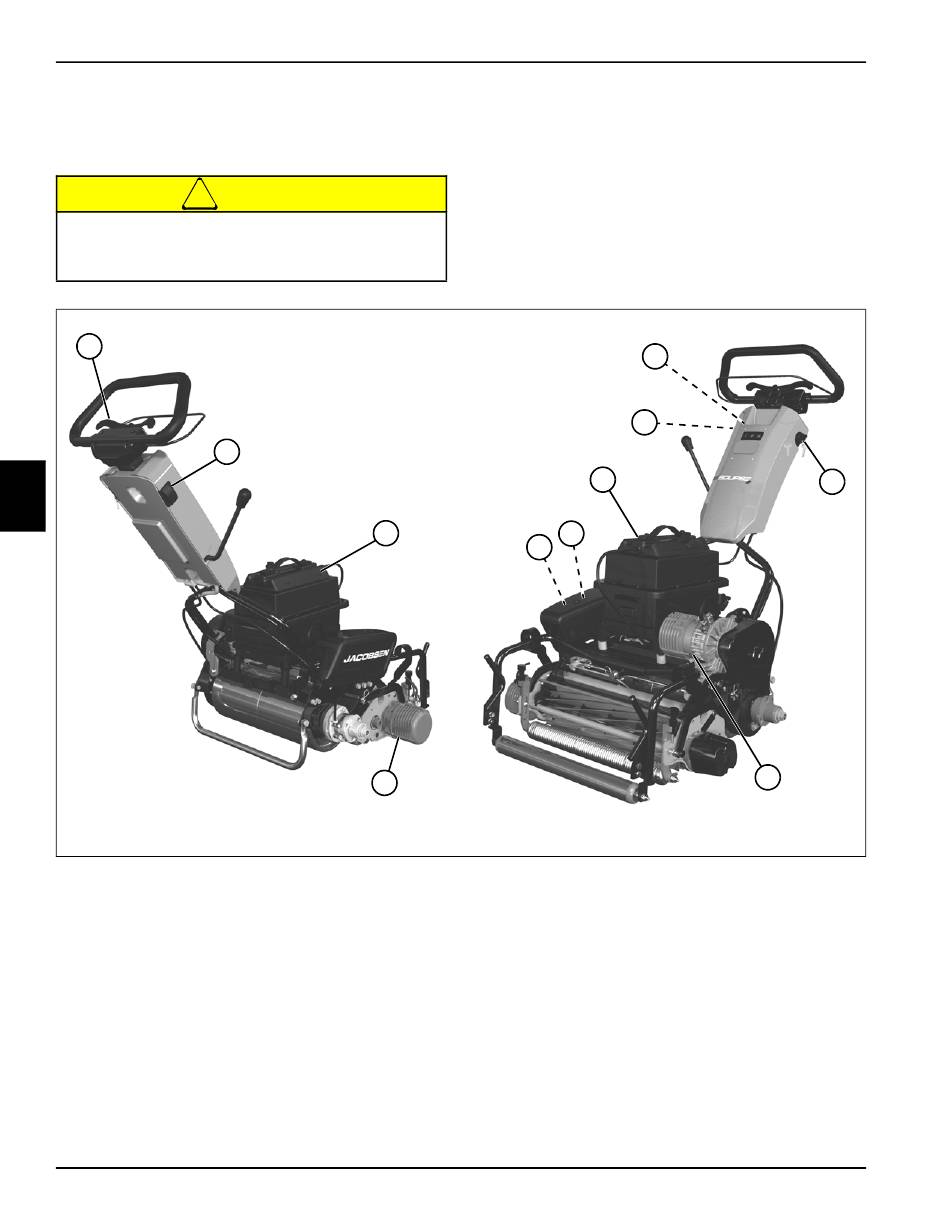

Figure 4-1
5
11
10
9
6
7
TN4454, TN4453
4262930-Rev A
