ACCESSORIES

Scraper Blade Assembly

Removal and Installation

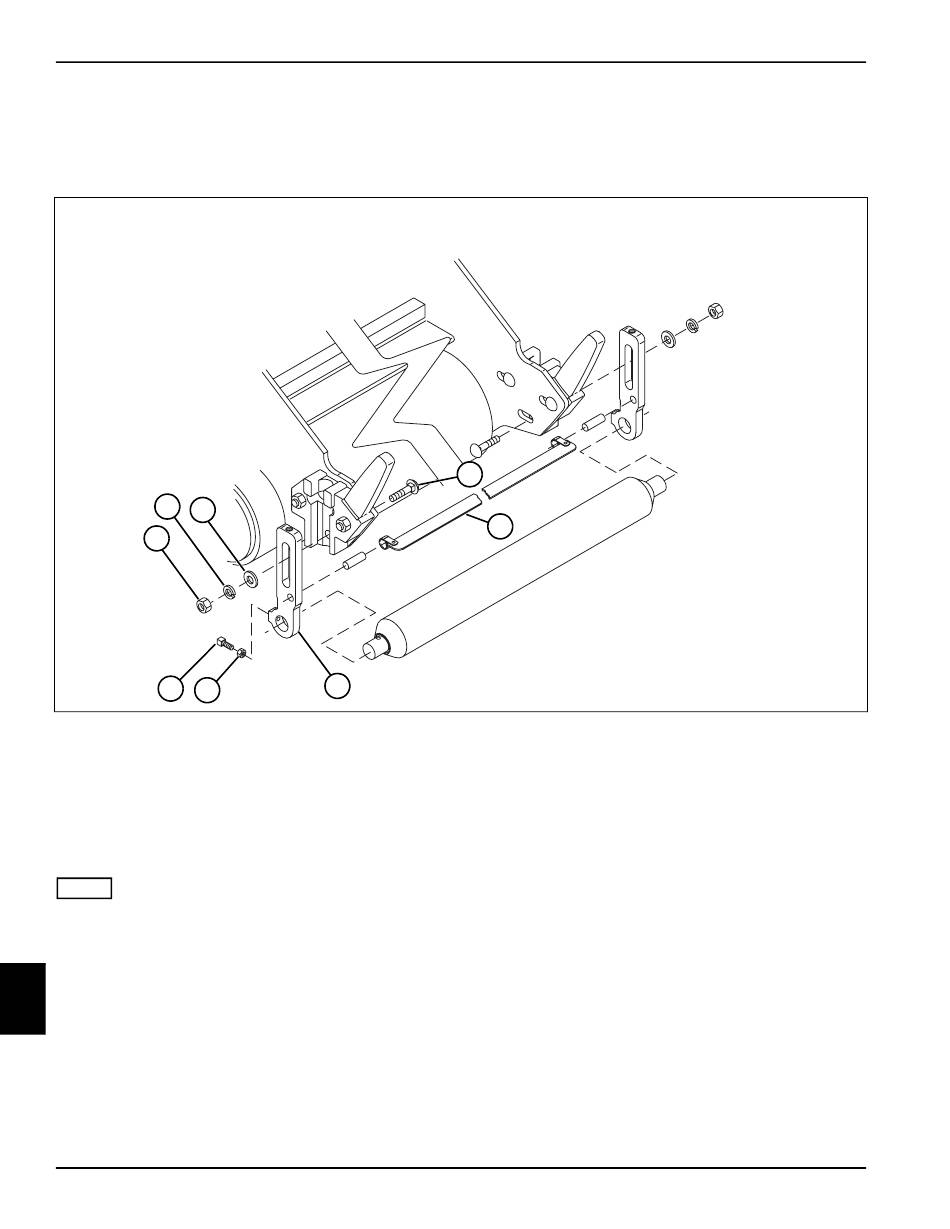

See Figure 10-26.
2
1
8
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
2. Retract the kickstand and allow the mower to rest on
the traction roller or transport wheels.
3. Place blocks under the frame to remove weight from
the front roller.
NOTE
Only one adjuster bracket must be removed to remove
the scraper blade assembly. Bracket on either side can
be removed.
4. Loosen jam nut (7) and square-head bolt (8).
10
5. Remove nut (1), lock washer (2), flat washer (3), and
carriage bolt (4) from adjuster bracket (6).
6. Remove adjuster bracket (6).
7. Remove scraper assembly (5).
10-16
3
6
7
4
5
Figure 10-26
Installation Notes
• Install the scraper assembly by reversing the order of
removal.
• Adjust height-of-cut. (See "Height-of-Cut Adjustment
(HOC)" on page 8-17.)
