ELECTRICAL

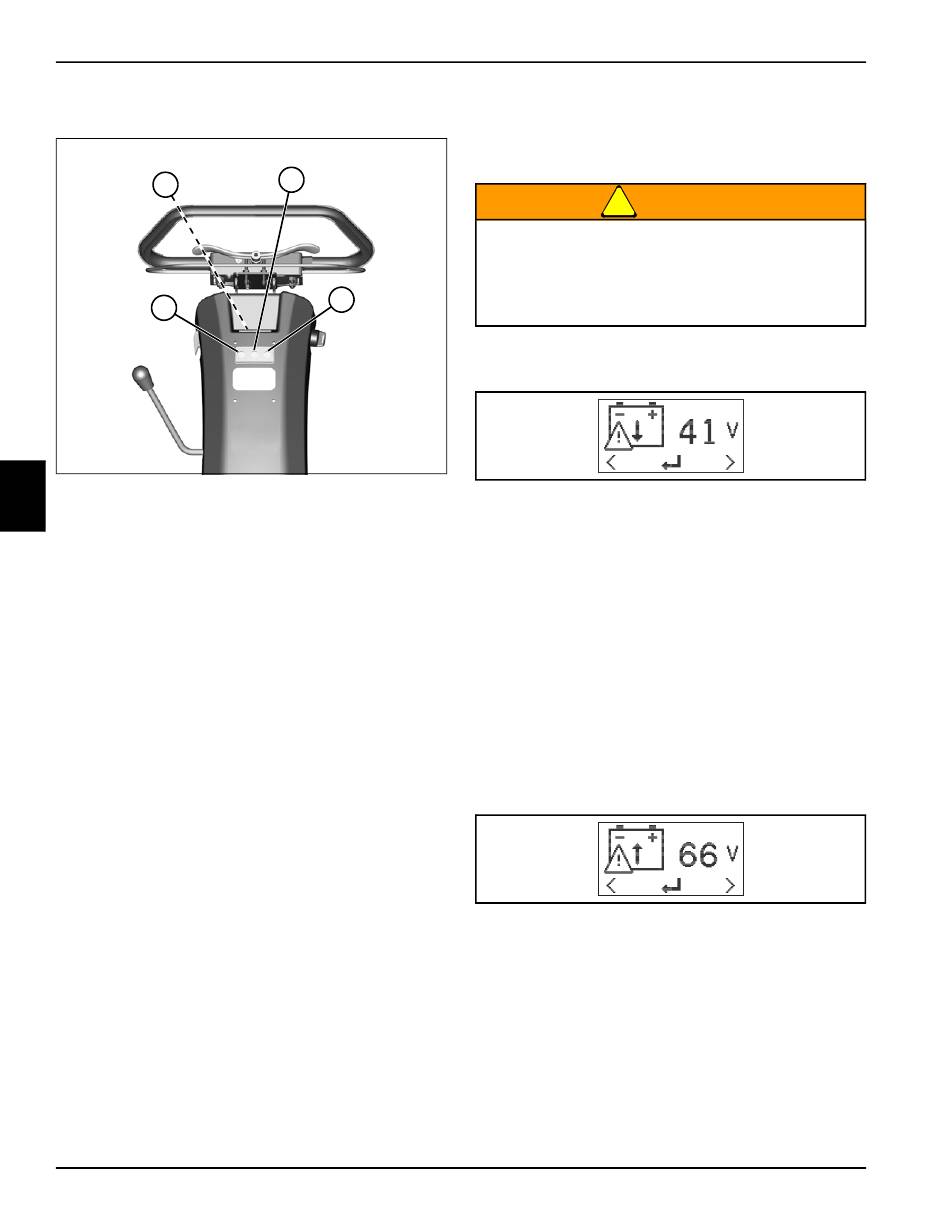

LCD Display—Modes
2
1
4
The LCD display (2) shows machine values for the
operation of the Eclipse. The orange buttons (1 and 4)
are used to toggle between display settings, or to
increase or decrease setting values. The black button (3)
is used to select, reset, or navigate within values.
The LCD displays current functional values for the
operation of the Eclipse mower and sounds one of three
types of audible alerts. The LCD operates in one of two
modes, Operator Mode (Default) and Maintenance
Mode. Use of Maintenance Mode requires a four digit
personal identification number (PIN). The Maintenance
Mode PIN is 6789.

Audible Alerts

The audible alerts indicate one of three conditions
detected by the LCD display, and a corresponding
message would show on the display. A solid tone
indicates low system voltage. A fast beeping (2 per
second) alert indicates an over voltage condition. A slow
beeping (1 every 3 seconds) alert indicates mower is in
backlap mode.
4-36
3
4
Figure 4-18

Alert Displays

In addition to the standard displays for each mode, six
displays are used to alert the operator of a problem that
needs to be corrected.
To prevent personal injury, release OPC bail,
disengage reel motor, move key switch to the off
position, and disconnect battery pack connector
before checking for obstructions in reel or
traction motor systems.
Low Voltage
TN4388
Battery Pack Models: A low-battery display screen is
shown, and an audible alarm will sound when system
voltage drops below 42 VDC. Press the black button to
silence the audible alarm. The reel motor will not operate
with system voltage below 42.0 VDC.
Check battery pack; charge or replace as needed. (See
"Battery Pack" on page 4-56.)
Gen-Set Models: The same display and audible alarm
will be used to indicate low voltage output from the
gen-set. Press the black button to silence the audible
alarm. The reel motor will not operate with system
voltage below 38.0 VDC.
Test gen-set output. (See "Gen-Set Output Test" on
page 4-46.)
Overvoltage/Check Voltage
An overvoltage/check voltage display screen is shown,
and an audible alarm will sound when system voltage
reaches 66 VDC. Press the black button to silence the
alarm. The controller will shut down after 60 seconds if
the overvoltage condition remains uncorrected.
Test gen-set output. (See "Gen-Set Output Test" on
page 4-46.)
!
WARNING
4262930-Rev A
TN4505
TN4506
