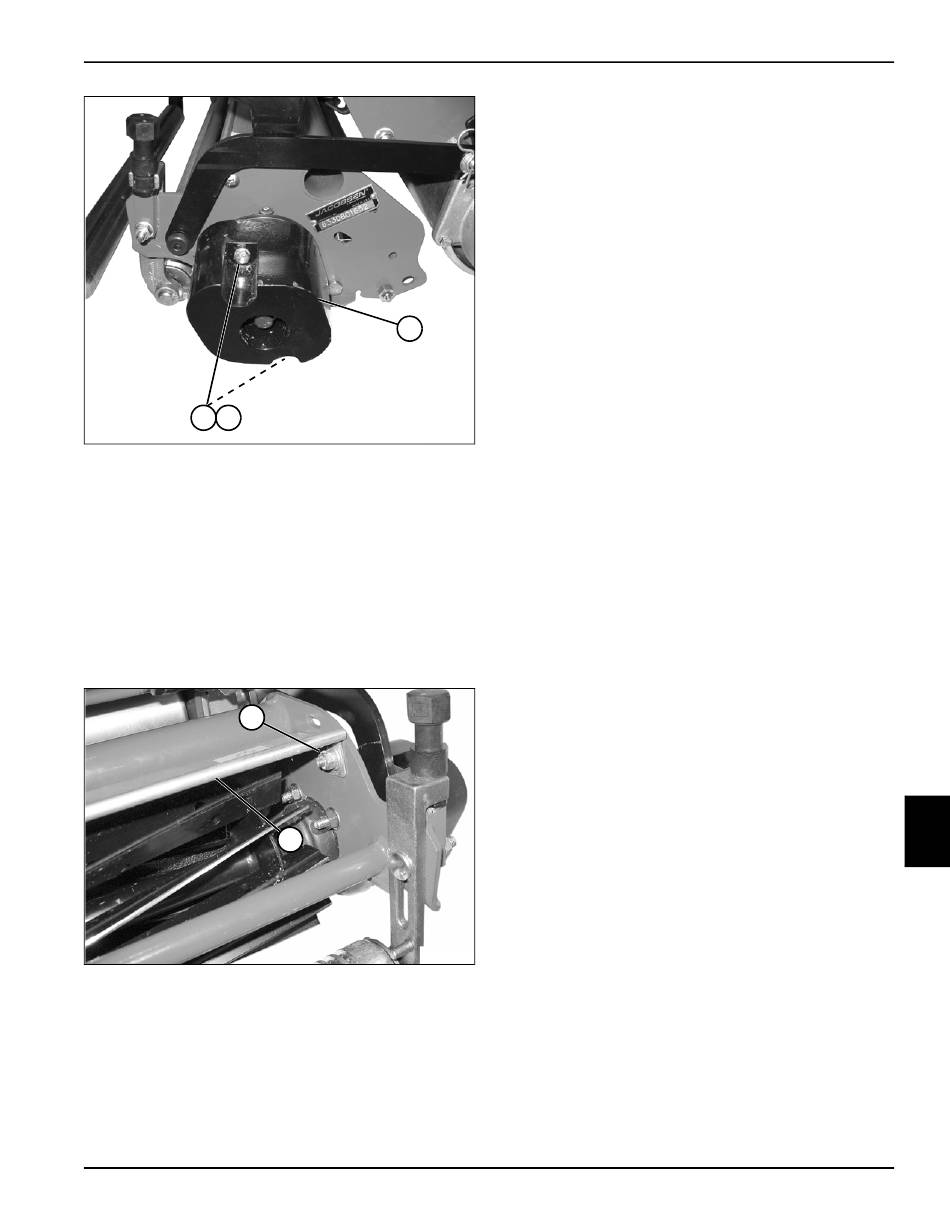

Figure 8-20
8. Install counterweight (14) and two screws (15) and
lock washers (16).
9. Adjust bedknife-to-reel contact. (See
"Bedknife-to-Reel Adjustment" on page 8-14.)
Grass Shield Adjustment
See Figure 8-21.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
1
Figure 8-21
2. Loosen nut (1) on each end of grass shield (2) and
adjust grass shield as close to reel blades as
possible without making contact.
3. Tighten nut (1) on each end of grass shield.
