Reel Bearing Pre-Load Adjustment; Cutting Unit - Textron JACOBSEN Eclipse 2 Technical/Repair Manual

CUTTING UNIT

Reel Bearing Pre-Load Adjustment

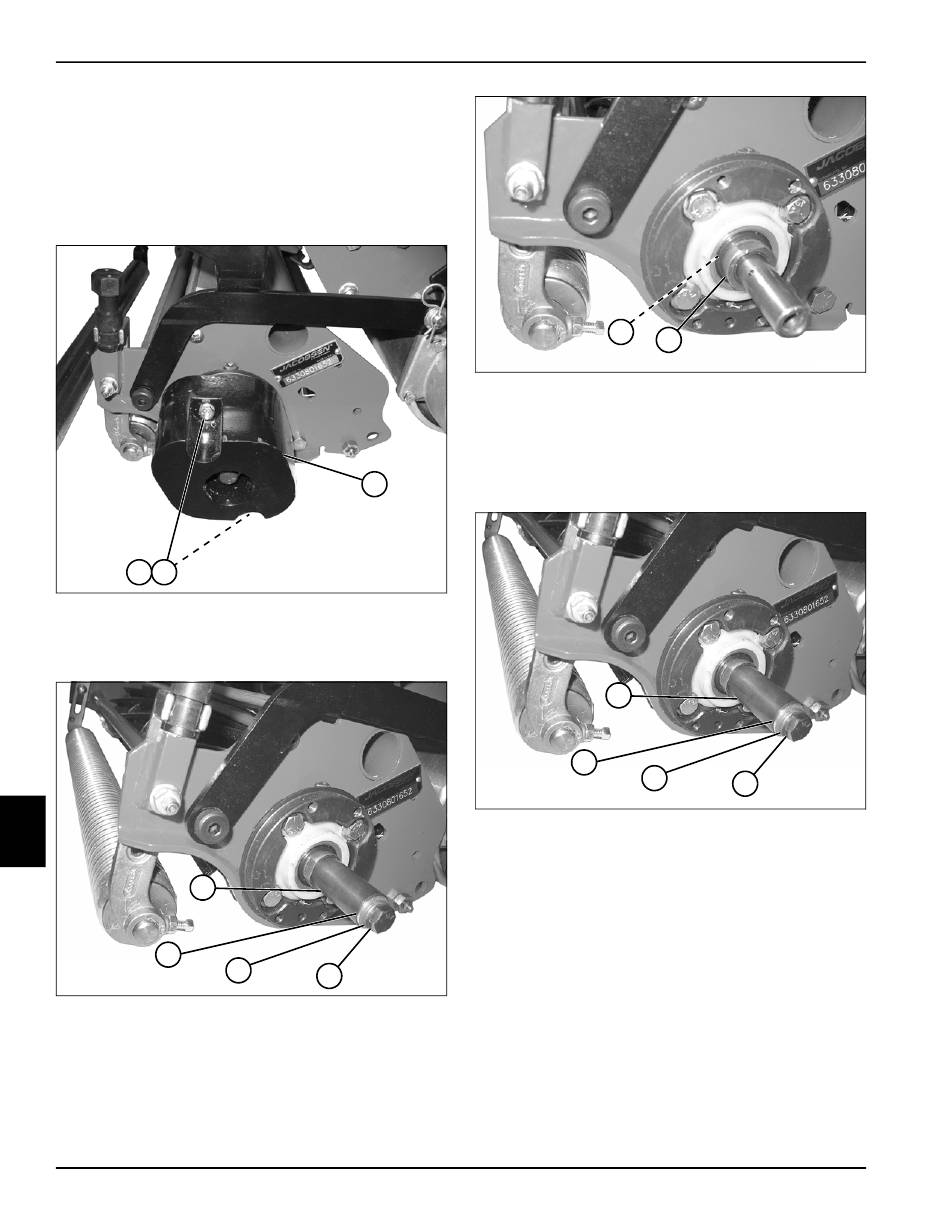

See Figures 8-16 through 8-20.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
2. Back the bedknife away from the reel. (See
"Bedknife-to-Reel Adjustment" on page 8-14.)
2 3
3. Remove two screws (2) and lock washers (3).
Remove counterweight (1).
8
6
4. Remove screw (4), lock washer (5), and washer (6).
5. Remove spacer (7).
8-18
1
Figure 8-16
7
5
4
Figure 8-17
6. Tighten adjuster nut (8) until the spring (9) is
collapsed, then back the nut out two or three turns, or
until there is 0.040 in. (1.27 mm) side-to-side
movement of the reel.
TN0895
7. Install spacer (13), washer (12), lock washer (11),
and screw (10).
TN0899
9
8
Figure 8-18
13
12
11
10
Figure 8-19
TN0900
TN0899
