30A Fuse Test; Battery Pack Fuse Test - Textron JACOBSEN Eclipse 2 Technical/Repair Manual

ELECTRICAL

30A Fuse Test

See Figure 4-29.
Required Tools or Equipment
Digital Multimeter or Ohmmeter
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
2. Remove 30A fuse. (See "30A Fuse" on page 4-60.)
4
1
3. Set the meter to read ohms.
4. Touch meter leads to each other and confirm a
resistance value of 0.0 ohms.
5. Measure the resistance between terminals (1 and 2).
Is the resistance value 0.02 ohm or less?
YES Fuse is good.
NO Fuse is faulty; replace the fuse.
4-50
2

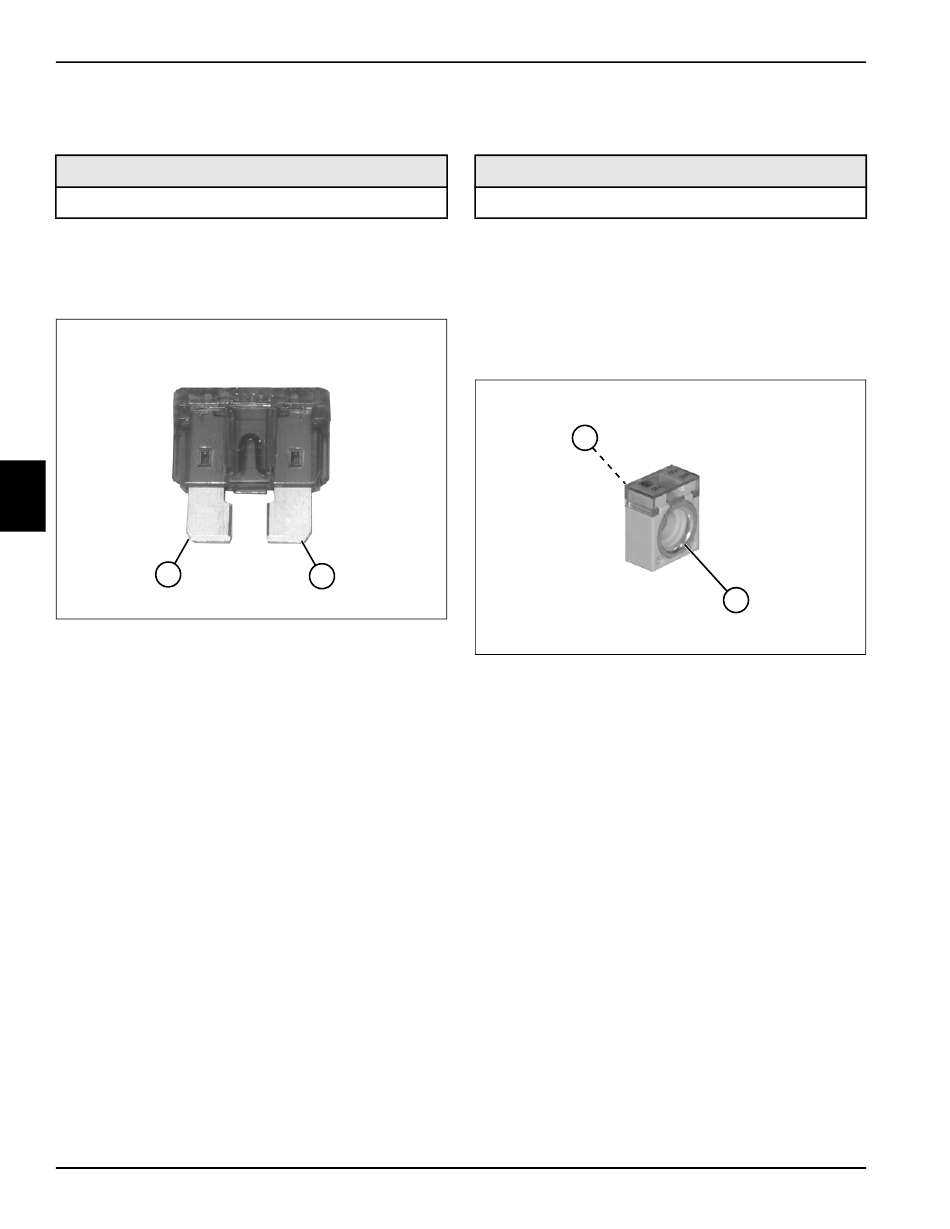

Figure 4-29

Battery Pack Fuse Test

See Figure 4-30.
Required Tools or Equipment
Digital Multimeter, Ohmmeter, or Continuity Tester
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
2. Remove battery pack. (See "Battery Pack" on
page 4-56.)
3. Remove battery pack fuse. (See "Battery Pack Fuse"
on page 4-58.)
TN2742
4. Measure the resistance between ring terminals
(1 and 2).
Is the resistance value 0.02 ohm or less?
YES Battery pack fuse is good.
NO Battery pack fuse is faulty; replace the
battery pack fuse.
1
2
Figure 4-30
TN0678
