Key Switch; 30A Fuse - Textron JACOBSEN Eclipse 2 Technical/Repair Manual

ELECTRICAL

Key Switch

Removal and Installation
See Figure 4-46.
Required Materials
Dielectric Grease (Jacobsen PN 365422)
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
2. Remove handle cover. (See "Handle Cover" on
page 6-4.)
1
4
3
NOTE
Label all wires before disconnecting to ensure correct
installation.
3. Disconnect key switch connector (2).
4. Remove key switch nut (1) and key switch assembly
(3).
Installation Notes
• Install key switch by reversing the order of removal.
• Apply dielectric grease (Jacobsen PN 365422) to any
connectors removed.
• Install handle cover. (See "Handle Cover" on
page 6-4.)
4-60
2

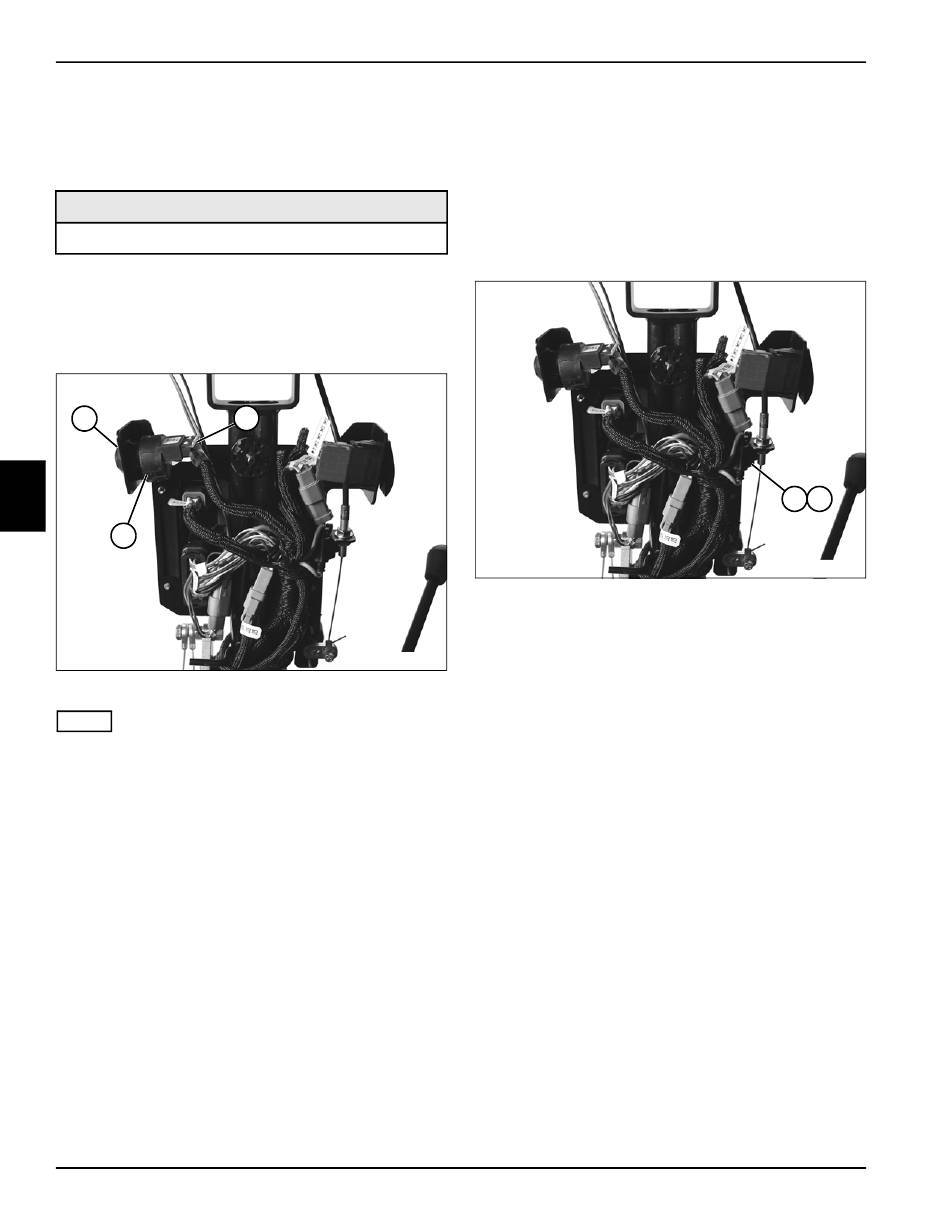

Figure 4-46

30A Fuse

Removal and Installation
See Figure 4-47.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
2. Remove handle cover. (See "Handle Cover" on
page 6-4.)
3. Remove the protective fuse cover (1) and remove
30A fuse (2).
TN4629
Installation Note
Install 30A fuse by reversing the order of removal.
1 2
Figure 4-47
4262930-Rev A
TN4629
