Kickstand Assembly
Removal and Installation

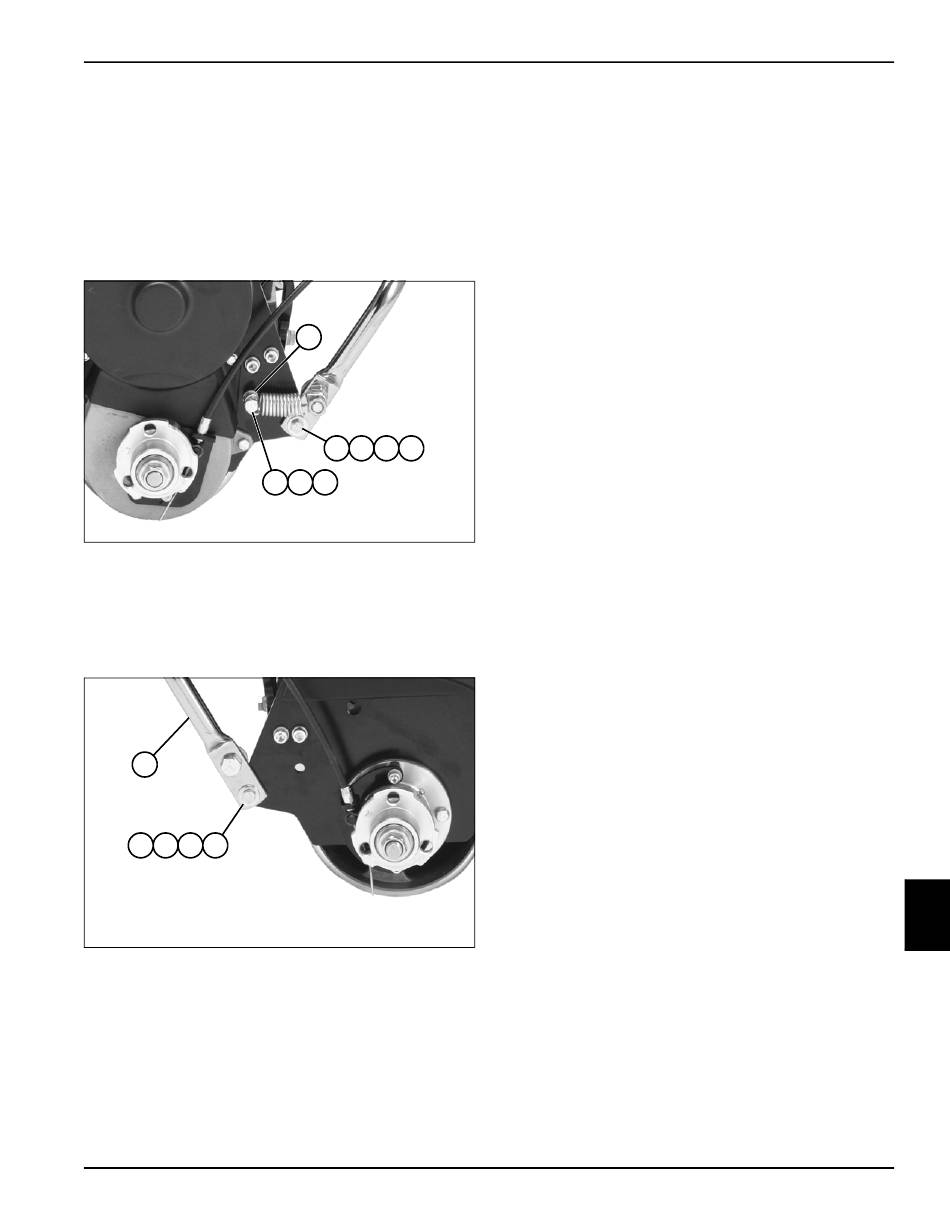

See Figures 9-12 and 9-13.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
2. Retract the kickstand and allow the mower to rest on
the traction roller or transport wheels.
Figure 9-12: Left Side
3. Remove screw (6), jam nut (7), and lock washer (8).
4. Disengage spring (1).
5. Remove screw (2), two flat washers (3), spacer (4),
and lock nut (5).
9
10 11 12 13
Figure 9-13: Right Side
6. Remove screw (10), two flat washers (11), spacer
(12), and lock nut (13).
7. Remove kickstand assembly (9).
4262930-Rev A
1
2 3 4 5
6 7 8
TN4403
TN4404
Installation Notes
• Install kickstand assembly by reversing the order of
removal.
• Tighten screw and nut (10 and 13) during installation
just enough to enable kickstand to spring up with
minimal assistance.
