Disassembly and Assembly

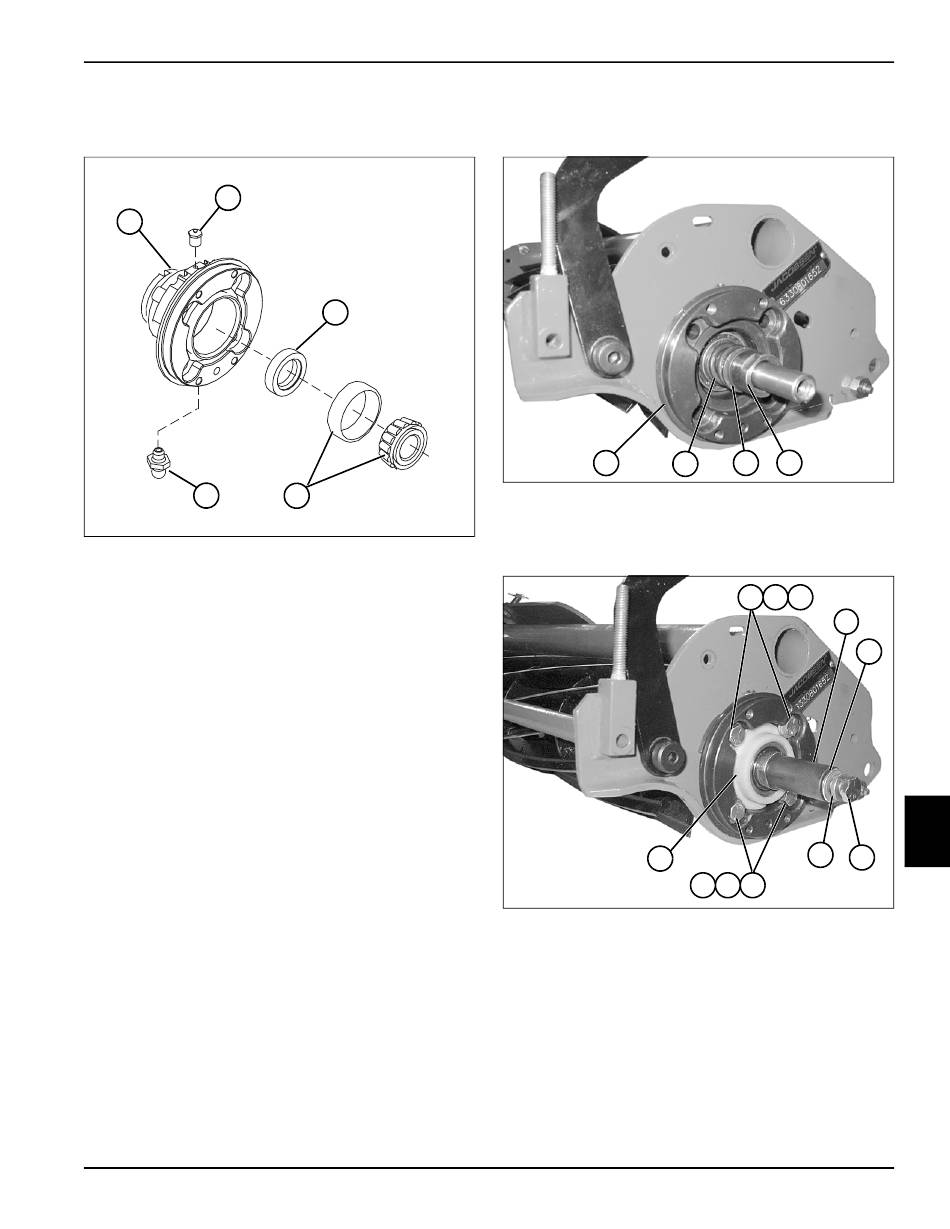

See Figure 8-42.
2
1
5
1 Bearing Housing
2 Vent Fitting
3 Grease Seal
Figure 8-42
Assembly Notes
• Clean and inspect the bearing cup and cone (4) for
wear and damage. Replace as needed.
• Pack bearing (4) with grease that meets or exceeds
NLGI Grade 2 LB specifications before assembly.
• Install a new grease seal (3).
• Apply grease that meets or exceeds NLGI Grade 2
LB specifications to the lips of the grease seal (3).
4262930-Rev A
3
4
TN0941
4 Bearing Cup and Cone
5 Grease Fitting
Installation
See Figures 8-43 through 8-45.
1
2
Figure 8-43
1. Install reel bearing housing assembly (1).
2. Install spring (2), washer (3), and nut (4).
12
Figure 8-44
3. Install seal (12) using screws (5), washers (6), and
nuts (7).
4. Adjust the reel bearing pre-load. (See "Reel Bearing
Pre-Load Adjustment" on page 8-18.)
5. Install spacer (8), washer (9), lock washer (11), and
screw (10).
CUTTING UNIT
3 4
TN0903
5 6 7
8
9
11
10
5 6 7
TN0904
