Traction Drum Right Bearing Housing - Textron JACOBSEN Eclipse 2 Technical/Repair Manual

5 6

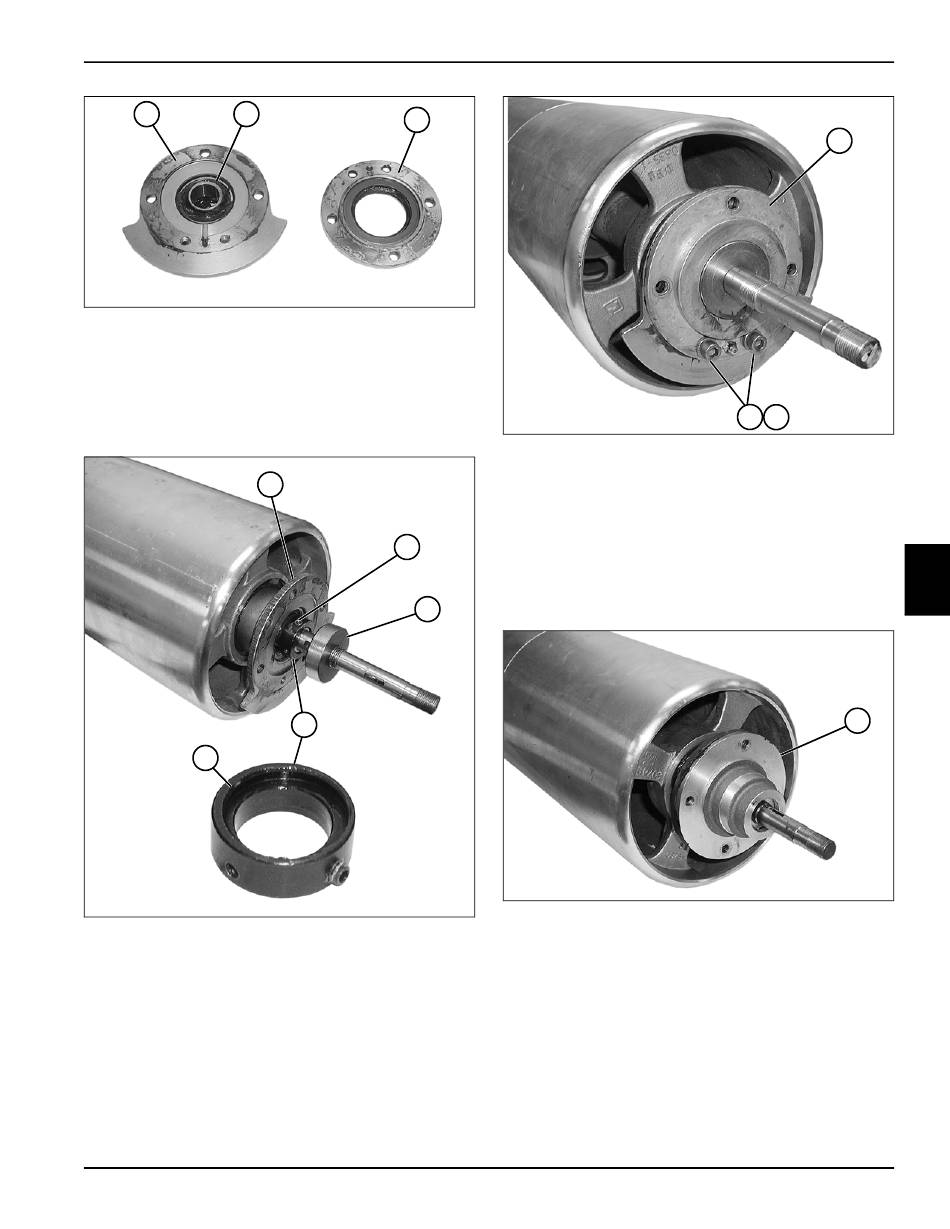

Figure 5-27
3. Clean the mating surfaces of the seal cover (7) and
bearing housing (5), and apply a thin film of Loctite
Aviation Gasket Sealer to the mating surfaces.
4. Pack bearing (6) with grease that meets or exceeds
NLGI Grade 2 LB specifications before installation.
12
Figure 5-28
5. Install bearing housing (8).
6. Install locking collar (11) with the recessed side (12)
toward the bearing. Tighten the set screw (9).
7. Install spacer (10).
4262930-Rev A
7
TN0249
8
9
10
11
TN0236, TN0240
®
8. Install seal cover (13) using two screws (14) and lock
washers (15).

Traction Drum Right Bearing Housing

Removal
See Figures 5-30 through 5-34.
1. Remove the seal cover (1).
POWER TRAIN
13
14 15
Figure 5-29
Figure 5-30
TN0235
5
1
TN0241
5-13
