Cutting Unit Front Roller; Cutting Unit Rear Roller - Textron JACOBSEN Eclipse 2 Technical/Repair Manual

Cutting Unit Front Roller

Removal and Installation
NOTE
Removal and installation of the cutting unit front roller is
described in Chapter 10—Accessories. (See "Cutting
Unit Front Roller" on page 10-8.)
4262930-Rev A

Cutting Unit Rear Roller

Removal and Installation
See Figure 8-50.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
NOTICE
Gen-Set Models: Before tipping mower back for
service, the fuel lever must be moved to the OFF
position to prevent fuel from leaking into the
crankcase. Do not leave the mower tipped back
for an extended length of time or oil may migrate
into the combustion chamber.
2. Tip mower back on traction drum or tires. Support the
mower to prevent it from tipping.
1

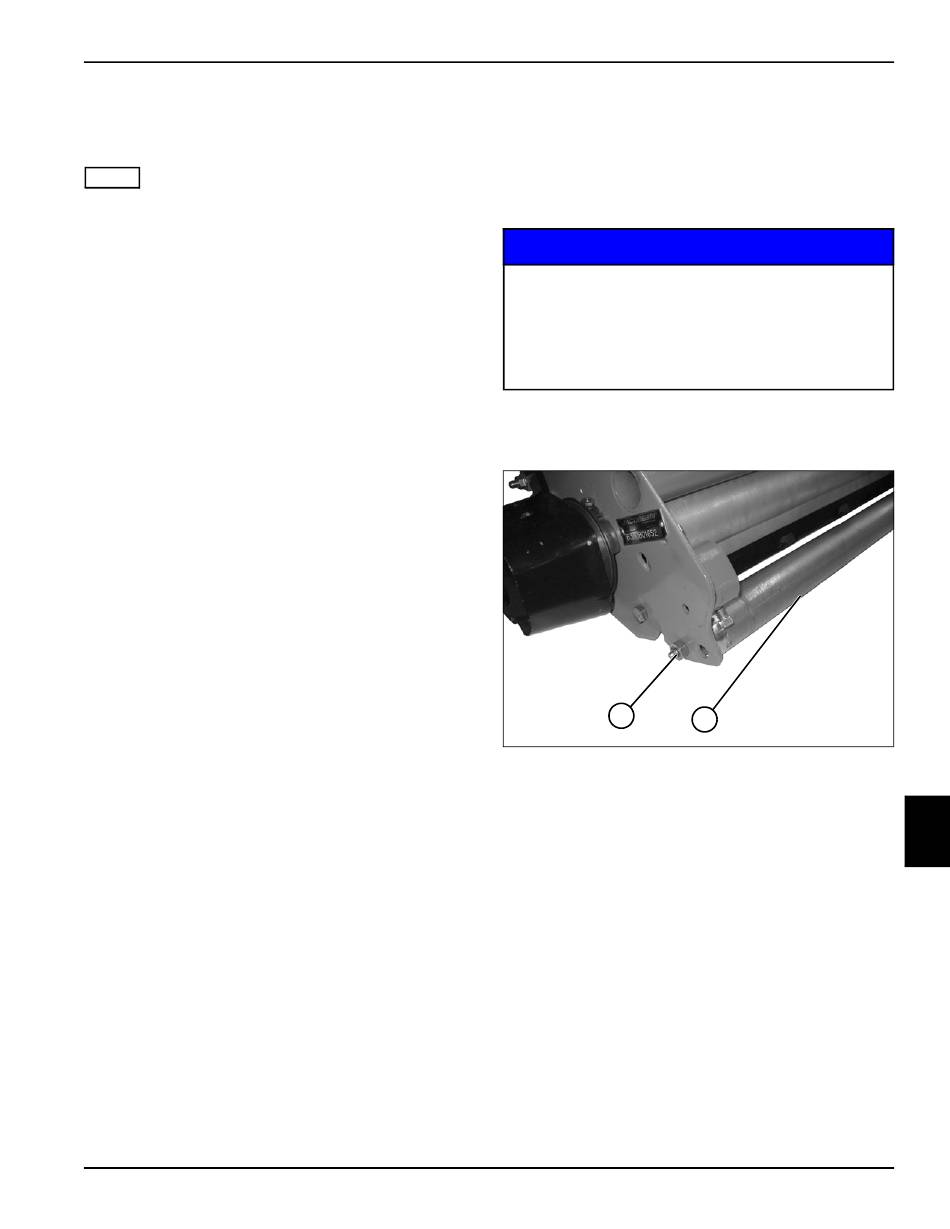

Figure 8-50
3. Remove screw (1) from each side of the mower.
4. Remove cutting unit rear roller (2).
Installation Notes
• Install cutting unit rear roller by reversing the order of
removal.
• Lubricate grease fittings with grease that meets or
exceeds NLGI Grade 2 LB specifications. Clean
grease fittings before lubricating and apply grease to
the fittings with a hand grease gun only. Pump the
gun slowly until a slight amount of pressure is felt,
then stop—do not over-grease. Do not use
compressed air gun.
CUTTING UNIT
2
TN0939
8-33
8
