ELECTRICAL
Maximum Mow Speed

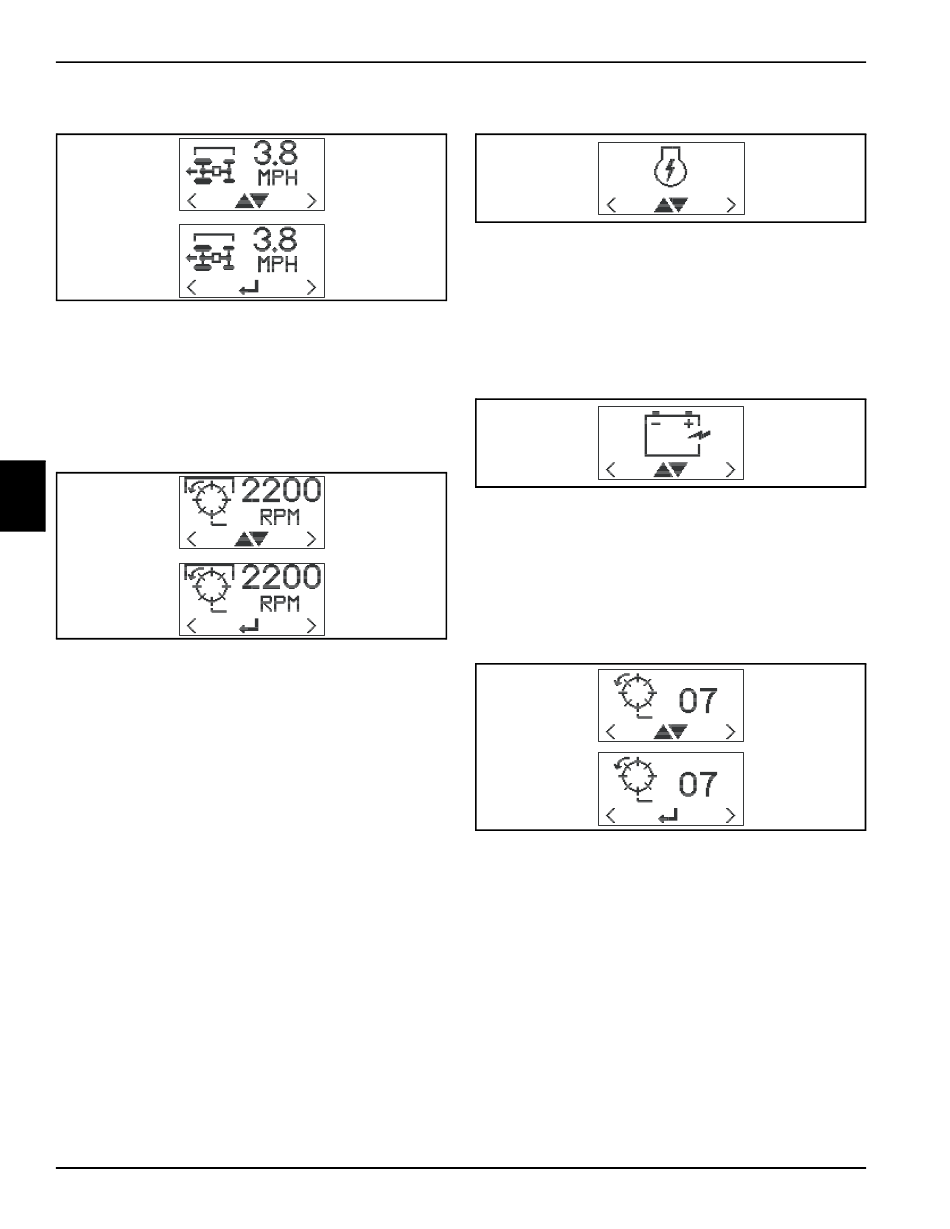

To set the maximum mow speed, press either orange
button (1 or 4) on the front cover until the set max mow
speed screen is on the LCD display. Press the black
button (3) to enter set mode. Use the orange buttons to
raise (1) or lower (4) the maximum mow speed to the
desired speed. Press the black button to set speed.
Fixed Reel Speed
4
To set the fixed reel speed, the FOC setting must be 0.
Press either of the orange buttons (1 or 4) on the front
cover until the set reel speed screen is on the LCD
display. Press the black button (3) to enter set mode. Use
the orange buttons to raise (1) or lower (4) the reel speed
to the desired setting.
4-42
Gen-Set Power Module
Used to indicate the gen-set power module is installed on
the mower.
This setting is used by system controllers and does not
TN4486, TN4487
affect operation of mower. Do not operate mower with
incorrect power module setting. Press the black button
(3) to toggle between the power module settings.
Battery Power Module
Used to indicate the battery power module is installed on
the mower.
This setting is used by system controllers and does not
affect operation of mower. Do not operate mower with
incorrect power module setting. Press the black button
(3) to toggle between the power module settings.
Set Number of Reel Blades
TN4488, TN4489
To set the number of reel blades, press either orange
button (1 or 4) on the front cover until the reel blades
screen is on the LCD display. Press the black button (3)
to enter set mode. Use the orange buttons to set the
number of blades.
TN4490
TN4491
TN4492, TN4493
