Textron JACOBSEN Eclipse 2 Technical/Repair Manual page 201

7
9
10
13
14
TN0251

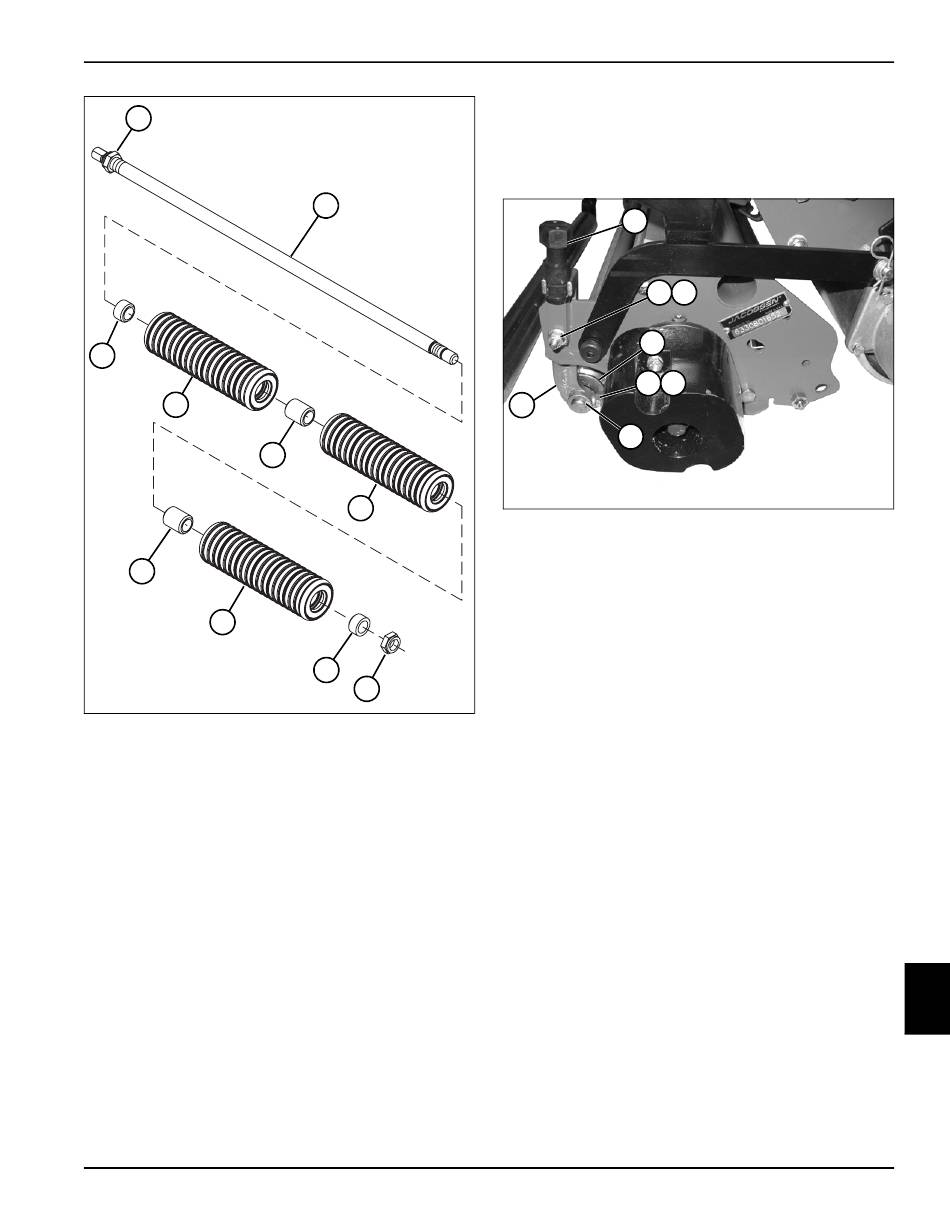

Figure 10-24
5. Apply a thin film of grease that meets or exceeds
NLGI Grade 2 LB specifications to the outside
diameter of the short spacer (9), and install the
spacer on the roller shaft (8) with the bevel facing
away from the nut (7).
6. Install the roller segment assemblies (10, 12, and 14)
on the roller shaft (8), placing a long spacer (11 and
13) between each of the roller segments.
7. Apply a thin film of grease that meets or exceeds
NLGI Grade 2 LB specifications to the inside
diameter of the short spacer (15) on the roller shaft
(8).
8. Install jam nut (16) on the roller shaft (8).
9. Ensure the distance from the ends of shaft (8) and
each nut (7 and 16) remain within 0.060 in. (1.53
mm) of each other and tighten nuts to 70 lb-ft
(95 N·m).
10. Check the rotational resistance of the roller assembly
after four revolutions. The resistance should be 6
lb-in. (0.68 N·m) maximum with no end play.
4262930-Rev A
8
11
12
15
16
TN0251
Installation
See Figure 10-25.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
1
2 3
4
5 6
8
7
Figure 10-25
2. Install height-of-cut brackets (8) to both ends of front
roller (4).
3. Rotate shaft (7) until flat on shaft is aligned with
screw (5) and tighten screws (5) and jam nuts (6) on
both ends of front roller.
4. Install cutting unit front roller assembly.
5. Install adjuster knobs (1) to both sides of the mower.
6. Install screws (2) and nuts (3) to both sides of the
mower.
7. Adjust height-of-cut. (See "Height-of-Cut Adjustment
(HOC)" on page 8-17.)
ACCESSORIES
TN0895
10
10-15
