SPECIFICATIONS AND GENERAL INFORMATION

Component Location

Gen-Set Models

See Figures 2-3 and 2-4.
Become familiar with operator controls, machine
components, and correct operating procedures
before beginning repair procedures.
2
12
11
10
9
8
6
7
1 Operator Handle
2 Key Switch
3 Belt Cover
4 Traction Motor
5 Reel Counterweight
6 Reel
7 Floating Head Frame
Roller

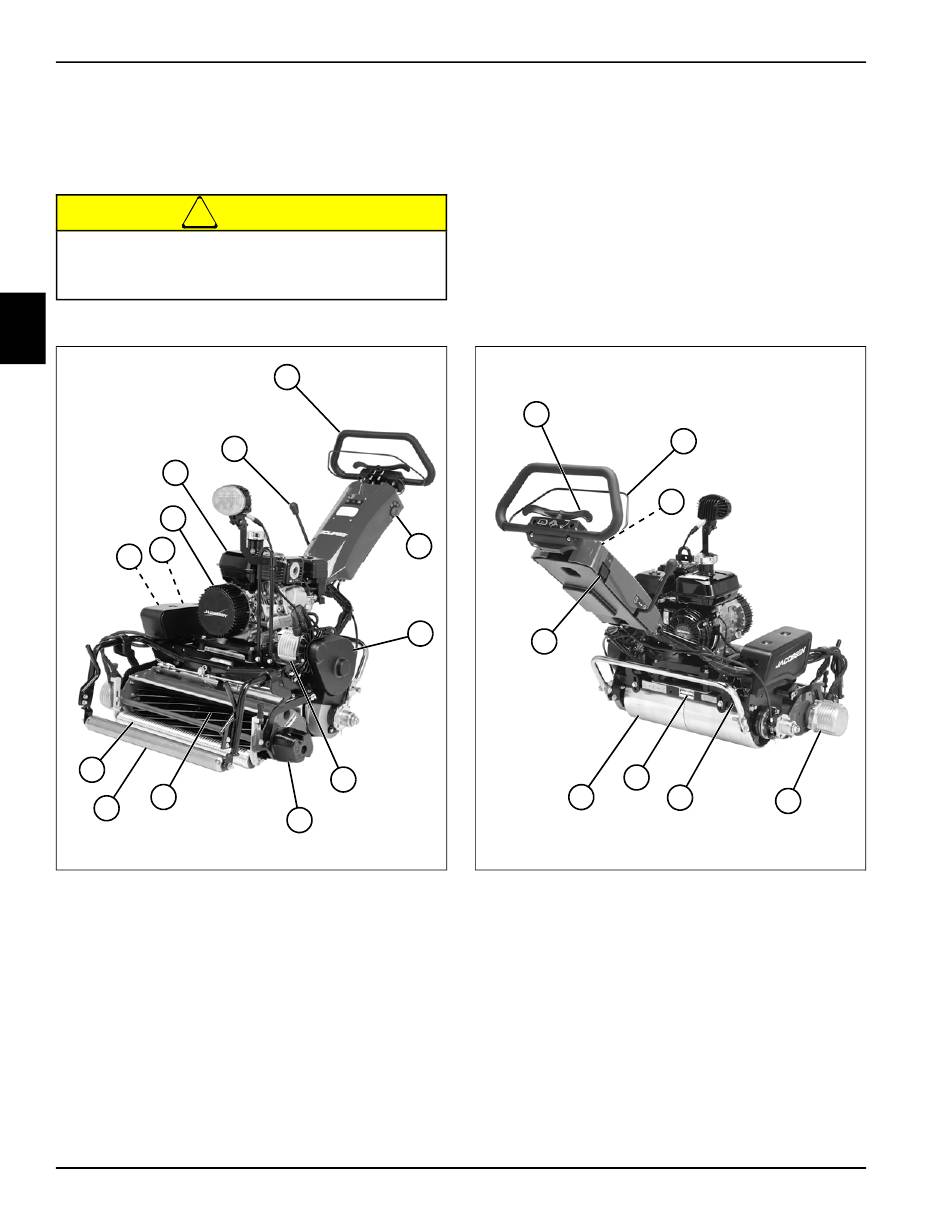

Figure 2-3: Component Location—Front
2-4
!
CAUTION
1
13
4
5
8 Front Roller
9 Traction Motor Controller
10 Reel Motor Controller
11 Gen-Set
12 Engine
13 Park Brake Lever
1
2
3
8
TN4411
1 Speed Control Paddle
2 Operator Presence Control
(OPC) Bail
3 LCD Controls and Display
4 Reel Motor
Figure 2-4: Component Location—Rear
2
3
6
7
5
5 Kickstand
6 Product Identification Plate
7 Traction Drum
8 Mow Switch
4
TN4412
