POWER TRAIN
Component Inspection
See Figures 5-9 through 5-11.
Outer Transfer Pulley
Required Materials
®
Lubriplate Marine Grease
1
5

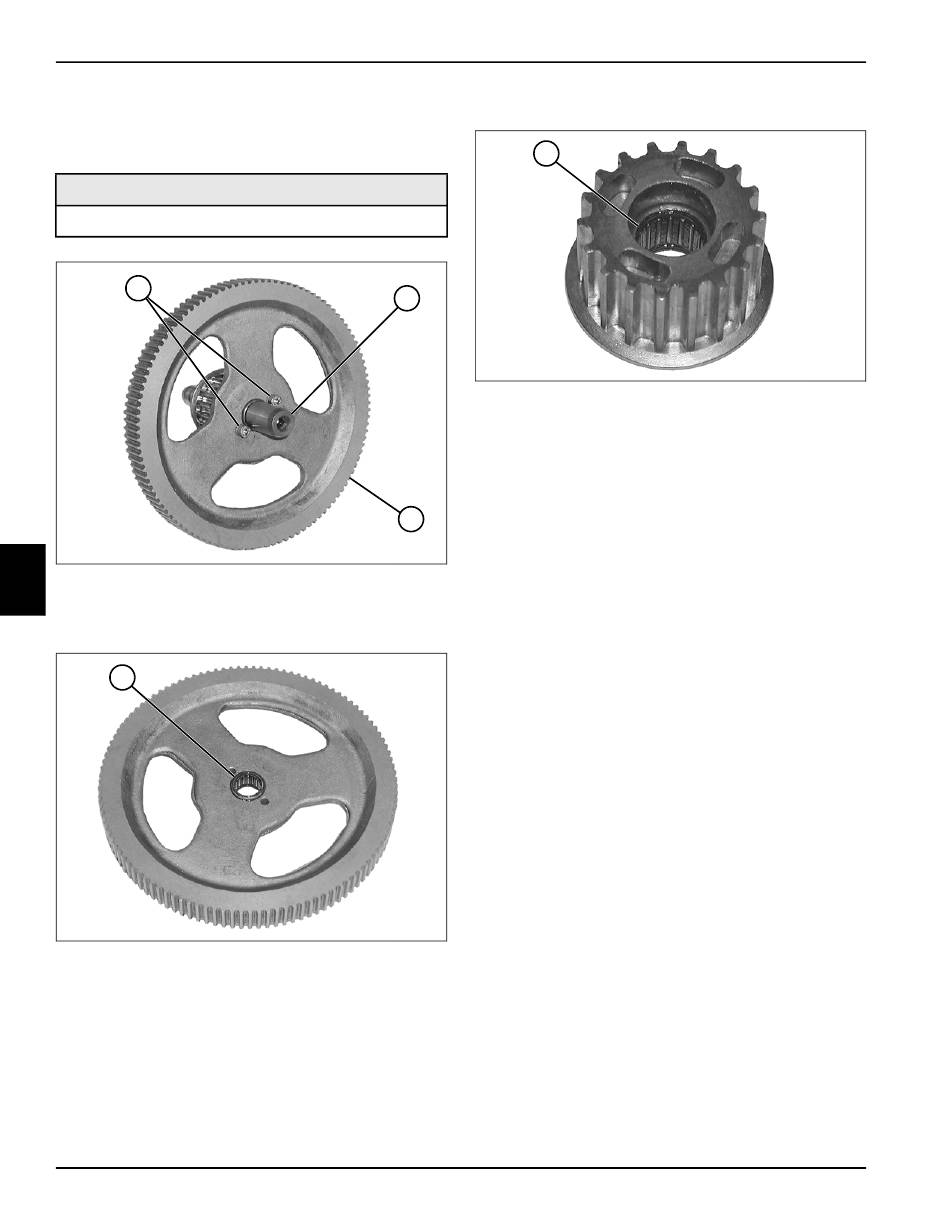

1. Remove screws (1) and slide shaft (2) out of outer
transfer drive pulley (3).
4
2. Inspect the needle bearing (4) for signs of wear or
damage. Replace as needed.
3. Lubricate the bearings with Lubriplate
Grease before installing the pulley on shaft.
5-8
Figure 5-9
Figure 5-10
®
Marine
Inner Transfer Pulley
5
2
4. Inspect the needle bearing (5) for signs of wear or
damage. Replace as needed.
5. Lubricate the bearing with Lubriplate
Grease before installing the pulley on shaft.
3
TN0667
TN0668
Figure 5-11
®
Marine
