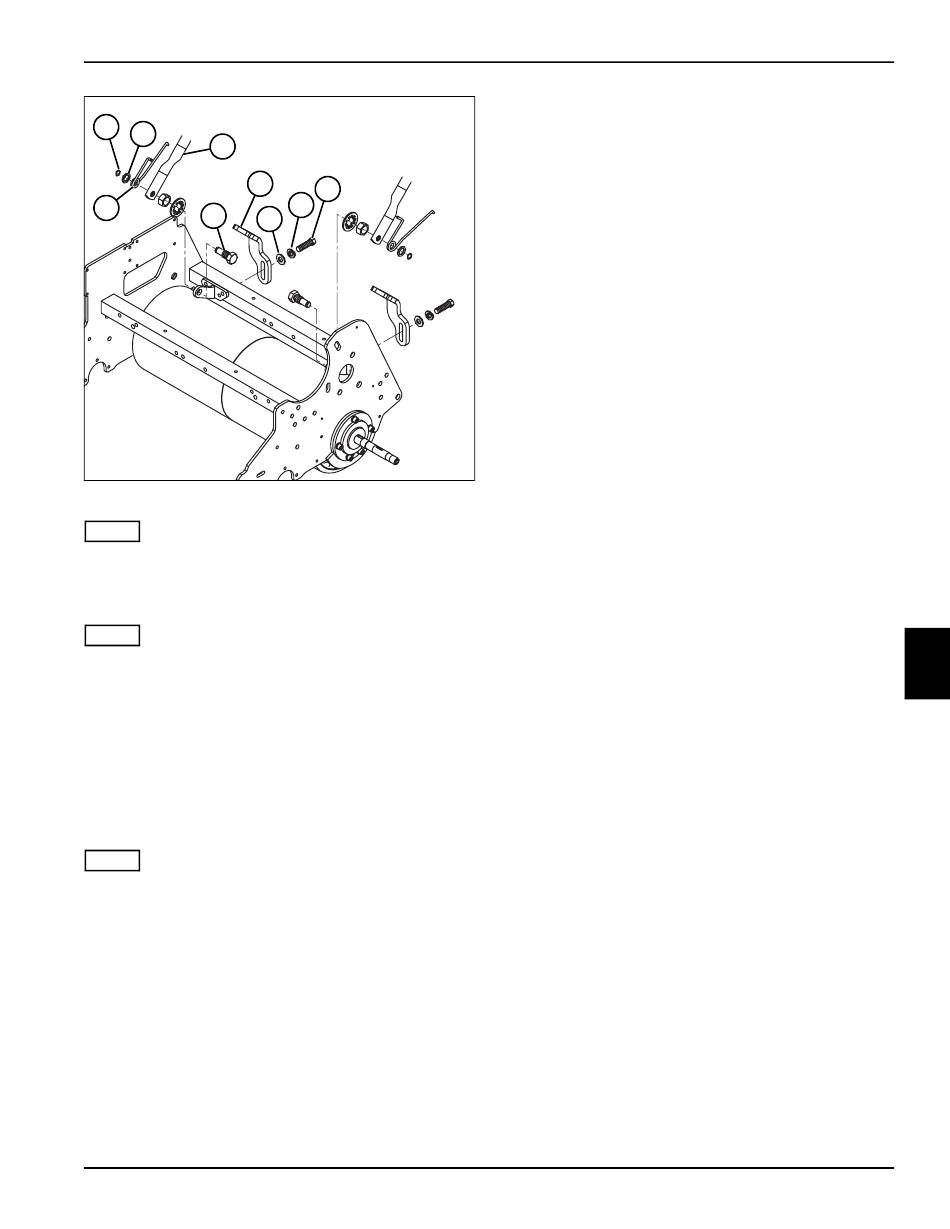

Figure 6-14
NOTE
Note orientation of torsion spring (30) before removal to
ensure correct installation.
19. Disconnect torsion spring (30) from handle stop (25).
NOTE
Support handle assembly before removing mounting
hardware.
20. Remove screw (26), lock washer (27),and flat
washer (28).
21. Remove retaining ring (22), flat washer (23), and
torsion spring (30) from handle mount bolt (29).
22. Remove handle assembly by pressing in on handle
tube (24) until end of tube clears end of handle
mount bolt (29).
NOTE
Note location and orientation of handle stop (25) before
removal to ensure correct installation.
23. Remove handle stop (25) from handle tube (24).
24. Repeat steps 19 through 23 for left side of handle
assembly.
4262930-Rev A
26
27
TN4560
HANDLE AND CONTROLS
Installation Notes
• Install handle assembly by reversing the order of
removal.
• Apply dielectric grease (Jacobsen PN 365422) to any
connectors removed.
• Adjust handle height as needed. (See "Handle
Height Adjustment" on page 6-3.)
• Check brake cable adjustment. Adjust as needed.
(See "Park Brake Check and Adjustment" on
page 7-4.)
