POWER TRAIN
5. Remove two washers (8).
9
5
6. Remove grease seal (9) from the seal cover (10).
11
7. Inspect bearing (12) for wear or damage. Remove
the bearing from the bearing housing (11) only if it is
necessary to replace the bearing.
5-12
8
Figure 5-22
10
Figure 5-23
12
Figure 5-24

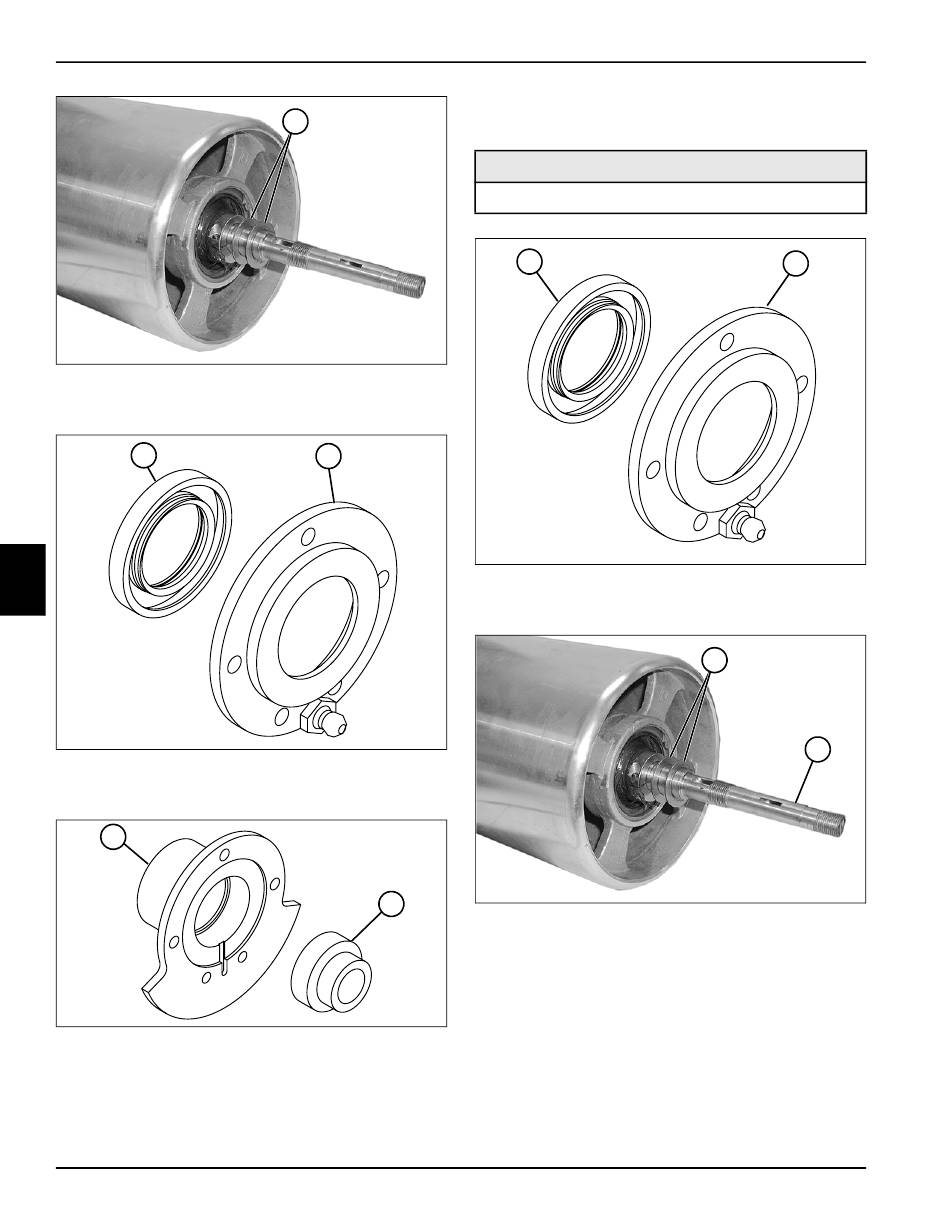

Installation
See Figures 5-25 through 5-29.
®
Loctite Aviation Gasket Sealer (Loctite PN 30516)
1
TN0237
1. Install a new grease seal (1) in the seal cover (2).
TN0238
2. Install two washers (3) on the traction drum shaft (4).
TN0239
Required Materials
Figure 5-25
3
Figure 5-26
4262930-Rev A
2
TN0238
4
TN0237
