Textron JACOBSEN Eclipse 2 Technical/Repair Manual page 172

CUTTING UNIT
Disassembly and Assembly

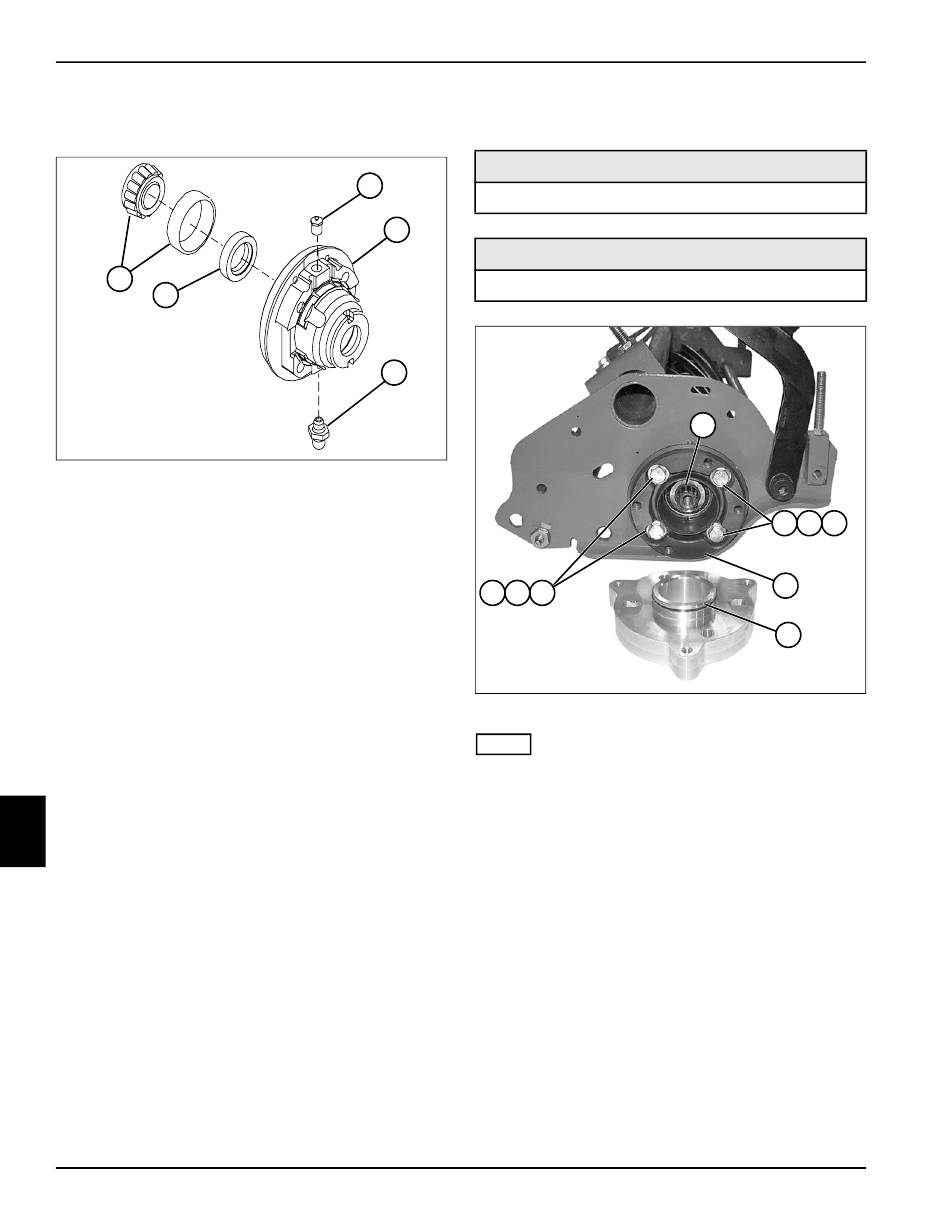

See Figure 8-36.
1
2
1 Bearing Cup and Cone
2 Grease Seal
3 Vent Fitting
Assembly Notes
• Install a new grease seal (2).
• Inspect the bearing cup and cone (1) for wear or
damage. Replace as needed.
• Pack bearing (1) with grease that meets or exceeds
NLGI Grade 2 LB specifications before assembly.
• Apply grease that meets or exceeds NLGI Grade 2
LB specifications to the lips of the grease seal (2).
8
8-26
3
4 Reel Bearing Housing
5 Grease Fitting
Figure 8-36
Installation
See Figures 8-37 and 8-38.
Required Tools or Equipment
Bearing Assembly Tool (Jacobsen PN JAC5084)
4
®
Loctite 242 (Blue) Thread Sealant
5
TN0940
2 3 4
NOTE
Always use new O-rings and seals.
1. Install reel bearing housing assembly (5).
2. Install bearing using bearing assembly tool
(Jacobsen PN JAC5084) and install snap ring (1).
3. Install screws (2), washers (3), and nuts (4).
4. Install O-ring (6), and lubricate with grease that
meets or exceeds NLGI Grade 2 LB specifications.
Required Materials
1
Figure 8-37
4262930-Rev A
2 3 4
5
6
TN0908
