ELECTRICAL

Operator Mode

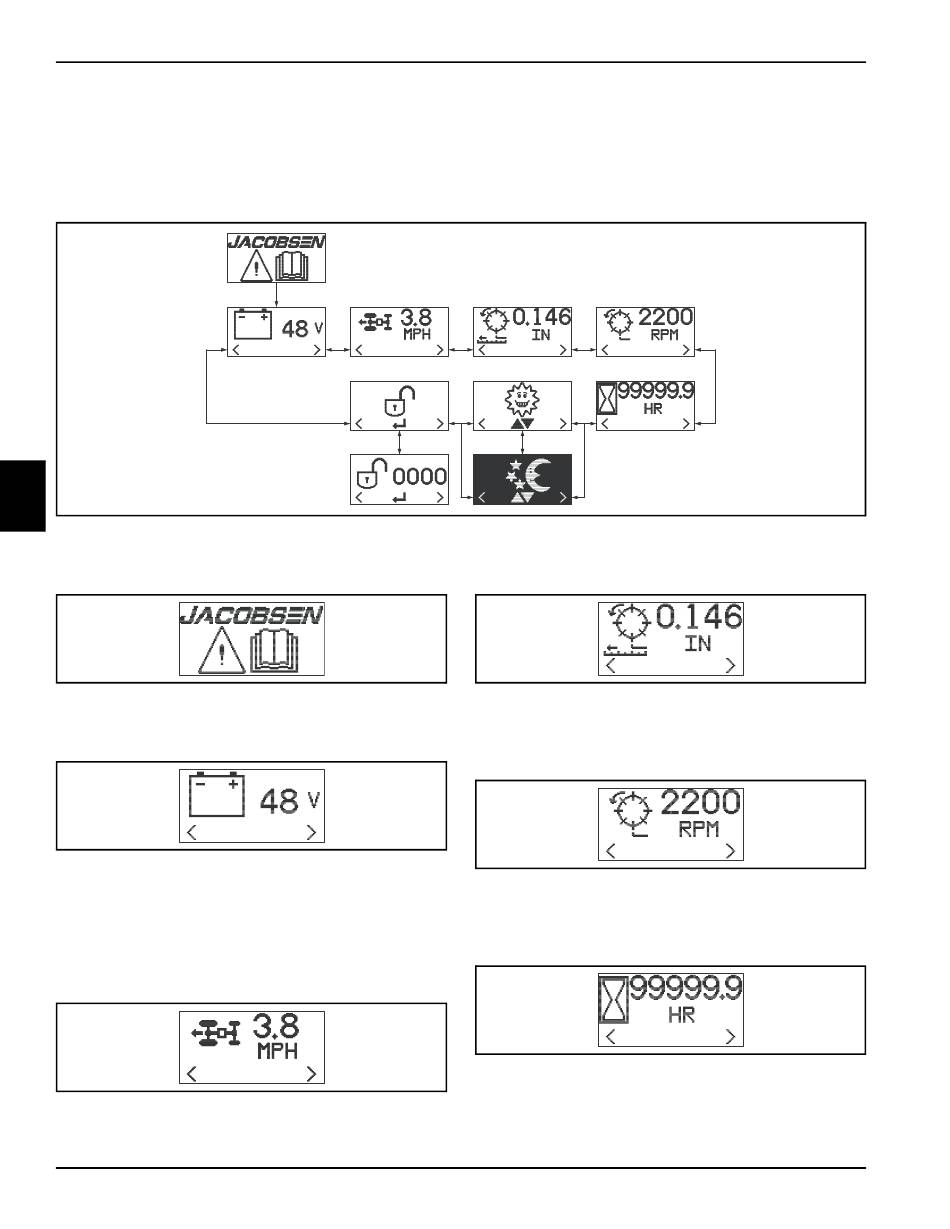

See Figure 4-19.
Operator Mode is used by the operator for system voltage information, travel speed, FOC setting, reel speed, and total
hours on mower. Press the orange buttons on the front handle cover to toggle between the different displays. Operator
Mode is view only; only screen illumination can be changed.
4
Start-Up Screen
Displays for up to five seconds when system is started.
System Voltage
Displays system voltage. Screen will be replaced with
alert screen when system voltage drops below 38 volts
for gen-set models or 42 volts for battery pack models or
if voltage rises above 66 volts.
Travel Speed
Displays the current ground speed of the machine.
4-38
Figure 4-19
FOC Setting
TN4464
Displays FOC (Frequency of Clip) setting. When FOC is
set to 0, reel will operate at the fixed reel speed.
Fixed Reel Speed
TN4472
Displays fixed reel speed setting. Fixed reel speed
setting is not used for any FOC other than 0.
Hour Meter
Displays total hours unit has been operated.
TN4513
TN4515
TN4473
TN4474
TN4475
4262930-Rev A
