SPECIFICATIONS AND GENERAL INFORMATION

Mower Identification

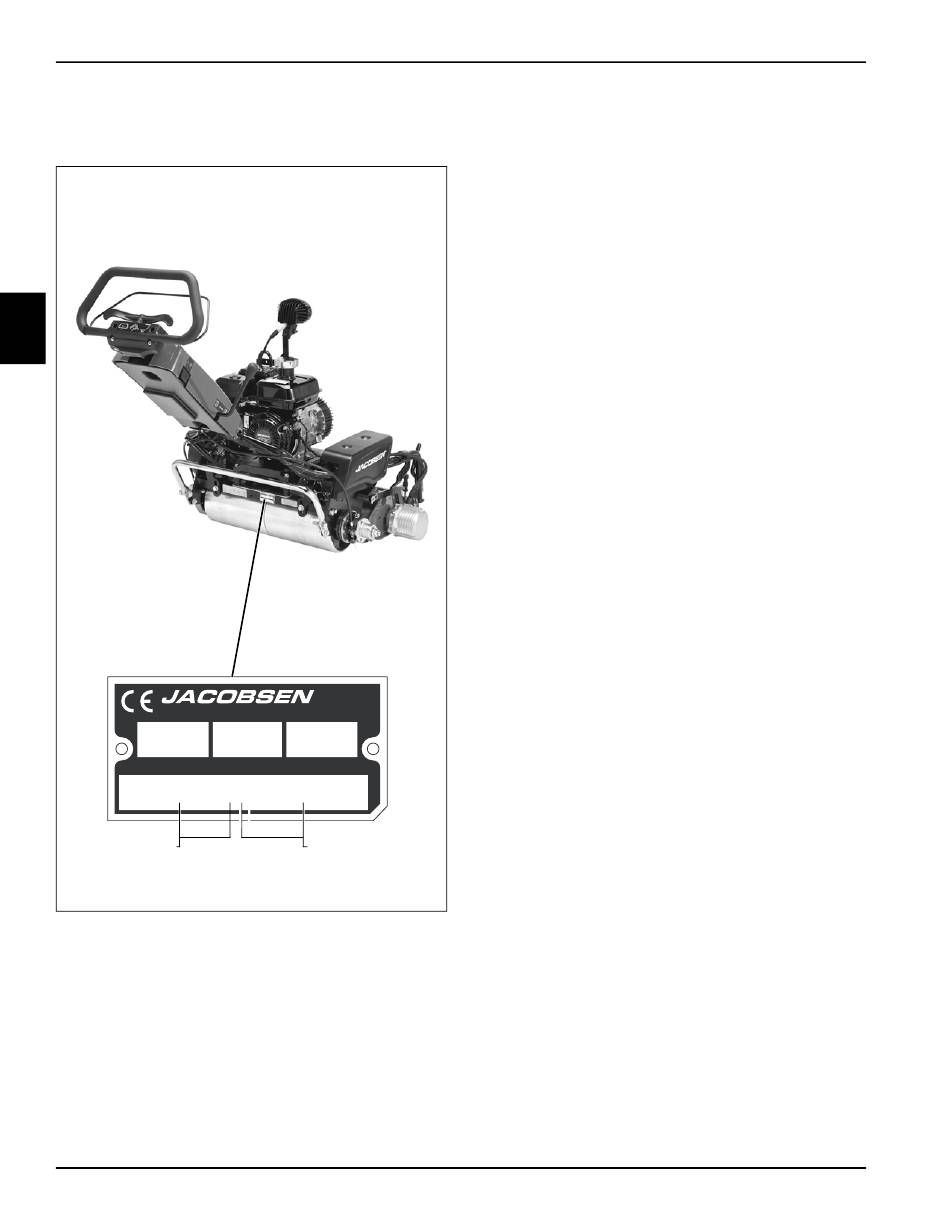

See Figure 2-1.
2
PRODUCT OF U.S.A.
XX.X
kg
XXXXXXXXXXX
Model
Identification
Number

Serial Number

An identification plate like the one shown, listing the
serial number, is attached to the rear frame.
Always provide the serial number of the unit when
ordering replacement parts or requesting service
information.
2-2
®
11524 WILMAR BLVD,
CHARLOTTE, NC 28273
A Textron Company
1-800-848-1636 (US)
X.X XXXX
kW
Serial
Number
TN4394, TN4412
Figure 2-1

Model Identification Number

63336
®
Eclipse 2 118F Gen-Set powered (11-blade,
18-inch floating head reel) with InCommand™
control system, Operator Presence Control (OPC),
brakes, and kickstand.
63337
®
Eclipse 2 118F Gen-Set powered (15-blade,
18-inch floating head reel) with InCommand™
control system, Operator Presence Control (OPC),
brakes, and kickstand.
63340
®
Eclipse 2 122F Gen-Set powered (11-blade,
22-inch floating head reel) with InCommand™
control system, Operator Presence Control (OPC),
brakes, and kickstand.
63341
®
Eclipse 2 122F Gen-Set powered (15-blade,
22-inch floating head reel) with InCommand™
control system, Operator Presence Control (OPC),
brakes, and kickstand.
63345
®
Eclipse 2 118F Battery Pack powered (11-blade,
18-inch floating head reel) with InCommand™
control system, Operator Presence Control (OPC),
brakes, and kickstand.
63346
®
Eclipse 2 118F Battery Pack powered (15-blade,
18-inch floating head reel) with InCommand™
control system, Operator Presence Control (OPC),
brakes, and kickstand.
63349
®
Eclipse 2 122F Battery Pack powered (11-blade,
22-inch floating head reel) with InCommand™
control system, Operator Presence Control (OPC),
brakes, and kickstand.
63350
®
Eclipse 2 122F Battery Pack powered (15-blade,
22-inch floating head reel) with InCommand™
control system, Operator Presence Control (OPC),
brakes, and kickstand.

Optional Machine Accessories

This manual is structured to cover all basic machine
components and repair. The addition of accessories can
affect certain troubleshooting, adjustment, and repair
procedures.
If the machine requiring service is equipped with an
accessory kit, see Section 10, "Accessories" for
troubleshooting, removal, repair, and installation
procedures.
4262930-Rev A
