ENGINE

Repair

Engine
Removal

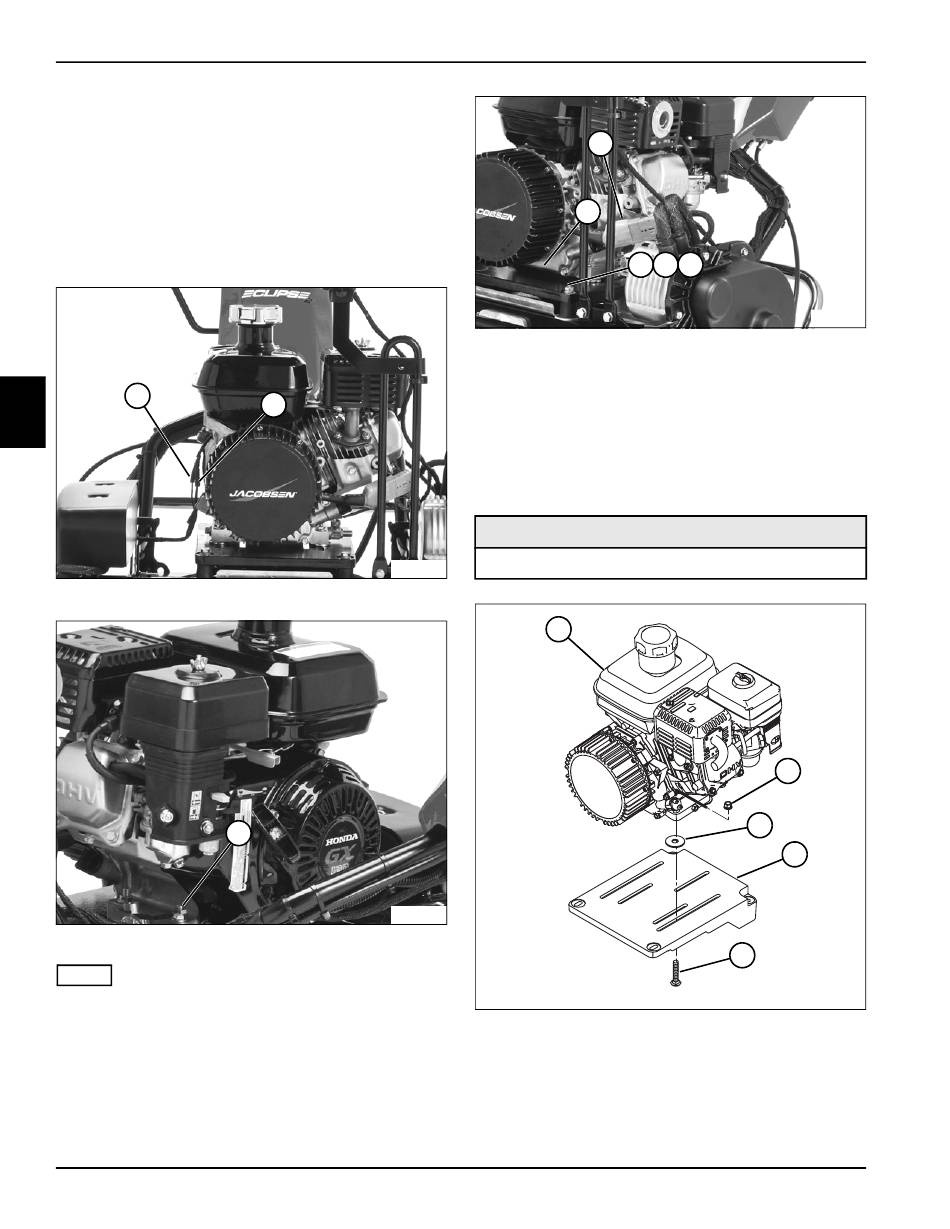

See Figures 3-1 through 3-3.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
1
3
NOTE
Label all wires before disconnecting to ensure correct
installation.
2. Disconnect engine harness wire connectors
(1 and 2).
3. Disconnect ground wire ring terminal (3).
3-4
2
Figure 3-1
3
Figure 3-2
4. Disconnect gen-set harness connector (4).
5. Remove four screws (5), lock washers (5), and flat
washers (6).
6. Remove engine and mount plate (8) as an assembly.
Disassembly and Assembly
See Figure 3-4.
Dielectric Grease (Jacobsen PN 365422)
TN4401
1
TN4395
1 Engine Assembly
2 Flange Nut (4)
3 Flat Washer (4)
4
8
5 6 7
Figure 3-3
Required Materials
3
5
4 Power Source Mount
5 Carriage Bolt (4)
Figure 3-4
TN4397
2
4
TN4402
4262930-Rev A
