Repair

Light Kit Assembly

Removal and Installation

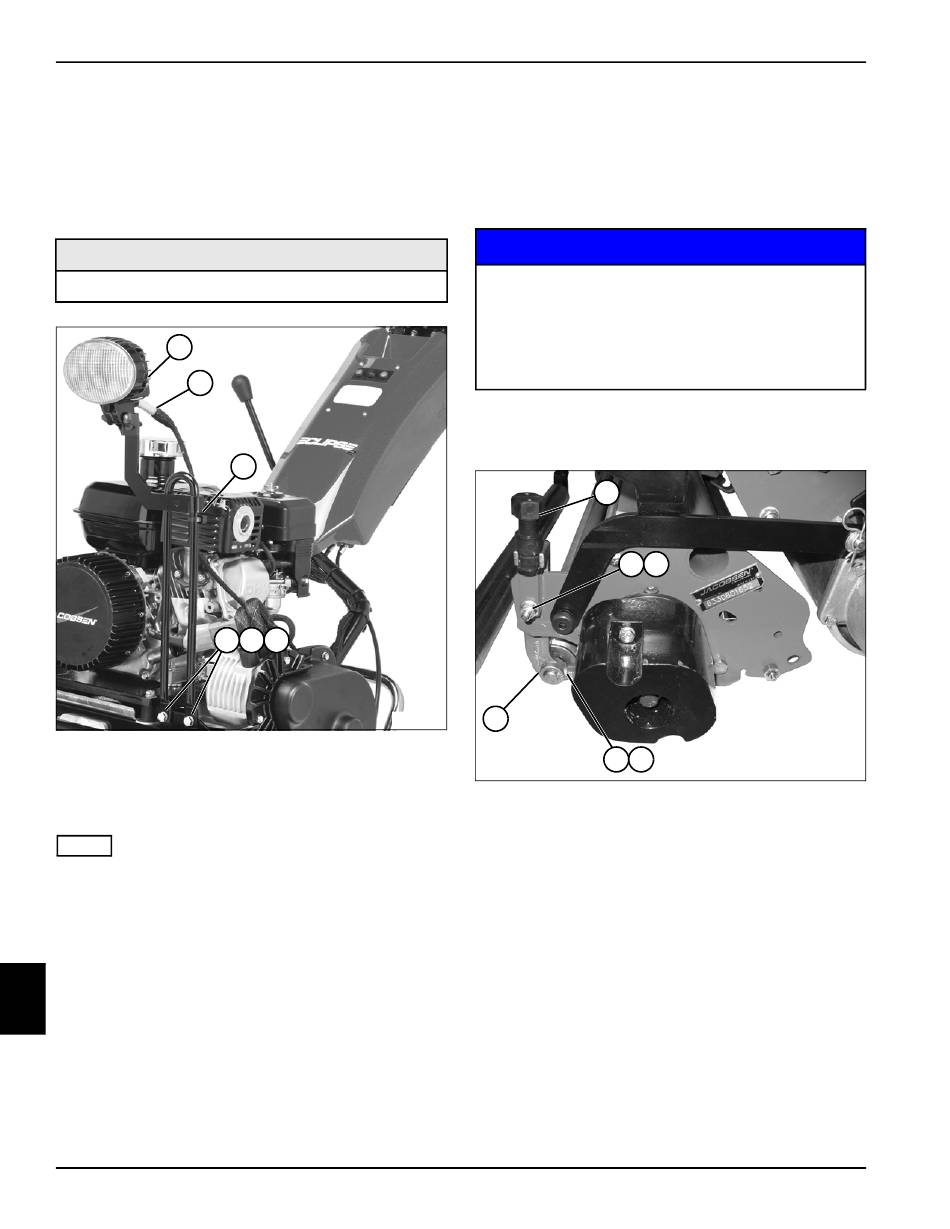

See Figure 10-9.
Required Materials
Dielectric Grease (Jacobsen PN 365422)
1
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
2. Cut cable tie (3).
NOTE
Label all wires before disconnecting to ensure correct
installation.
3. Disconnect work light harness connector (2).
4. Remove two nuts (4), lock washers (5), screws (6),
and work light bracket assembly (1).
10
Installation Notes
• Install work light assembly by reversing the order of
removal.
• Apply dielectric grease (Jacobsen PN 365422) to any
connectors removed.
• Use new cable tie to secure wire harness.
10-8
2
3
4 5 6
Figure 10-9

Cutting Unit Front Roller

Removal
See Figure 10-10.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
Gen-Set Models: Before tipping mower back for
service, the fuel lever must be moved to the OFF
position to prevent fuel from leaking into the
crankcase. Do not leave the mower tipped back
for an extended length of time or oil may migrate
into the combustion chamber.
2. Tip mower back on traction drum or tires. Support the
mower to prevent it from tipping.
6
TN4397
3. Remove nuts (2) and screws (3) from both sides of
the mower.
4. Remove adjuster knobs (1) from both sides of the
mower.
5. Remove the cutting unit front roller assembly (6).
6. Loosen jam nuts (4) and screws (5) on each side of
the mower. Remove the roller from height-of-cut
brackets.
NOTICE
1
2 3
4 5
Figure 10-10
