ACCESSORIES
4. Remove short spacer (3) from roller shaft (2).
11
12
TN0252
NOTE
All three roller segment assemblies are disassembled in
the same way.
5. Remove grease seals (11 and 15), ball bearings
(12 and 16), and spacer (13) from the roller segment
(14).
10
10-14
13
14
16
15

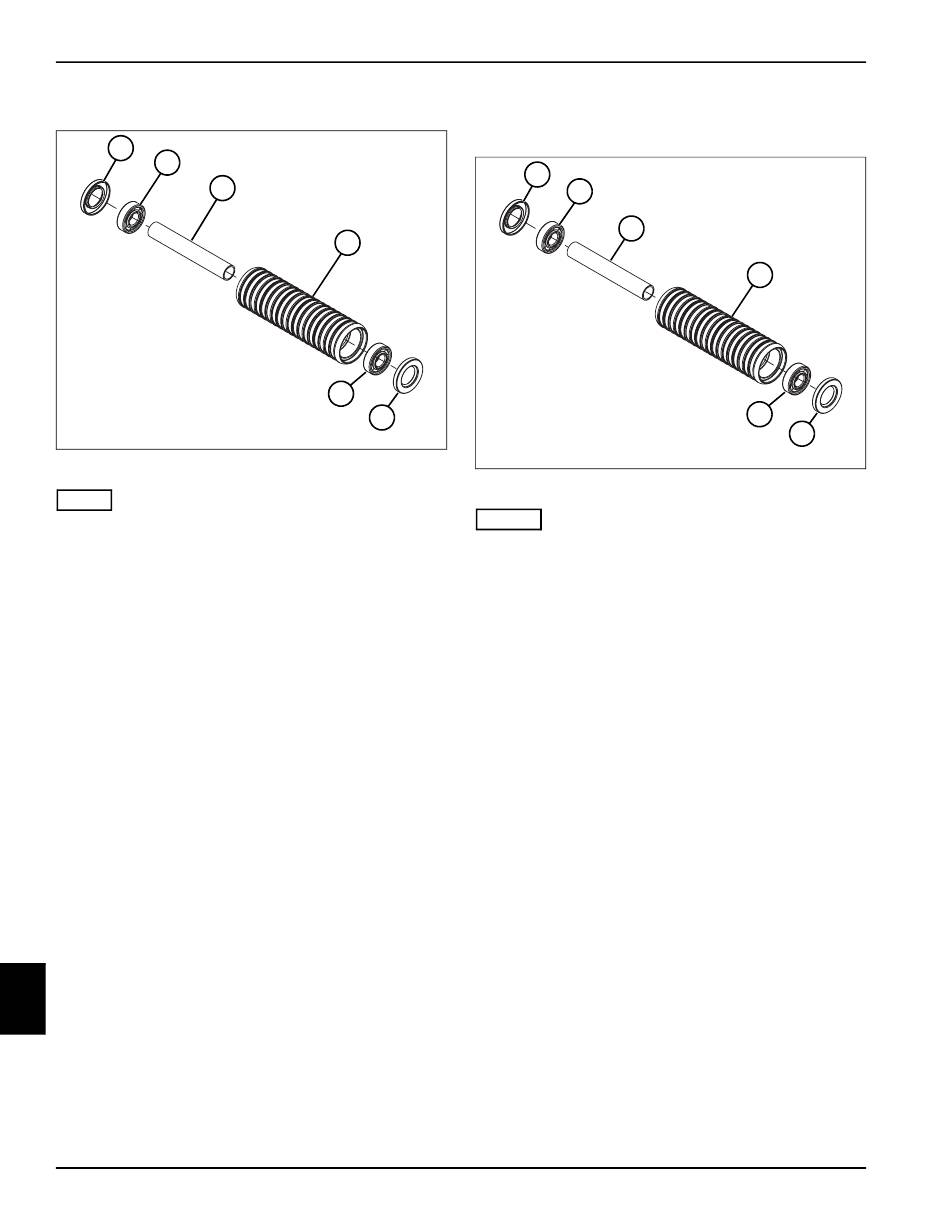

Figure 10-22
Assembly—Grooved Segmented Roller
See Figures 10-23 and 10-24.
1
2
TN0252
TN0252
NOTES
• All three roller segment assemblies are assembled in
the same way.
• Always use new grease seals for installation.
1. Install a ball bearing (2) and a new grease seal (1) in
one end of the roller segment (4).
2. Apply grease that meets or exceeds NLGI Grade 2
LB specifications to the inside of the spacer (3), and
install the spacer (3) into the roller segment (4).
3. Install a ball bearing (6) and grease seal (5) in the
other end of the roller segment (4).
4. Apply grease that meets or exceeds NLGI Grade 2
LB specifications to the lips of the grease seals
(1 and 5).
3
4
6
5
Figure 10-23
4262930-Rev A
