Traction Motor Test - Textron JACOBSEN Eclipse 2 Technical/Repair Manual

ELECTRICAL

Traction Motor Test

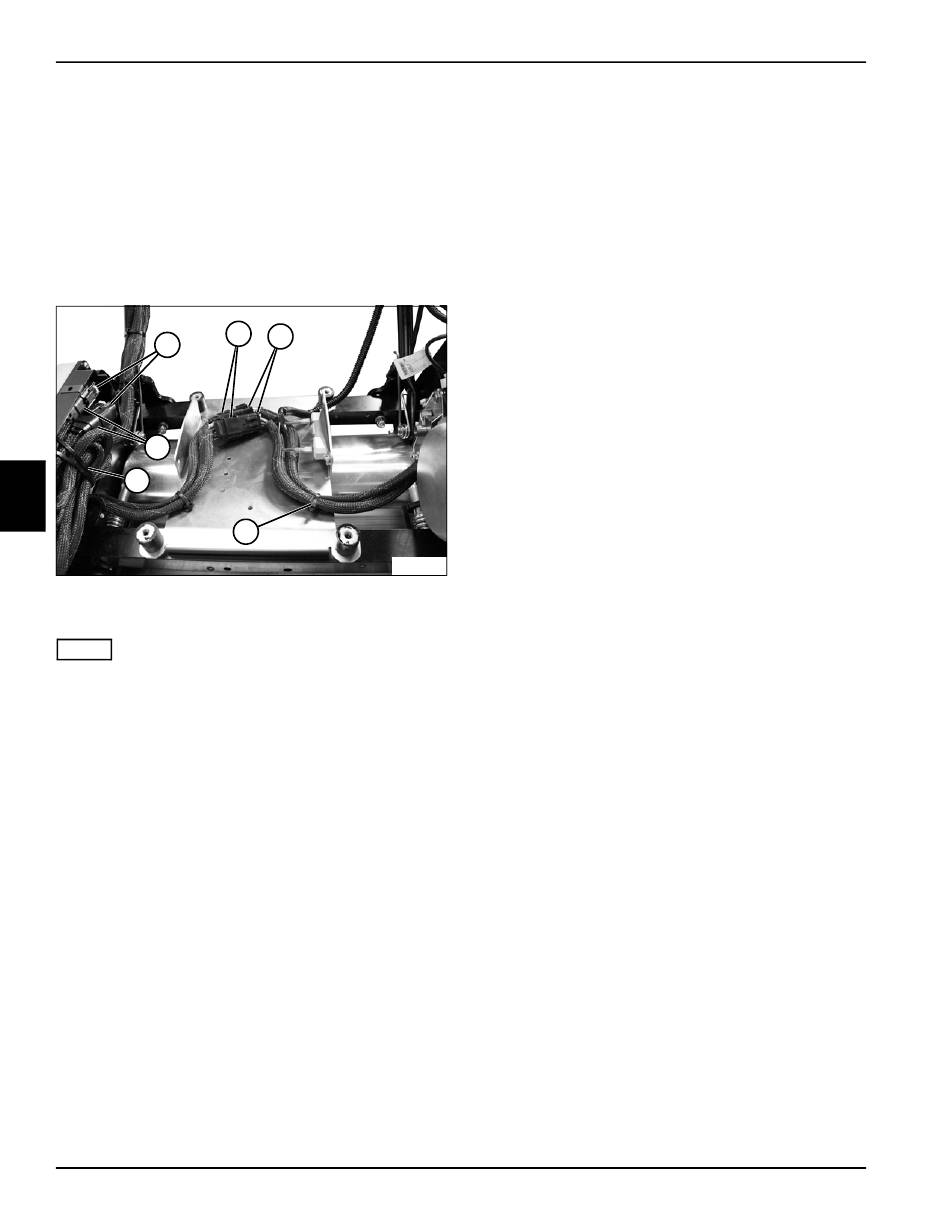

See Figure 4-33.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
2. For battery pack powered mowers, remove power
module. (See "Battery Tray and Power Module
Mount" on page 4-69.)
3. For gen-set powered mowers, remove engine. (See
"Engine" on page 3-4.)
1
5
4
4
4. Cut cable ties (4).
NOTE
Label all wires before disconnecting to ensure correct
installation.
5. Disconnect traction motor harness connectors (3)
from traction control unit harness connectors (2).
6. Disconnect reel motor harness connectors (5) from
reel control unit harness connectors (1).
7. Connect traction motor harness connectors (3) to
reel control unit harness connectors (1). Do not
connect reel motor harness connectors (5).
8. For battery pack powered mowers, install power
module. (See "Battery Tray and Power Module
Mount" on page 4-69.)
9. For gen-set powered mowers, install engine. (See
"Engine" on page 3-4.)
10. Move key switch to the start/on position. Engage
mow switch and Operator Presence Control (OPC)
bail.
Does traction motor engage?
YES Traction motor is good.
NO Traction motor is faulty; replace the traction
motor.
11. Disengage OPC bail and mow switch. Move key
switch to the off position.
4-52
2
3
4
Figure 4-33
12. For battery pack powered mowers, remove power
module. (See "Battery Tray and Power Module
Mount" on page 4-69.)
13. For gen-set powered mowers, remove engine. (See
"Engine" on page 3-4.)
14. Disconnect traction motor harness connectors (3)
from reel control unit harness connectors (1).
15. Connect reel motor harness connectors (5) to reel
control unit harness connectors (1).
16. Connect traction motor harness connectors (3) to
traction control unit harness connectors (2).
17. Install new cable ties (4).
18. For battery pack powered mowers, install power
module. (See "Battery Tray and Power Module
Mount" on page 4-69.)
19. For gen-set powered mowers, install engine. (See
"Engine" on page 3-4.)
TN4630
4262930-Rev A
