Textron JACOBSEN Eclipse 2 Technical/Repair Manual page 195

Disassembly—Solid Rollers

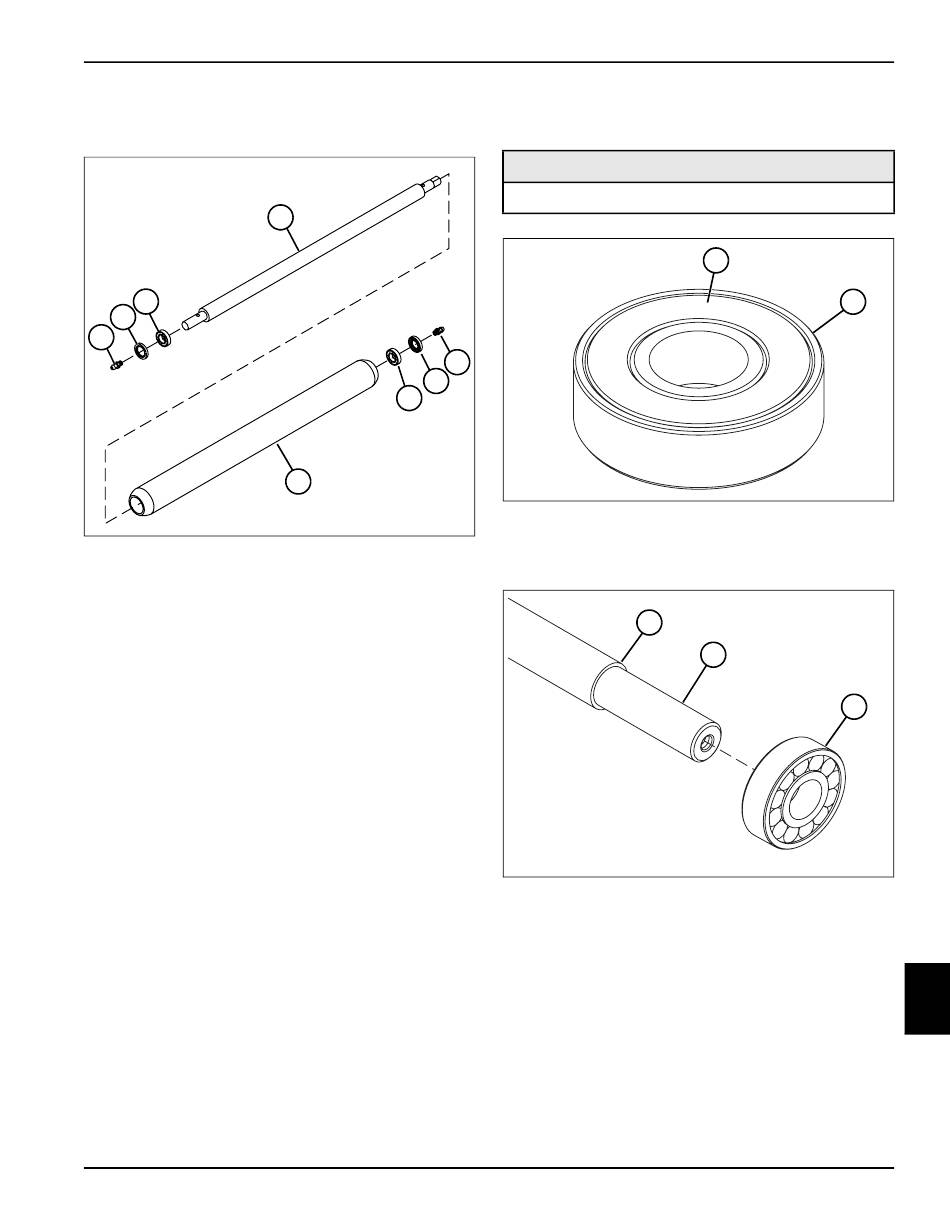

See Figure 10-11.
3
2
1
Figure 10-11
1. Remove grease fittings (1 and 5) from the roller shaft
(4).
2. Support one end of the roller (8), allowing enough
free space for the seal (6) and bearing (7) to exit the
roller (8).
3. Apply pressure to the other end of the roller shaft (4)
until the seal (6) and bearing (7) are clear of the roller
(8).
4. Repeat steps 2 and 3 to remove the seal (2) and
bearing (3) from the other end of the roller (8).
4262930-Rev A
4
5
6
7
8
TN0312
Assembly—Solid Rollers
See Figures 10-12 through 10-16.
Required Materials
®
Permatex Anaerobic Sealer (or equivalent)
Figure 10-12
1. Remove the shield (1) from one side of each new
bearing (2).
3
Figure 10-13
2. Pack the bearing (5) with grease that meets or
exceeds NLGI Grade 2 LB specifications before
installation.
3. Install one bearing (5) on the roller shaft (4) with the
shielded side toward the step (3) on the shaft. Press
the bearing on the shaft until it rests against the step.
ACCESSORIES
1
2
TN0314
4
5
TN0315
10-9
