Installation

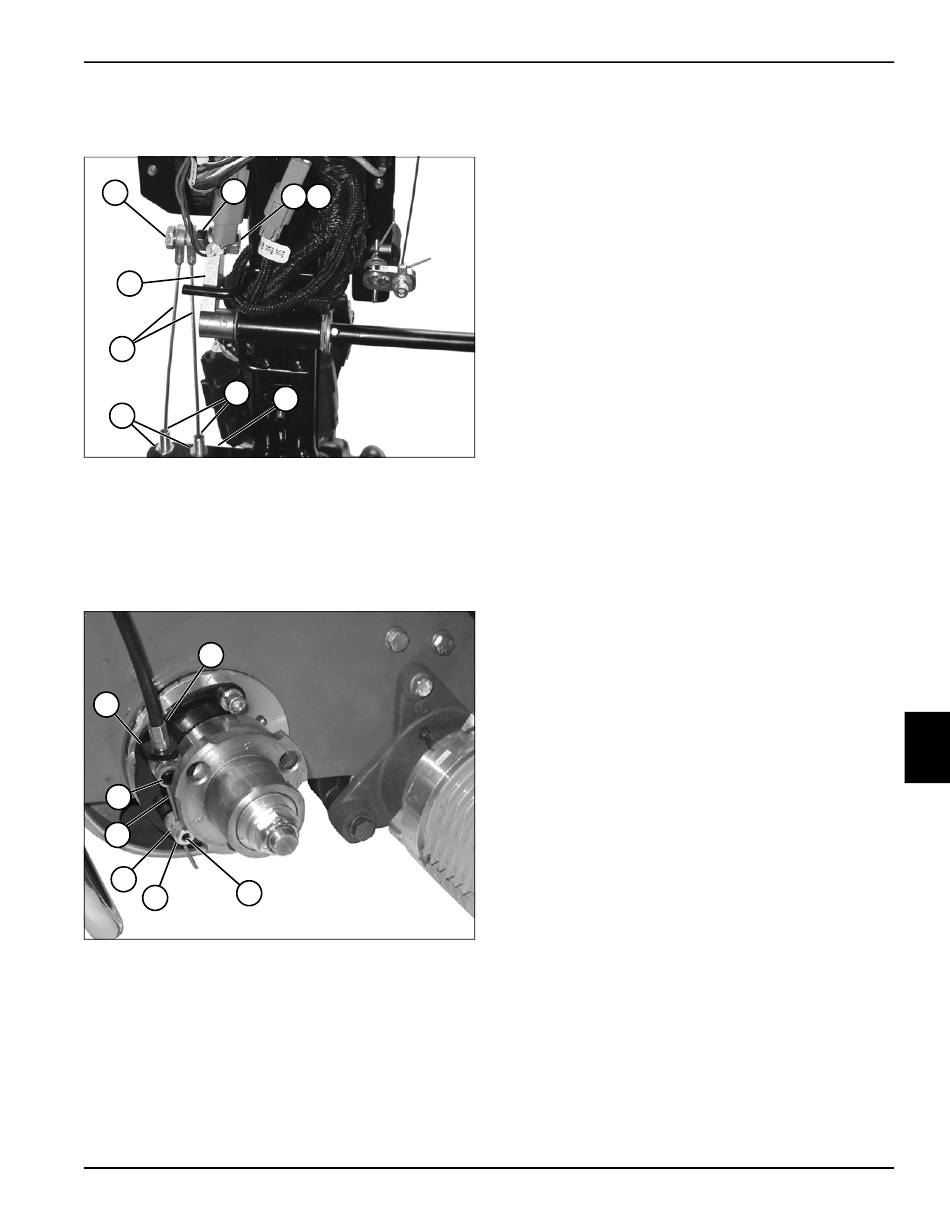

See Figures 7-8 and 7-9.
2
1
9
8
6
7
Figure 7-8
1. Slide brake cable sheaths (6) into bracket (5) and
secure with jam nuts (7).
2. Install screw (1) through cables (8) and install nut (2).
3. Install screw (1) on brake lever arm (9) and secure
using lock washer (3) and nut (4).
11
10
16
15
14
12
13
Figure 7-9
4. Install lower brake band pin (13) into brake band
(14).
5. Route end of brake cable (15) through bracket (10),
upper brake band pin (16), and lower brake band pin
(13).
6. Position brake band so upper brake band pin (16)
rests against end of cable sheath (11).
4262930-Rev A
3 4
5
TN4641
TN4407
7. Move free end of brake band until distance between
center of park brake band pins (13 and 16) is
approximately 1.50 in. (38 mm). Tighten set screw
(12).
8. Check brake adjustment. (See "Park Brake Check
and Adjustment" on page 7-4.)
