Traction Drum Left Bearing Housing - Textron JACOBSEN Eclipse 2 Technical/Repair Manual

19
20
17 18

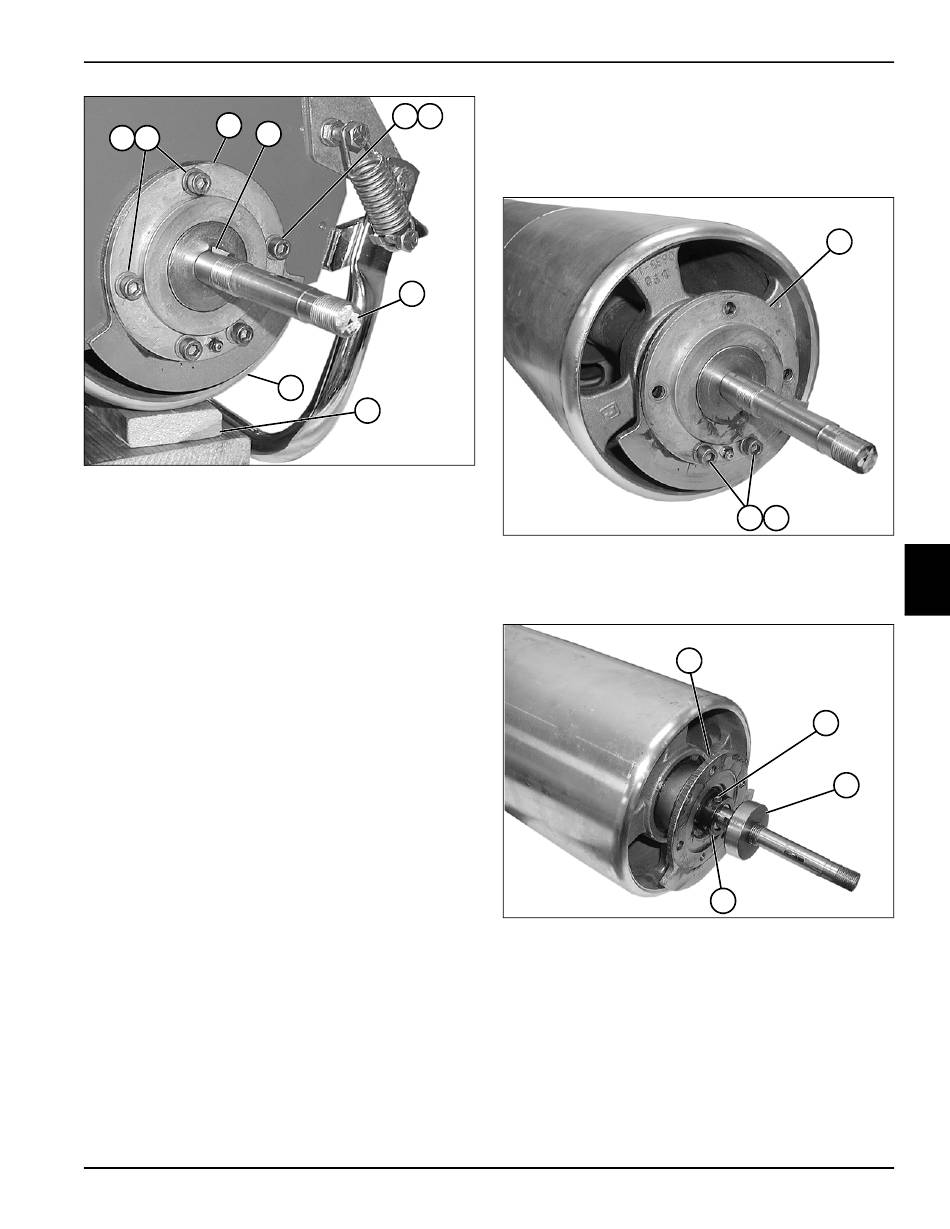

Figure 5-19
10. Remove key (20) from traction drum shaft (21).
11. Remove three screws (17) and lock washers (18)
from bearing housing (19).
12. Remove support blocks (23) and lower the traction
drum assembly (22).
13. Lift the mower and remove the traction drum
assembly (22).
Installation Note
Install traction drive drum and bearing housing assembly
by reversing the order of removal.
4262930-Rev A
17 18
21
22
23
TN0822

Traction Drum Left Bearing Housing

Removal
See Figures 5-20 through 5-24.
Figure 5-20
1. Remove two screws (2) and lock washers (3), and
remove the seal cover (1).
Figure 5-21
2. Remove spacer (6).
3. Loosen set screw (5) and remove locking collar (7).
4. Remove bearing housing (4).
POWER TRAIN
1
2
3
TN0235
4
5
6
7
TN0236
5-11
5
