Installing the Top Mounting Tray Assembly

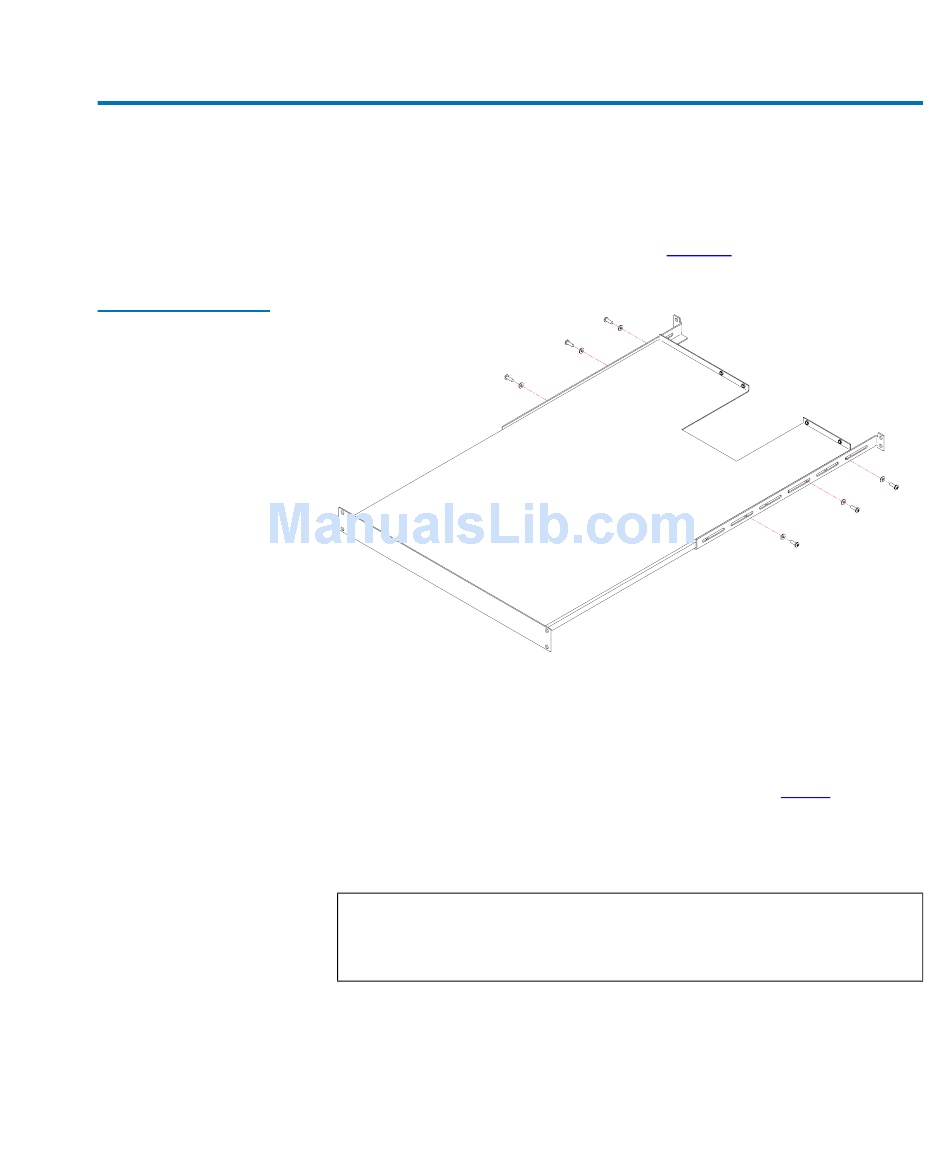

Figure 3 Adjusting the
Depth of the Top
Mounting Tray
Assembly
To install the top mounting tray assembly in the rack:
1 Remove the six screws and washers securing the rear support arms to
the sides of the top mounting tray (see
2 Adjust the position of the rear support arms on the top mounting tray
until the distance between the front and rear flanges is approximately
the same as the distance between the front and rear mounting strips
in the rack.
3 Replace the six screws and washers you removed in
finger-tighten them. Position the front and rear screws as far apart as
the slots allow. Position the third screw approximately in the middle
slot.
Do not over-tighten the screws. You need to be able to
Note:
extend or retract the rear support arms slightly as you
install the top mounting tray assembly.
ATL StackLink™ Installation Instructions
Chapter 1 Installing the StackLink
Installing the Top Mounting Tray Assembly
figure
3).
1
step 1
and
7
