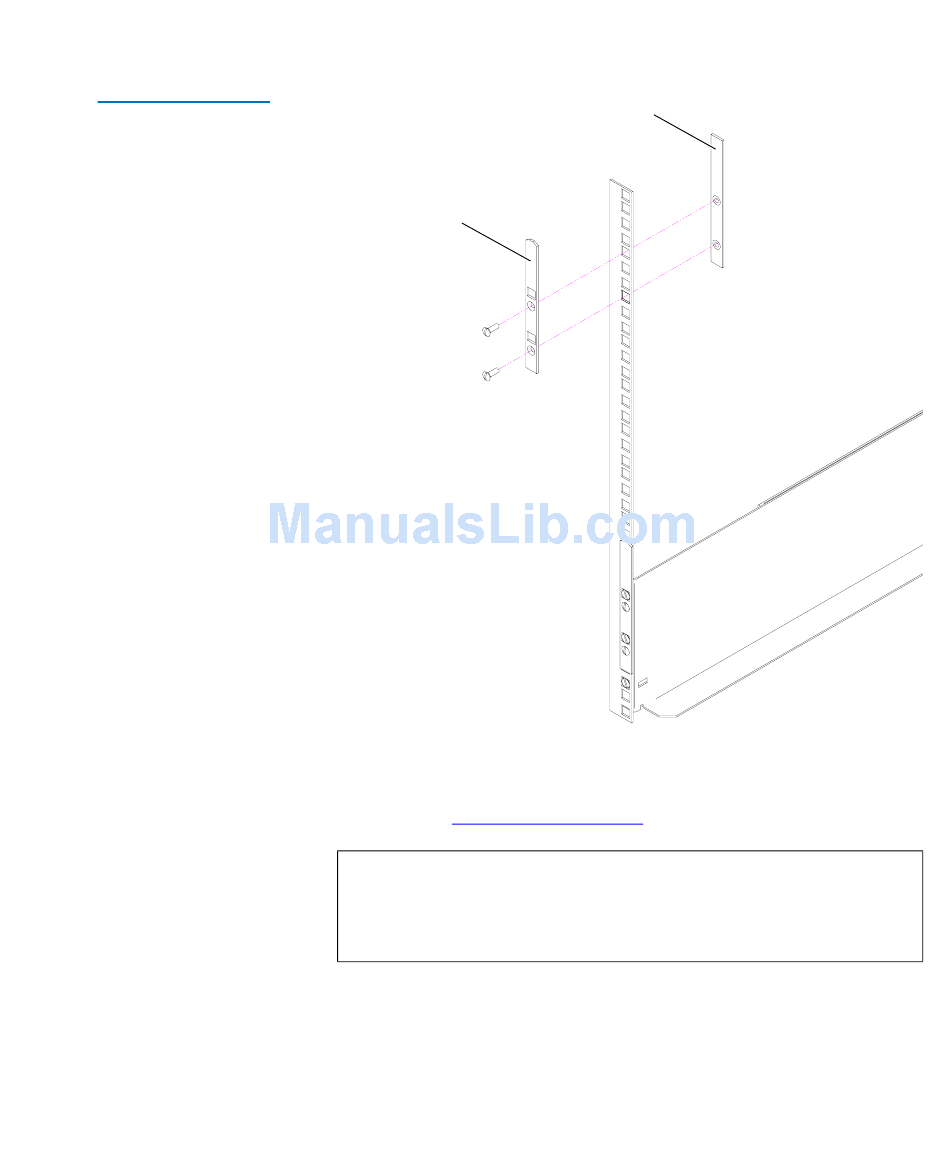

Figure 27 Installing
the Clamp Strips
Front shelf clamp
9 Tighten the nuts securing the shelves to the shelf extenders.
Once you have installed all the rack mount shelves, proceed to the
next chapter,
Installing the Libraries
The universal rack mount kit contains screws and nuts for
Note:
many different types of rack. You will have many of these
screws and nuts left over after installing the rack mount
shelves and library.
ATL StackLink™ Installation Instructions
Chapter 2 Installing the Rack Mount Shelves
Clamp strip
on page 47.
Installing the Shelves
39
