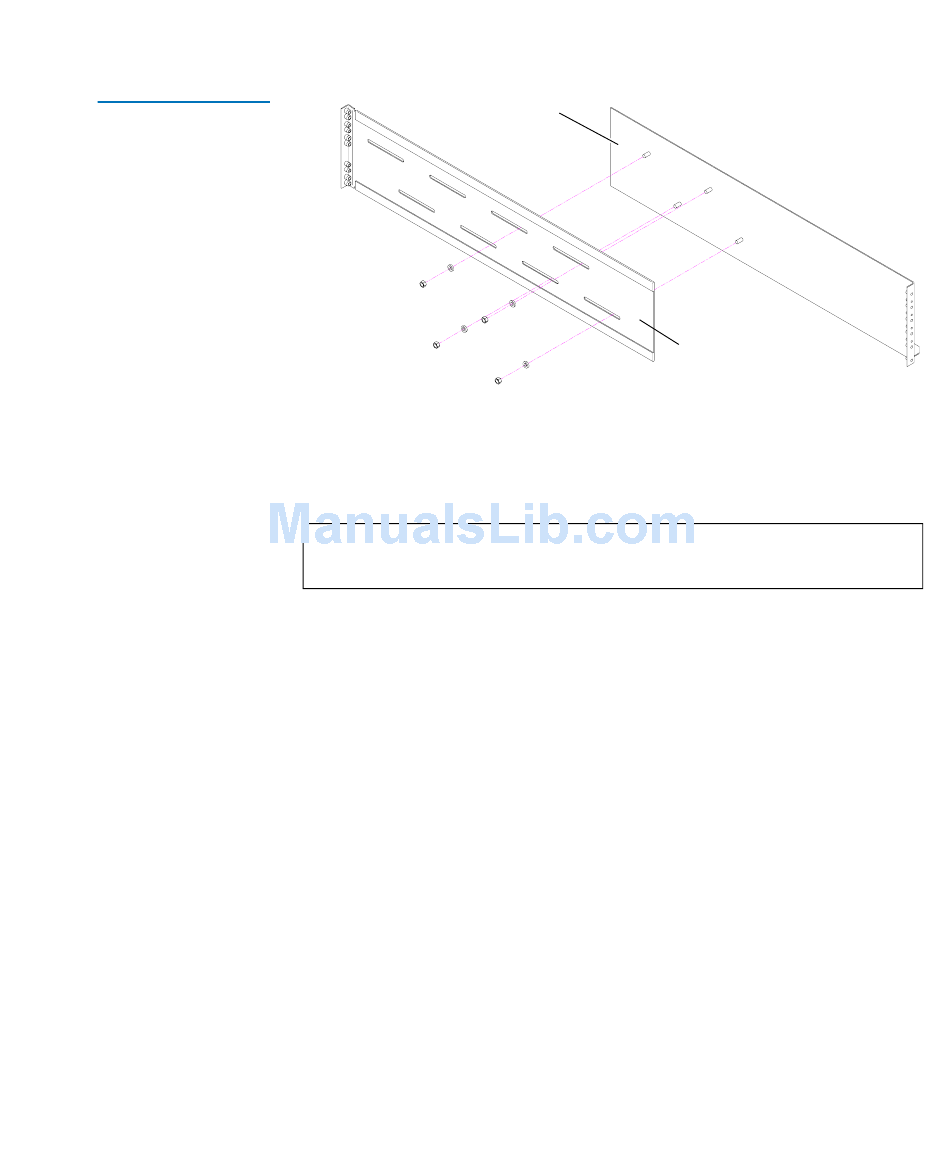

Figure 21 Attaching
the Shelves to the
Extenders
Installing the Shelves in a Half U Position
To install the rack mount shelves in a half U position:
The top and bottom libraries in a 3-high ATL M2500 stack are
Note:
mounted in a half U position.
1 From the six sizes of inserts provided in the rack mount kit, select the
insert type that best fits the holes in your rack rails. The insert part
numbers are:
• 213468 (for rails with 9 mm square holes)
• 213469 (for rails with 7 mm diameter unthreaded holes)
• 213471 (for rails with M6 threaded holes)
• 213473 (for rails with 10-32 UNF, 12-24 UNC, or M5 threaded
holes)
• 213474 (for rails with 1/4 inch diameter unthreaded holes)
The heads of the inserts (not the threads) should fit into the holes in
the rack rails smoothly and with very little play.
2 Once you have selected the inserts you will use, set the remaining
inserts aside. You do not need them for this installation.
ATL StackLink™ Installation Instructions
Chapter 2 Installing the Rack Mount Shelves
Shelf
Extender
Installing the Shelves
2
33
