Installing Tape
Drives in an
3
ATL M1500

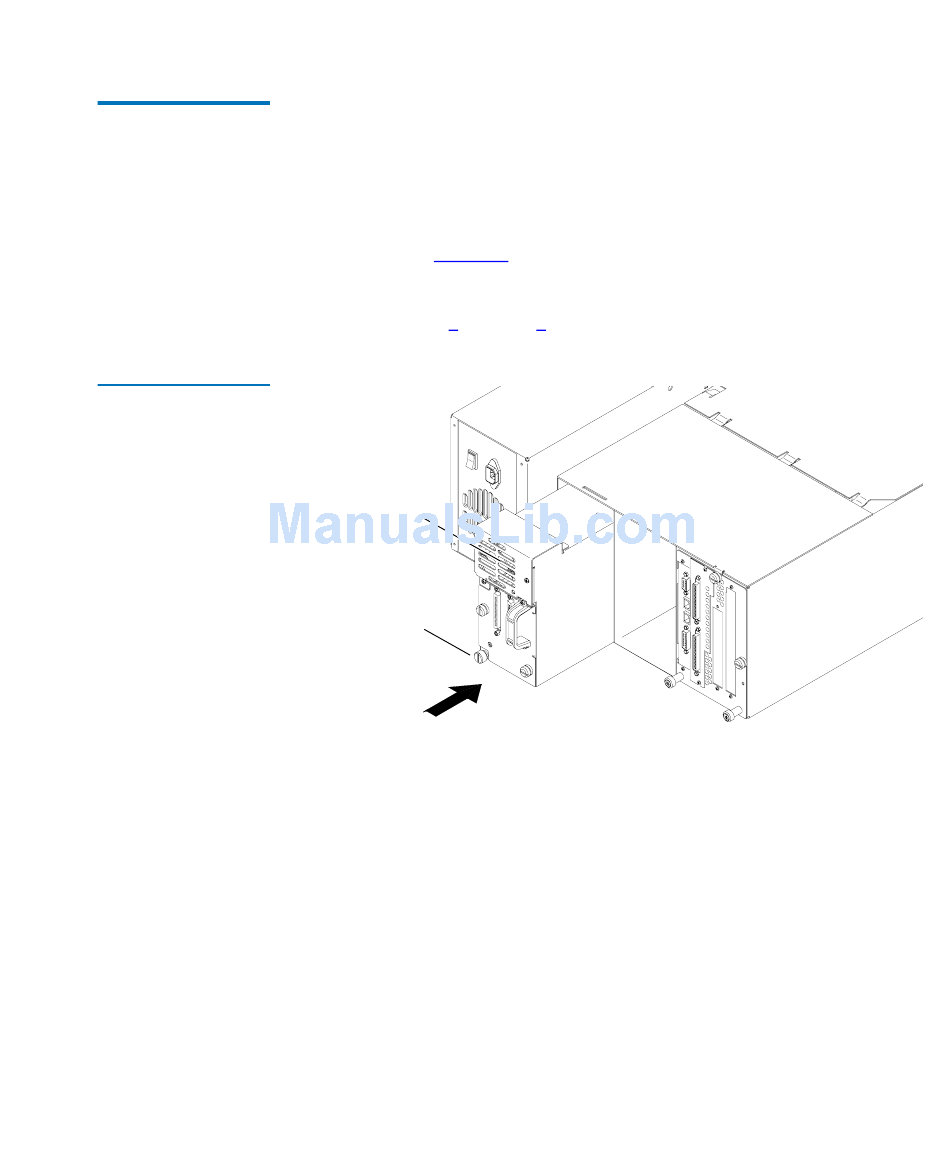

Figure 36 Installing a
Tape Drive in an
ATL M1500 Library
To install tape drives in an ATL M1500:
1 At the back of the library, use a TORX T-20 screwdriver to remove the
cover plate protecting the drive bay in which you will install the tape
drive.
2 Insert the tape drive into the drive bay slowly until the connectors are
seated (see
figure
3 Tighten the tape drive thumbscrew using a flat blade screwdriver.
4 Repeat steps
1
through
Tape drive
Thumbscrew
ATL StackLink™ Installation Instructions
Installing Tape Drives in the Libraries
36).
3
to install another tape drive, if desired.
Chapter 3 Installing the Libraries
51
