Chapter 2 Installing the Rack Mount Shelves
Installing the Shelves

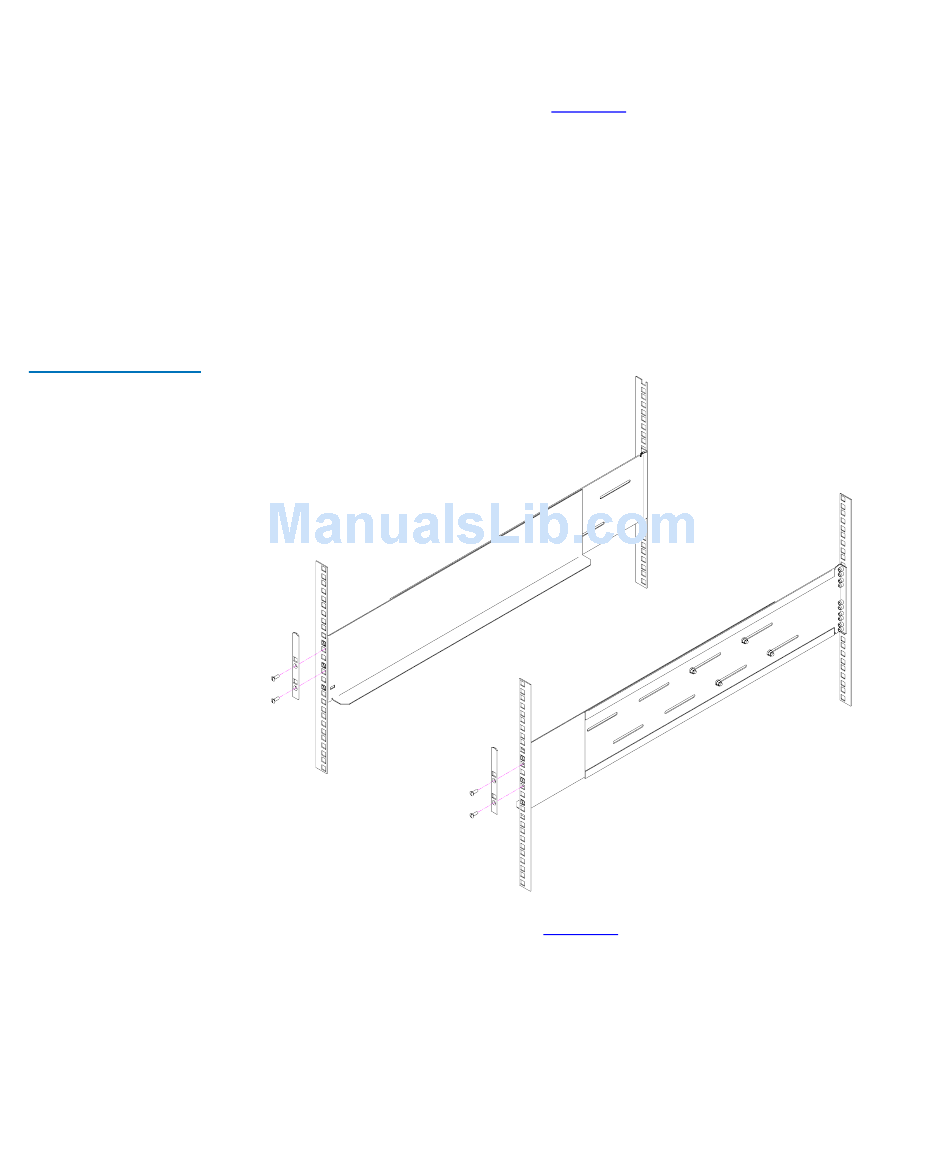

Figure 25 Installing
the Front Shelf
Clamps
36
6 Install the front shelf clamps (see
Position a front shelf clamp (PN 215812) on the front left rack rail.
a
The square holes in the front shelf clamp should be aligned with
the upper two inserts in the front shelf flange.
Secure the front shelf clamp to the rack rail using two M4
b
countersink screws (PN YS42064).
Repeat these steps to install a front shelf clamp on the front right
c
rack rail.
7 Install the rear shelf clamps (see
Position a rear shelf clamp (PN 215201/01) on the rear left rack
a
rail, aligning the square hole with the middle insert in the shelf
flange.
ATL StackLink™ Installation Instructions
