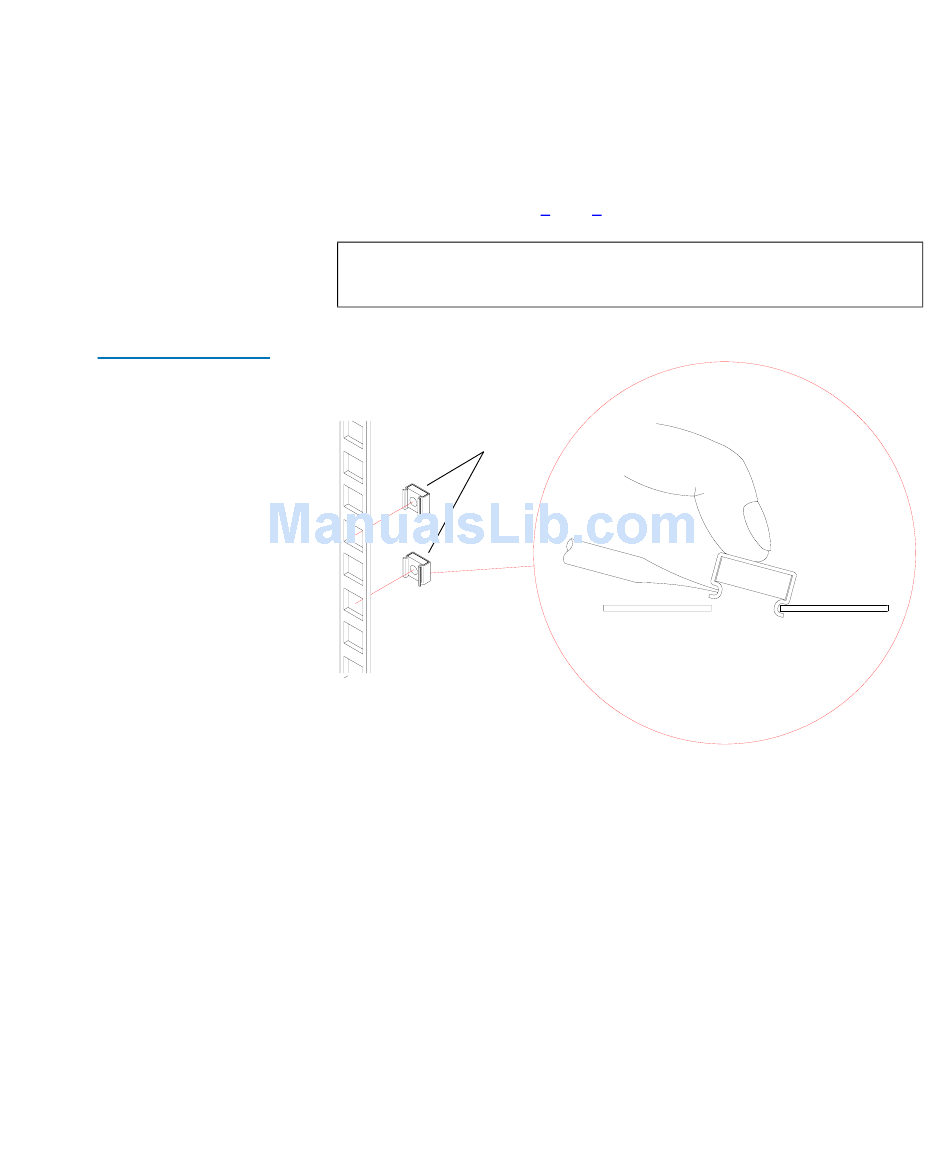

Figure 1 Inserting
Caged Nuts into the
Rack Rails
3 Use a pencil to mark the correct position of the mounting tray
assemblies on the rack rails.
4 If the holes in the rack rails are square (untapped), insert caged nuts
(PN YS42008) into the holes where the mounting tray assemblies will
be installed (see figures
Install the caged nuts on the back of the rack rails, facing
Note:
the interior of the rack.
Caged nuts
ATL StackLink™ Installation Instructions
Chapter 1 Installing the StackLink
Preparing for the StackLink Installation
1
and 2).
Flat blade
screwdriver
5
