Chapter 2 Installing the Rack Mount Shelves
Installing the Shelves

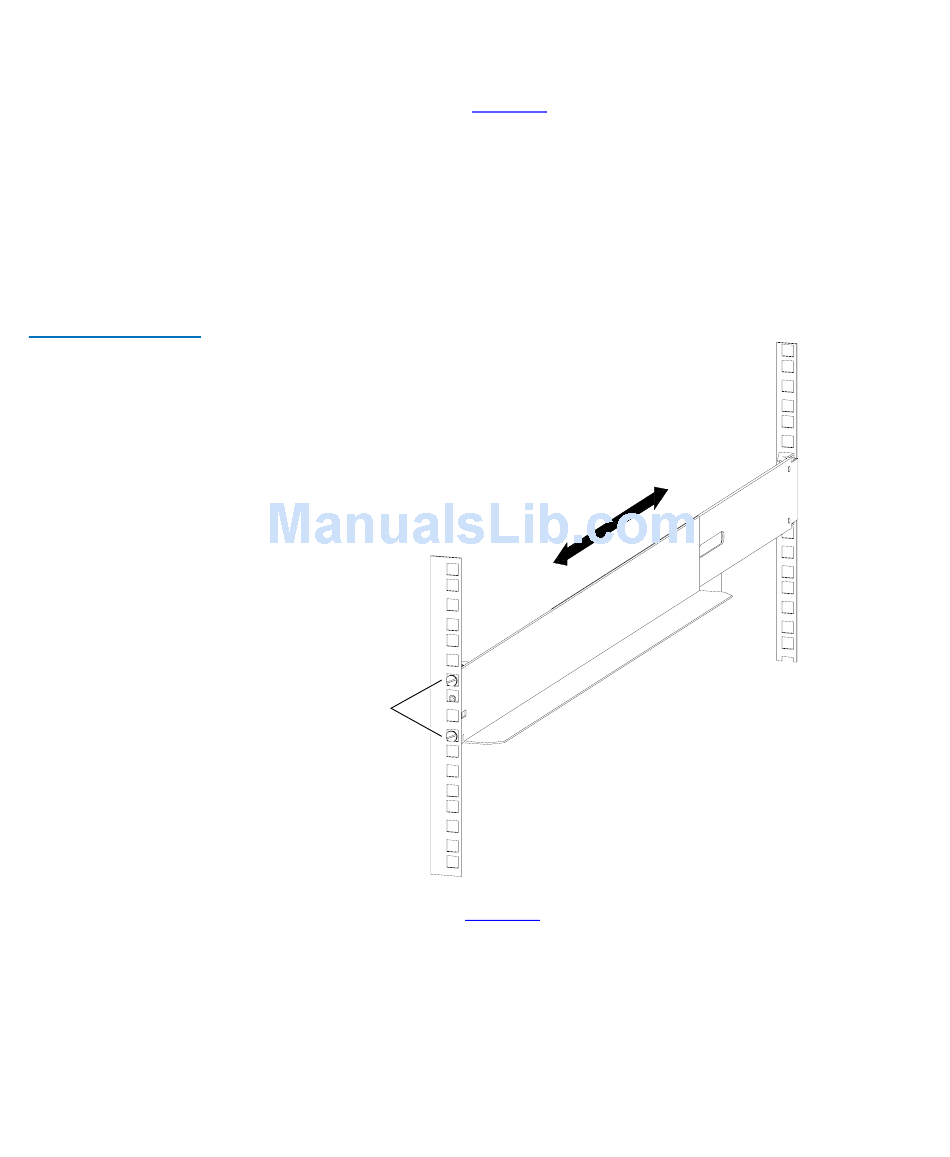

Figure 18 Installing
the Shelf in the Rack
28
4 Install the left shelf (see
With the shelf slightly retracted, position the shelf in the rack at
a
the desired mounting height.
Expand the shelf so that the inserts on each end of the shelf
b
protrude into the holes in the rack rails and hold the shelf in
place.
5 Repeat the above steps to install the right shelf.
Inserts protrude
through the
holes in the rails
6 Secure the shelves (see
Position a shelf clamp (PN 213467) on the front left rack rail.
a
The bottom of the shelf clamp should be flush with the bottom of
the shelf.
Secure the shelf clamp to the rack rail using an M4 countersink
b
screw (PN YS42038).
ATL StackLink™ Installation Instructions
figure
18):
figure
19):
