50-pin Jumper Settings
Jumper Settings

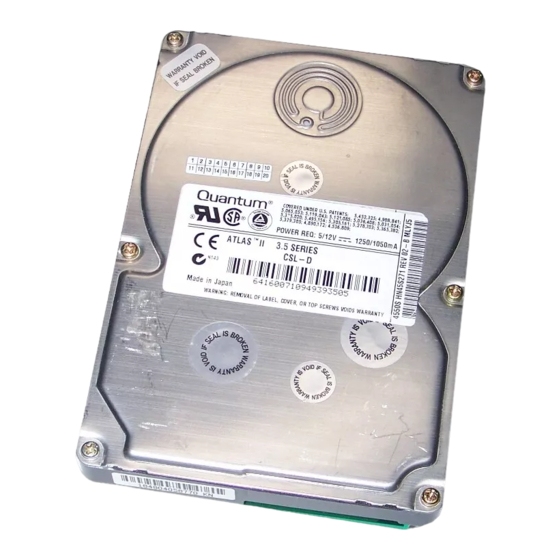

The following describes the jumper options and settings available on the Maxtor® Atlas™ II disk drive.
Maxtor Atlas II was developed by Quantum Corporation prior to its merger with Maxtor.
Termination Enable (TE)
Enable termination
Disable termination
1 of 8
Atlas II
Jumper Settings

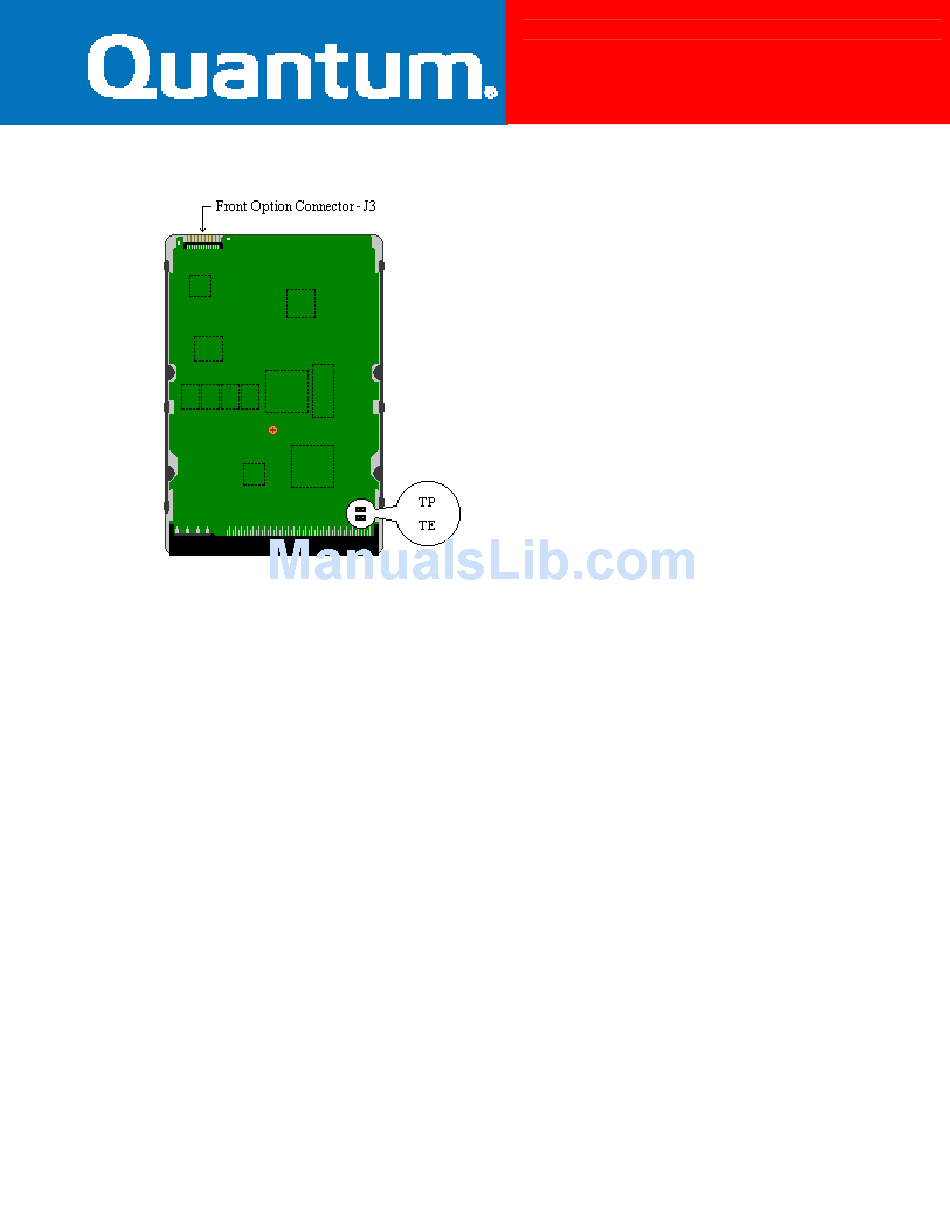

TE jumper on
TE jumper off
