Chapter 2 Installing the Rack Mount Shelves
Determining the Position of the Shelves in the Rack

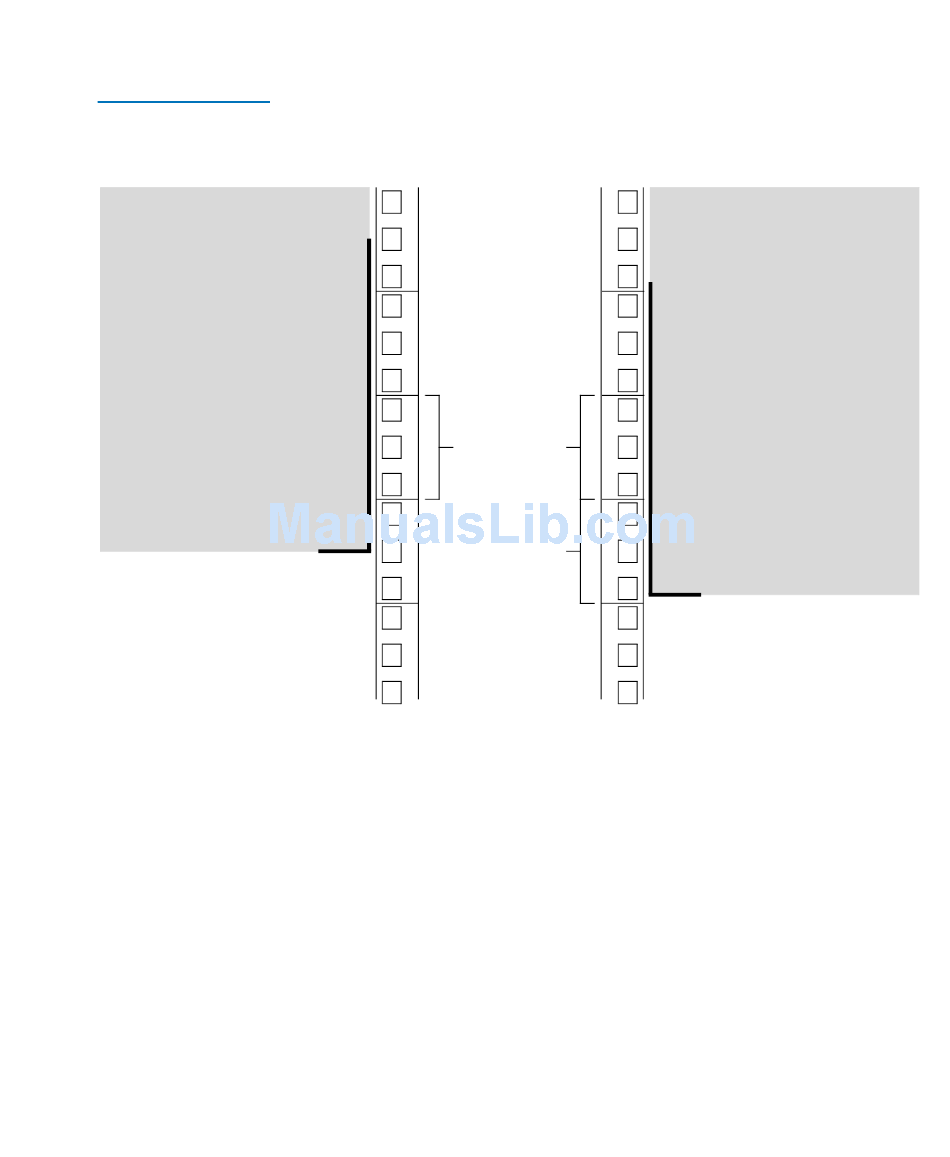

Figure 14 Example of
Full and Half U
Mounting Positions
3 equally
spaced holes
equals 1 U
1 U
In the half U position, the bottom of
the mounting bracket aligns with the
center of the middle hole in the
In the full U position, the bottom of the
corresponding U. This position can be
mounting bracket aligns with the
used for ATL M2500 rack mount
bottom of the corresponding U. This
shelves only.
position can be used for either
ATL M1500 or ATL M2500 rack
mount shelves
ATL StackLink™ Installation Instructions
21
