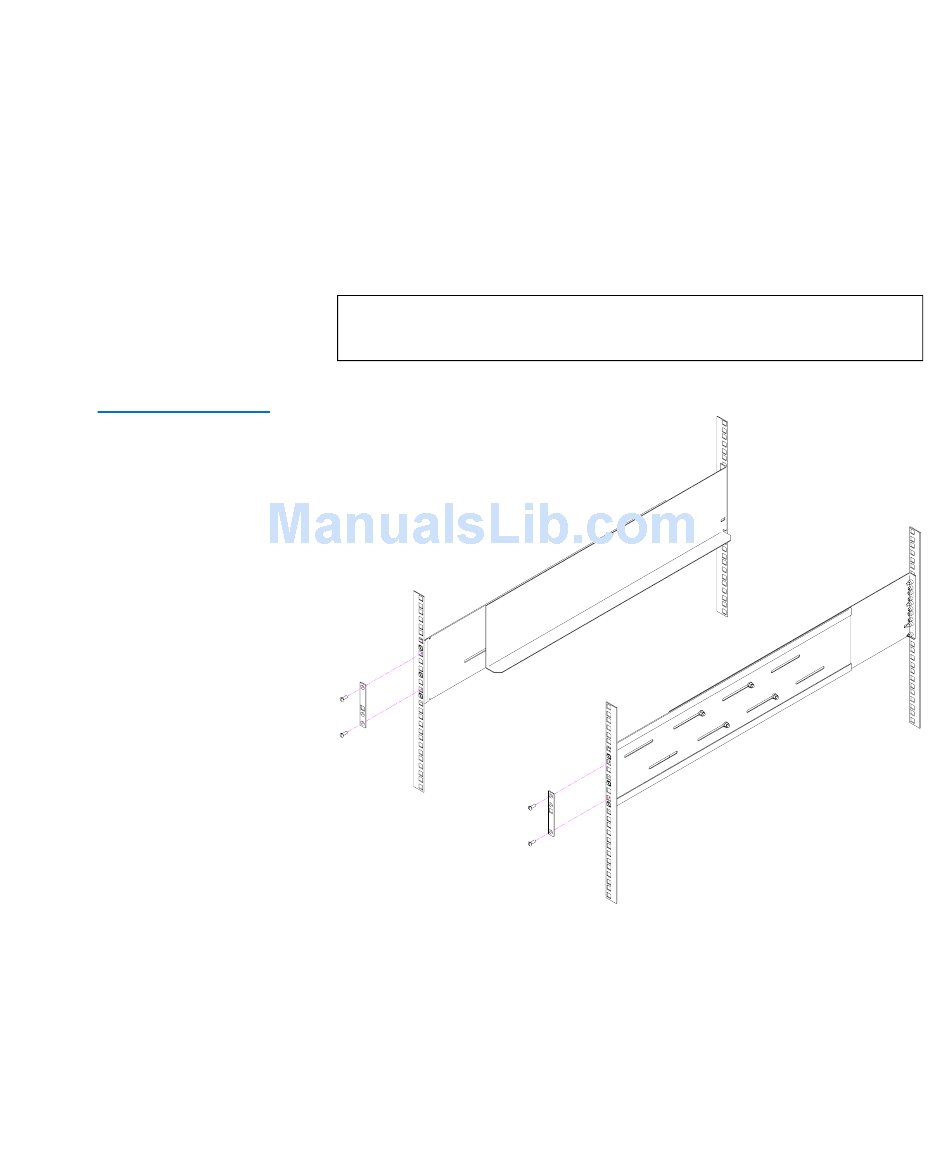

Figure 26 Installing
the Rear Shelf Clamps
Verify that two of the round holes line up with holes in the rack
b
mount shelf. If two of the holes do not line up, rotate the clamp
180 degrees.
Secure the rear shelf clamp to the shelf using two M4 countersink
c
screws (PN YS42064).
Repeat these steps to install a rear shelf clamp on the rear right
d
rack rail.
The left and right rear shelf clamps will be oriented
Note:
differently from one another.
ATL StackLink™ Installation Instructions
Chapter 2 Installing the Rack Mount Shelves
Installing the Shelves
37
