Chapter 4 Cabling the Multiple Library Stack
Power Cabling

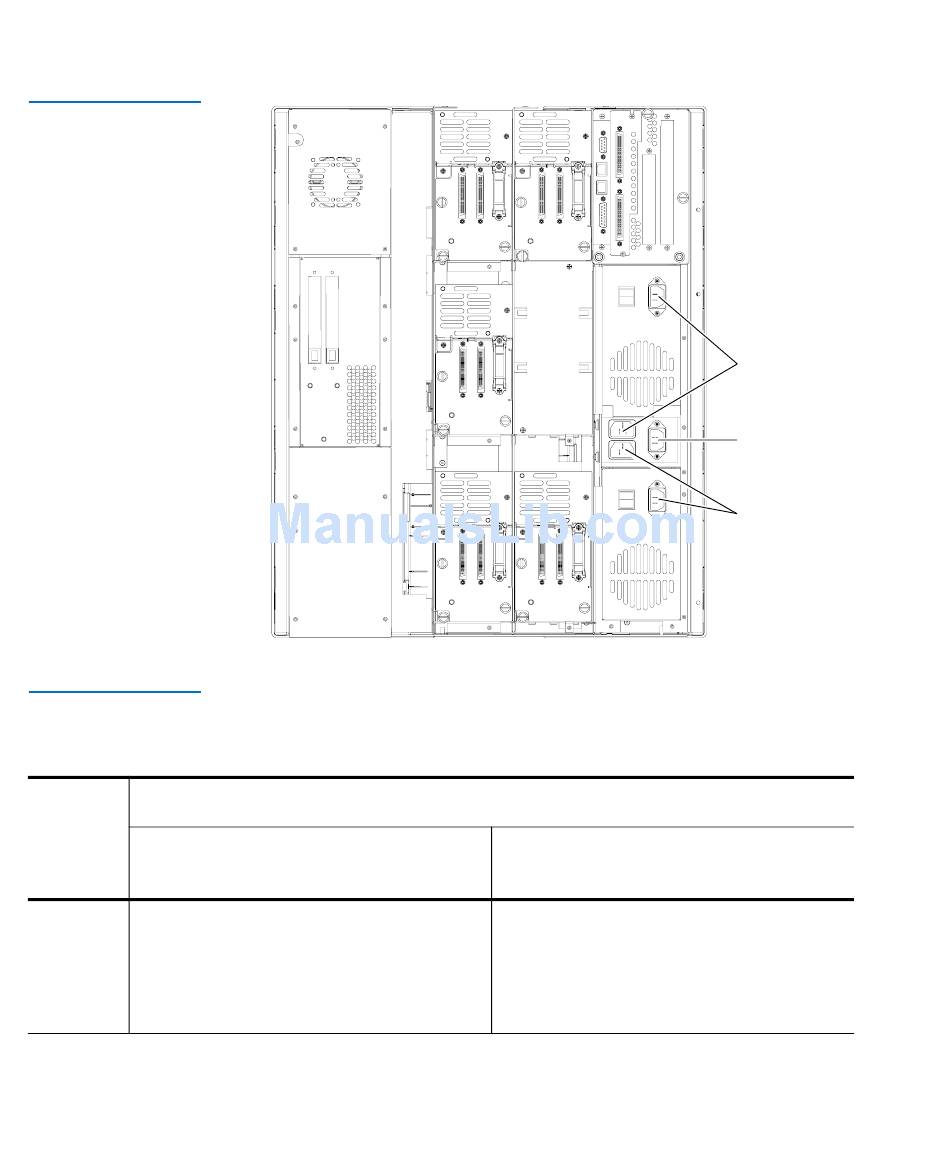

Figure 51 Power Inlet

Table 8 ATL M2500
AC Distribution Unit
Requirements
Distribution Unit Requirements
# of
Library
200-240V 50-60Hz supply voltage
Modules
(Europe & international, etc.)
1
Connect the library to an AC wall outlet
rated minimum 10A, minimum
1.00mm
10A plug. Must be three wire grounding
plug and wall outlet.
76
2
<HAR> cord with minimum
ATL StackLink™ Installation Instructions
100-120V 50-60Hz supply voltage
(USA, Canada, Japan, etc.)
Connect the library to one UL listed AC
distribution unit rated 15A or 20A, with
a minimum 14AWG 3 wire cord, and a
15A or 20A plug. Must be three wire
grounding plug and wall outlet.
Connect these
using a short
power cable
Connect this
inlet to the wall
outlet or AC
distribution unit
Connect these
using a short
power cable
