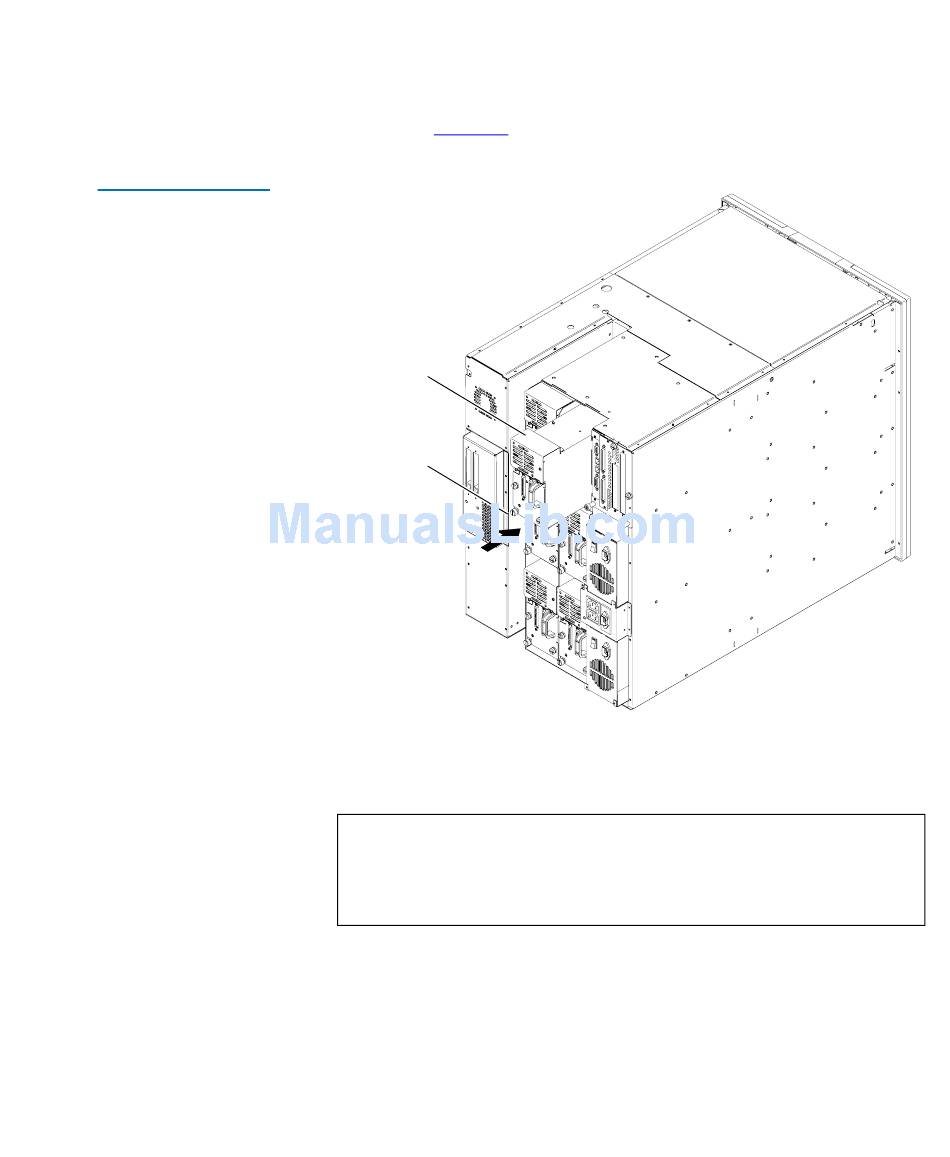

Figure 38 Installing a
Tape Drive in an
ATL M2500 Library
2 Insert the tape drive into the drive bay slowly until the connectors are
seated (see
figure
38).
Tape drive
Thumbscrew
3 Tighten the tape drive thumbscrew using a flat blade screwdriver.
4 Install the appropriate cover plate in the space above the drive.
Two cover plates were provided with the tape drive. The
Note:
smaller plate (215982) is used with tape drives on the
middle level of the library; the larger plate (215981) is used
with tape drives on the bottom level of the library.
ATL StackLink™ Installation Instructions
Chapter 3 Installing the Libraries
Installing Tape Drives in the Libraries
53
