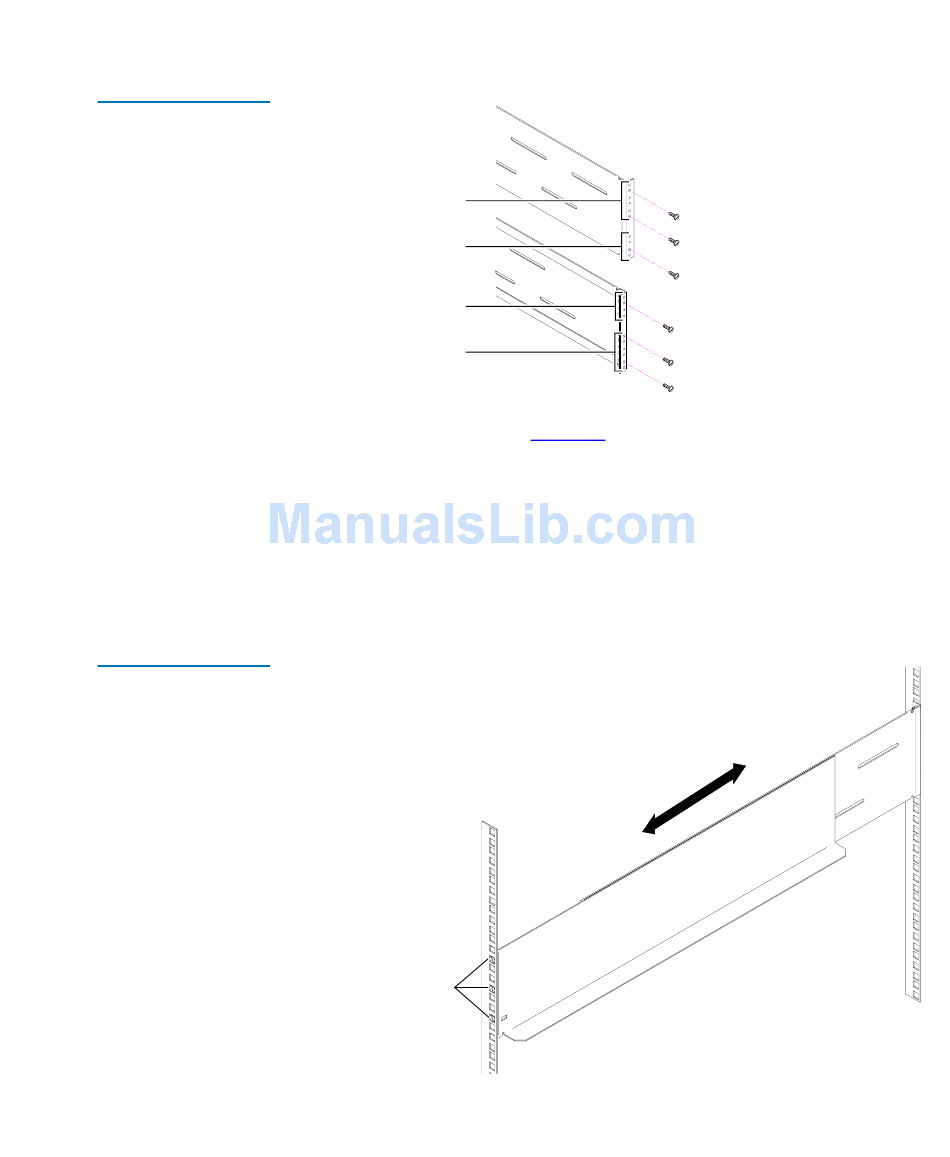

Figure 23 Installing
Inserts at the Rear of
the Shelves
Figure 24 Installing
the Shelves
Group of 6 holes
Group of 4 holes
Group of 4 holes
Group of 6 holes
5 Install the shelves (see
With the shelf slightly retracted, position the shelf in the rack at
a
the desired mounting height.
Expand the shelf so that the inserts on each end of the shelf
b
protrude into the holes in the rack rails and hold the shelf in
place.
Repeat these steps to install the remaining shelf.
c
Inserts protrude
through the
holes in the rails
ATL StackLink™ Installation Instructions
Chapter 2 Installing the Rack Mount Shelves
2
6
9
9
6
2
figure 24):
Installing the Shelves
