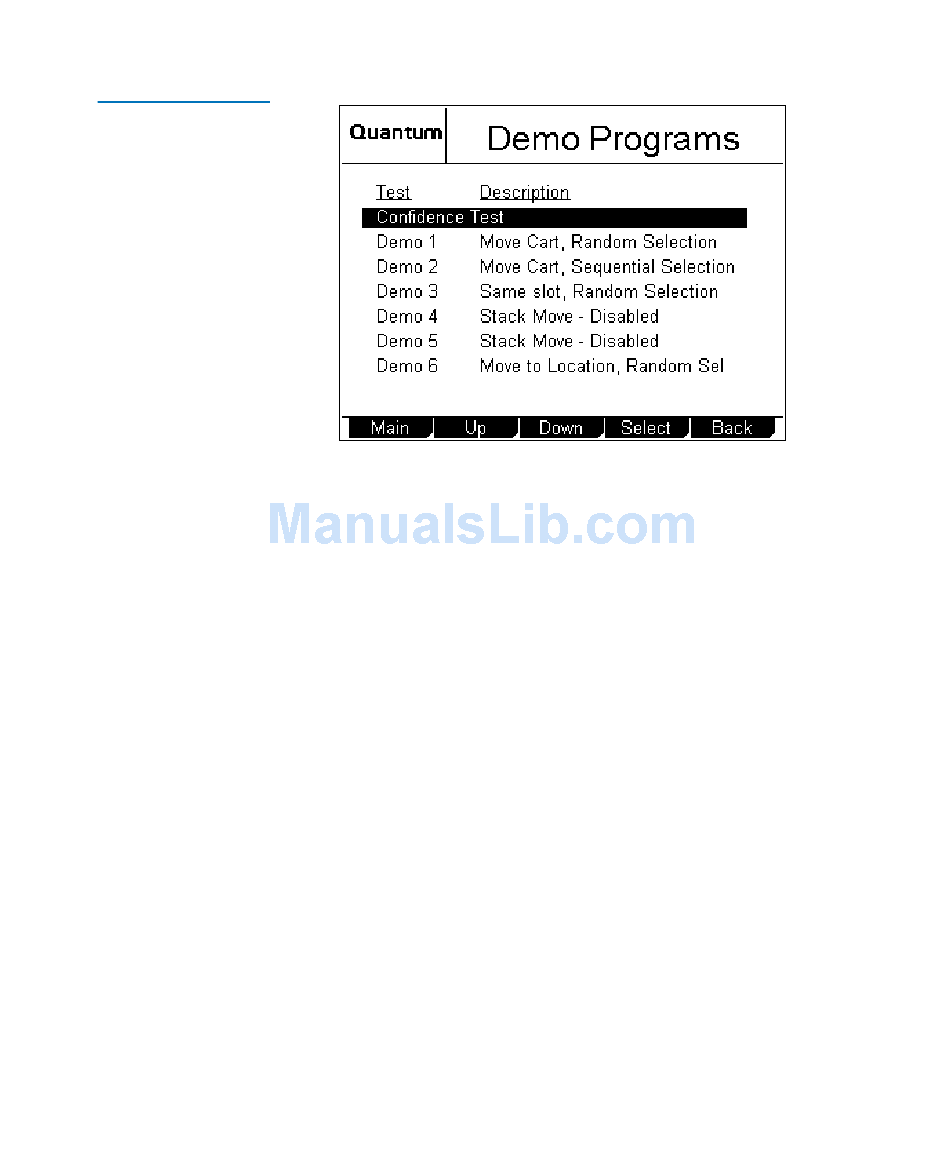

Figure 60 Demo
Programs Screen
5 Press the
or
Up
Down
6 Press
.
Select
The
program starts. The program moves the data cartridge
Demo 5
randomly between levels until you stop the program. It is
recommended that you allow the program to run for five times the
number of levels in the library; for example, a ten level stack should
be run for at least 50 cycles.
7 Ensure that all levels are accessed by observing the cartridges moving
from level to level. If not, re-check the interlibrary cabling.
8 When the program has run successfully for the recommended
number of cycles, press
The GUI stops when the current cycle is completed.
The StackLink installation is now complete.
ATL StackLink™ Installation Instructions
Chapter 5 Completing the Installation
buttons to select
Demo 5
to end the program.
Stop
Testing the Library Robotics
.
87
